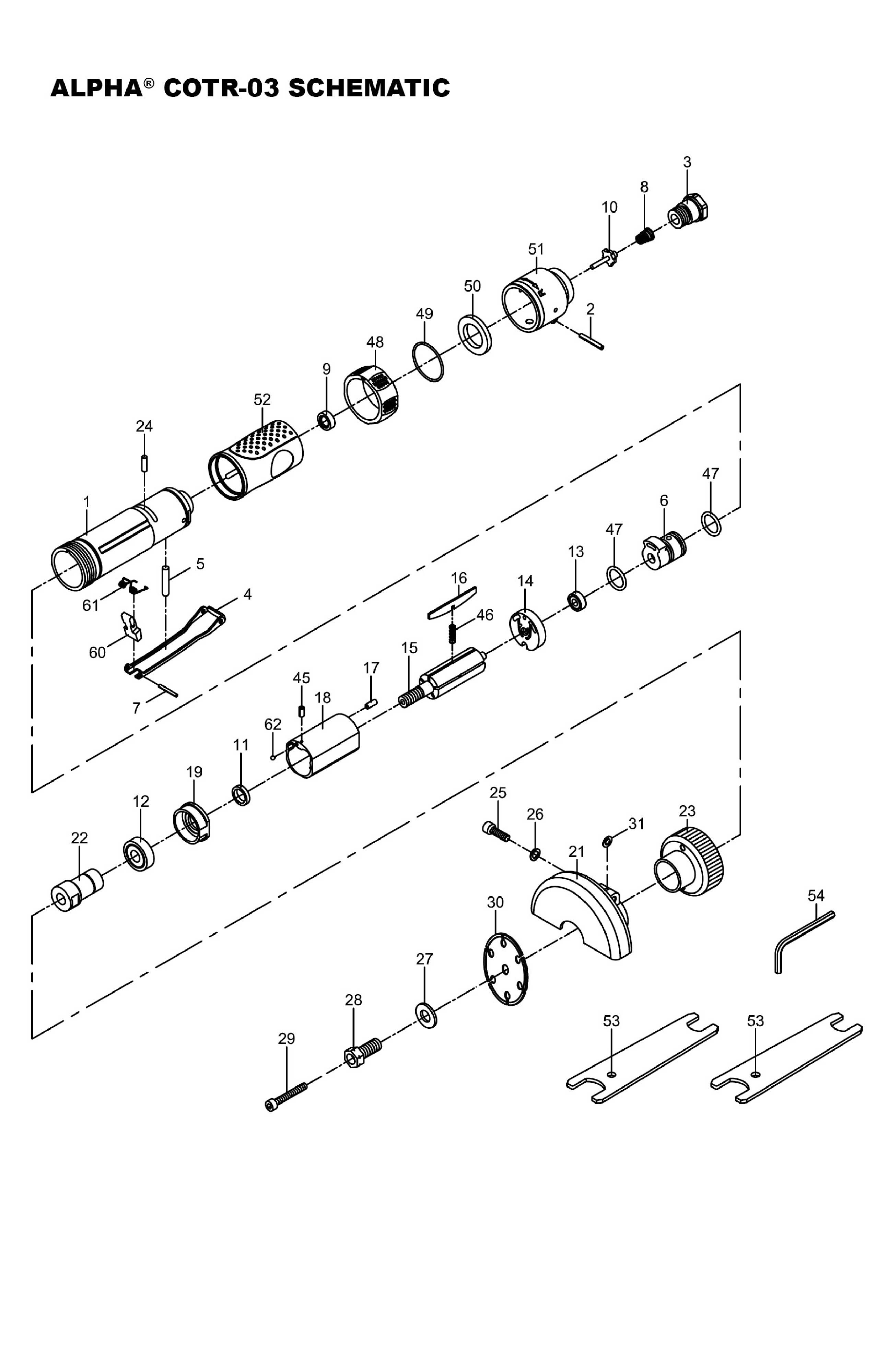

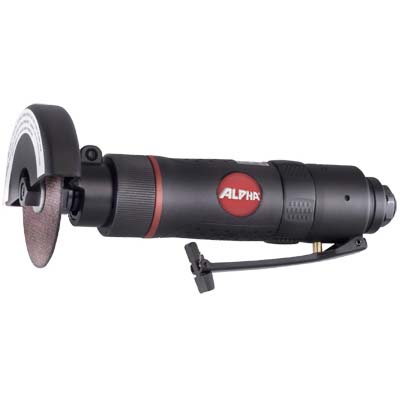

COTR-03 Spare Parts

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	3010-0001	1	Motor Housing	37.11
2	3010-0002	1	Spring Pin (3x22)	0.81
3	3010-0003	1	Air Inlet	7.72
4	3010-0004	1	Throttle Lever	6.32
5	3010-0005	1	Pin	1.65
6	3010-0006	1	Reverse Valve	14.08
7	3010-0007	1	Spring Pin (2x16)	0.87
8	3010-0008	1	Spring	0.81
9	3010-0009	1	Rubber Spacer	3.53
10	3010-0010	1	Valve Stem	3.59
11	3010-0011	1	Rotor Bush	1.47
12	3010-0012	1	Ball Bearing (6000zz)	10.00
13	3010-0013	1	Ball Bearing (696zz)	7.63
14	3010-0014	1	Rear End Plate	12.97
15	3010-0015	1	Rotor	40.75
16	3010-0016	1	Rotor Blade (5)	15.92
17	3010-0017	1	Spring Pin (2.5x6)	0.91
18	3010-0018	1	Cylinder	43.16
19	3010-0019	1	Front End Plate	15.62
21	3010-0020	1	Disc Cover	15.59
22	3010-0021	1	Spindle	14.69
23	3010-0022	1	Clamp Nut	55.22
24	3010-0023	1	Pin (4x13.8)	0.81
25	3010-0024	1	Screw (M5x16)	1.06
26	3010-0025	1	Spring Washer (M5)	0.86
27	3010-0026	1	Washer (3/8")	0.88
28	3010-0027	1	Screw	4.51
29	3010-0028	1	Screw (L M5x35)	1.63
30	3010-0029	1	Cutting Wheel	6.66
31	3010-0030	1	Washer (M5)	0.91
45	3010-0031	1	Spring Pin (2x4)	0.90
46	3010-0032	1	Spring (5)	2.51
47	3010-0033	1	O‐Ring (2) (15.8x2.4)	1.06
48	3010-0034	1	Reverse Valve Knob	2.64
49	3010-0035	1	O‐Ring (31x1.5)	1.08
50	3010-0036	1	Muffler Material	CALL
51	3010-0037	1	Rear Cover	5.63
52	3010-0038	1	Rubber Grip	11.51
53	3010-0039	1	Double Ended Spanner (2) (14-19)	7.06
54	3010-0040	1	Hex. Key Wrench (4 mm)	0.98
60	3010-0041	1	Safety Bar	2.94
61	3010-0042	1	Spring	0.54
62	3010-0043	1	Steel Ball (3/32")	0.56

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	3010-0001	1	Motor Housing	37.11
2	3010-0002	1	Spring Pin (3x22)	0.81
3	3010-0003	1	Air Inlet	7.72
4	3010-0004	1	Throttle Lever	6.32
5	3010-0005	1	Pin	1.65
6	3010-0006	1	Reverse Valve	14.08
7	3010-0007	1	Spring Pin (2x16)	0.87
8	3010-0008	1	Spring	0.81
9	3010-0009	1	Rubber Spacer	3.53
10	3010-0010	1	Valve Stem	3.59
11	3010-0011	1	Rotor Bush	1.47
12	3010-0012	1	Ball Bearing (6000zz)	10.00
13	3010-0013	1	Ball Bearing (696zz)	7.63
14	3010-0014	1	Rear End Plate	12.97
15	3010-0015	1	Rotor	40.75
16	3010-0016	1	Rotor Blade (5)	15.92
17	3010-0017	1	Spring Pin (2.5x6)	0.91
18	3010-0018	1	Cylinder	43.16
19	3010-0019	1	Front End Plate	15.62
21	3010-0020	1	Disc Cover	15.59
22	3010-0021	1	Spindle	14.69
23	3010-0022	1	Clamp Nut	55.22
24	3010-0023	1	Pin (4x13.8)	0.81
25	3010-0024	1	Screw (M5x16)	1.06
26	3010-0025	1	Spring Washer (M5)	0.86
27	3010-0026	1	Washer (3/8")	0.88
28	3010-0027	1	Screw	4.51
29	3010-0028	1	Screw (L M5x35)	1.63
30	3010-0029	1	Cutting Wheel	6.66
31	3010-0030	1	Washer (M5)	0.91
45	3010-0031	1	Spring Pin (2x4)	0.90
46	3010-0032	1	Spring (5)	2.51
47	3010-0033	1	O‐Ring (2) (15.8x2.4)	1.06
48	3010-0034	1	Reverse Valve Knob	2.64
49	3010-0035	1	O‐Ring (31x1.5)	1.08
50	3010-0036	1	Muffler Material	CALL
51	3010-0037	1	Rear Cover	5.63
52	3010-0038	1	Rubber Grip	11.51
53	3010-0039	1	Double Ended Spanner (2) (14-19)	7.06
54	3010-0040	1	Hex. Key Wrench (4 mm)	0.98
60	3010-0041	1	Safety Bar	2.94
61	3010-0042	1	Spring	0.54
62	3010-0043	1	Steel Ball (3/32")	0.56
