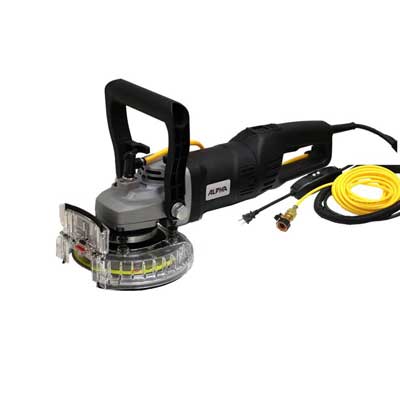

ECG 7" Grinding Kit

Complete Wet/Dry Grinding Solution

•
•

•
•
•
•
•

Features

• Dual Application Design For Wet Or Dry Grinding
• Connects To Hepa Vacuum For Dust Extraction (Dry Use)
• Contains Slurry And Minimizes Overspray (Wet Use)
• Clear Shroud For Improved Visibility
• Less Mess, Less Stress, Better Results

Videos

ECG Grinding Kit 7"

Find a dealer

• Specifications
• Description
• Documentation
• FAQS
• Additional
• Buy Now
• X

Product Details Specification Data Model ECG-900 Rating 110 Volts Amperage 15A Power Supply Single-phase AC, 50,60Hz No Load Speed (min-1) 6,200 RPM Weight 12.3 lbs (5.6 kgs) Spindle 5/8”-11 Max. Cutting Disc Diameter 9" (230mm) Max. Cutting Depth 3-3/8" (87mm) Cord 15ft (4.5m) (14 AWG) Plug Type A (110V)

Equipment Included Item Quantity Ecoguard G7 (Part No. ECOGRDG7) 1 Spike Disc 7" #35 5/8"-11 (Part No. VCS703H) 1 Flexible Connector Hose 54" (Part No. 500073) 1 Carbon Brush (2pc Set) 1 Hex. Wrench (6mm) 1 C-Handle 1 Side Handle 1 Ground Fault Circuit Interrupter (GFCI) 1 Water Hose Assembly (15ft / 4.5m) 1 Quick Connect Shut-Off Valve 1 Memory Wrap (3ft / 1m) 1

Buy Now

PART NO. DESCRIPTION PRICE (USD) WARNING BUY NOW 5480-5190 ECG Grinding Kit 7" 742.71 WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. ECG-900 ECG-900 Wet HS Grinder 9" 110V 5/8"-11 548.25 WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. ECOGRDG7 Ecoguard G7 141.70 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. ADVERTENCIA: Cáncer y Daño Reproductivo - - www.P65Warnings.ca.gov. VCS703H Spike Disc 7" #35 5/8"-11 100.01 WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. 500073 Flexible Connector Hose 54" 19.32 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. ADVERTENCIA: Cáncer y Daño Reproductivo - - www.P65Warnings.ca.gov.

SPECIFICATIONS

Product Details Specification Data Model ECG-900 Rating 110 Volts Amperage 15A Power Supply Single-phase AC, 50,60Hz No Load Speed (min-1) 6,200 RPM Weight 12.3 lbs (5.6 kgs) Spindle 5/8”-11 Max. Cutting Disc Diameter 9" (230mm) Max. Cutting Depth 3-3/8" (87mm) Cord 15ft (4.5m) (14 AWG) Plug Type A (110V)

Equipment Included Item Quantity Ecoguard G7 (Part No. ECOGRDG7) 1 Spike Disc 7" #35 5/8"-11 (Part No. VCS703H) 1 Flexible Connector Hose 54" (Part No. 500073) 1 Carbon Brush (2pc Set) 1 Hex. Wrench (6mm) 1 C-Handle 1 Side Handle 1 Ground Fault Circuit Interrupter (GFCI) 1 Water Hose Assembly (15ft / 4.5m) 1 Quick Connect Shut-Off Valve 1 Memory Wrap (3ft / 1m) 1

DESCRIPTION

DOCUMENTATION

Flyer :

ECG 7" Grinding Kit Flyer

FAQS

Currently, there are no FAQs available for this product.....

Additional

PartNo Weight (Packaged) UPS Code Package Dimensions Commodity Code Country Of Origin 5480-5190 749173661860 See Individuals See Individuals ECG-900 22.20 749173430367 23in x 11in x 8in 8467.29.0035 China ECOGRDG7 3.30 749173661617 9in x 4in x 10.5in 8467.99.0190 Japan VCS703H 1.20 749173670336 11in x 8.5in x 1.5in 6804.21.0000 Korea 500073 1.00 749173661549 17in x 14in x 4in 8466.91.0000 USA
