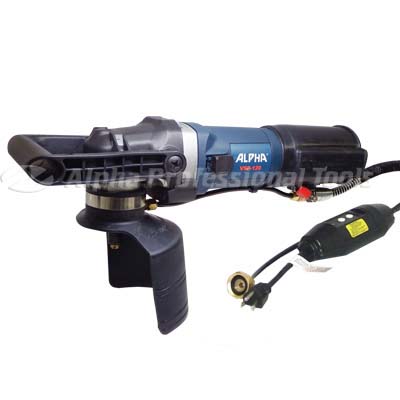

VSP-120 Spare Parts (Discontinued)

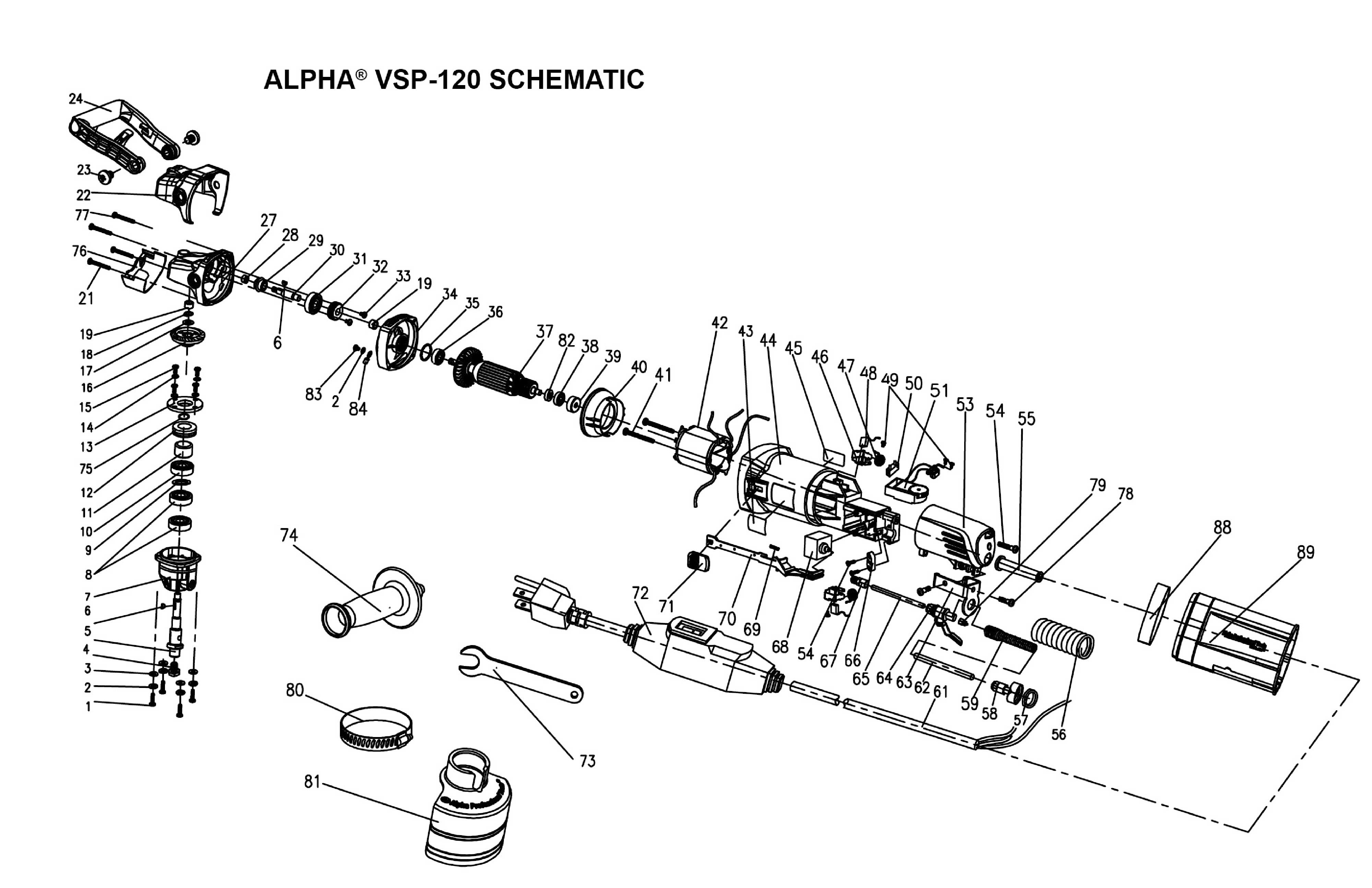

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	210001	1	Screw M4x14	0.35
2	210002	1	Spring Washer 4	0.35
3	210003	1	Plain Washer 4	0.29
4	210004	1	Shower Bolt	8.35
5	210109	1	Output Shaft (5/8"-11 UNC)	22.60
6	210006	1	Key (3x10)	1.85
7	210090	1	Gear Case Cover	9.80
8	210008	1	Oil lip seal B16x28x7D	10.68
9	210009	1	Bearing Washer	1.39
10	210010	1	Ball Bearing 6201	20.10
11	210011	1	Gear Washer	2.54
12	210012	1	Thrust Bearing 15x28x6	21.11
13	210013	1	Bearing Clamp	5.34
14	210014	1	Spring Washer 5	0.24
15	210015	1	Screw M5x16	0.38
16	210016	1	Gear	21.79
17	210017	1	Wave Spring Lock Washer 10	0.29
18	210018	1	C-clip for Shaft 10	0.29
19	210019	1	Oil-impregnated Bearing 8x12x8	2.66
21	210021	1	Self-tapping Screw 4.2x45	0.61
22	210022	1	Case Plastic Cover	6.14
23	210023	1	Screw M10x20	0.85
24	210024	1	C-Handle	40.54
27	210027	1	Gear Case	13.94
28	210028	1	Anti-loose Nut M6	0.70
29	210029	1	Pinion Z3	20.93
30	210030	1	Transmitting Shaft	2.66
31	210031	1	Ball Bearing 6200	19.73
32	210032	1	Bevel Gear Z2	23.35
33	210033	1	Screw M4x8	0.29
34	210034	1	Bearing Retainer	8.52
35	210035	1	O-Ring (21.2x1.8)	0.70
36	210036	1	Ball Bearing 608	14.84
37	210102	1	Armature 120V	105.96
38	210038	1	Ball Bearing 607	14.22
39	210039	1	Rubber Bearing Seat	4.50
41	210041	1	Self-tapping Screw 4.2x70	0.50
42	210042	1	Field Coil 120V	64.64
43	210099	1	Brand Label	0.97
44	210091	1	Field Coil Case	17.48
45	210092	1	Data Label	0.97
46	210046	1	Carbon Brush Holder	6.38
47	210047	1	Coil Spring	1.61
48	210048	1	Carbon Brush 120V Set	15.97
49	210049	1	Self-tapping Screw 2.9x8	0.29
50	210094	1	Terminal Block	1.24
51	210093	1	Speed Pot w/Feed Back Sensor 120V	68.71
53	210053	1	Rear Cover	9.42
54	210054	1	Self-tapping Screw 4.2x14	0.29
55	210055	1	Cord Jacket	1.40
56	210056	1	Twist Strip	1.63
57	210057	1	Rubber Washer	0.89
58	210058	1	Garden Hose Adapter	18.11
59	210059	1	Spring	1.02
61	210061	1	Power Supply Cord 120V	32.15
62	133229	1	Water Hose 8mm ODx10ft (3m)	15.90
63	210063	1	Water Valve Bracket	2.90
64	210064	1	Water Valve Assembly	14.71
65	210065	1	Water Hose 6mm ODx8in (20cm)	1.40
66	210066	1	Cord Clamp	0.48
67	210067	1	Outlet Tap	4.03
68	210068	1	Switch	8.88
69	210069	1	Back Moving Spring	0.23
70	210070	1	Switch Push Lever	1.13
71	210071	1	Switch Push Button	0.89
72	210072	1	GFCI 120V	110.17
73	210110	1	Double Open End Wrench (17mm-19mm)	17.12
74	210074	1	Side Handle	15.36
75	210075	1	O-Ring (15x2.65)	0.48
76	210076	1	Dash Panel	2.66
77	210077	1	Self-tapping Screw 4.2x40	0.68
78	210078	1	Self-tapping Screw 4.2x10	0.61
79	210079	1	Water Valve Tap	0.59
80	210088	1	Band Clamp 40-63	6.68
81	210089	1	Splash Guard	29.80
82	210095	1	Magnetic Ring	10.43
83	210096	1	Screw M4x8	0.18
84	210097	1	Terminal connector	0.23
88	210106	1	Wind Shield	3.24
89	210107	1	Ventilation Cap	18.01
999	210087	1	BMC (Blow Mold Case) for VSP-120/WDP-120	37.61

SPARE PARTS

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	210001	1	Screw M4x14	0.35
2	210002	1	Spring Washer 4	0.35
3	210003	1	Plain Washer 4	0.29
4	210004	1	Shower Bolt	8.35
5	210109	1	Output Shaft (5/8"-11 UNC)	22.60
6	210006	1	Key (3x10)	1.85
7	210090	1	Gear Case Cover	9.80
8	210008	1	Oil lip seal B16x28x7D	10.68
9	210009	1	Bearing Washer	1.39
10	210010	1	Ball Bearing 6201	20.10
11	210011	1	Gear Washer	2.54
12	210012	1	Thrust Bearing 15x28x6	21.11
13	210013	1	Bearing Clamp	5.34
14	210014	1	Spring Washer 5	0.24
15	210015	1	Screw M5x16	0.38
16	210016	1	Gear	21.79
17	210017	1	Wave Spring Lock Washer 10	0.29
18	210018	1	C-clip for Shaft 10	0.29
19	210019	1	Oil-impregnated Bearing 8x12x8	2.66
21	210021	1	Self-tapping Screw 4.2x45	0.61
22	210022	1	Case Plastic Cover	6.14
23	210023	1	Screw M10x20	0.85
24	210024	1	C-Handle	40.54
27	210027	1	Gear Case	13.94
28	210028	1	Anti-loose Nut M6	0.70
29	210029	1	Pinion Z3	20.93
30	210030	1	Transmitting Shaft	2.66
31	210031	1	Ball Bearing 6200	19.73
32	210032	1	Bevel Gear Z2	23.35
33	210033	1	Screw M4x8	0.29
34	210034	1	Bearing Retainer	8.52
35	210035	1	O-Ring (21.2x1.8)	0.70
36	210036	1	Ball Bearing 608	14.84
37	210102	1	Armature 120V	105.96
38	210038	1	Ball Bearing 607	14.22
39	210039	1	Rubber Bearing Seat	4.50
41	210041	1	Self-tapping Screw 4.2x70	0.50
42	210042	1	Field Coil 120V	64.64
43	210099	1	Brand Label	0.97
44	210091	1	Field Coil Case	17.48
45	210092	1	Data Label	0.97
46	210046	1	Carbon Brush Holder	6.38
47	210047	1	Coil Spring	1.61
48	210048	1	Carbon Brush 120V Set	15.97
49	210049	1	Self-tapping Screw 2.9x8	0.29
50	210094	1	Terminal Block	1.24
51	210093	1	Speed Pot w/Feed Back Sensor 120V	68.71
53	210053	1	Rear Cover	9.42
54	210054	1	Self-tapping Screw 4.2x14	0.29
55	210055	1	Cord Jacket	1.40
56	210056	1	Twist Strip	1.63
57	210057	1	Rubber Washer	0.89
58	210058	1	Garden Hose Adapter	18.11
59	210059	1	Spring	1.02
61	210061	1	Power Supply Cord 120V	32.15
62	133229	1	Water Hose 8mm ODx10ft (3m)	15.90
63	210063	1	Water Valve Bracket	2.90
64	210064	1	Water Valve Assembly	14.71
65	210065	1	Water Hose 6mm ODx8in (20cm)	1.40
66	210066	1	Cord Clamp	0.48
67	210067	1	Outlet Tap	4.03
68	210068	1	Switch	8.88
69	210069	1	Back Moving Spring	0.23
70	210070	1	Switch Push Lever	1.13
71	210071	1	Switch Push Button	0.89
72	210072	1	GFCI 120V	110.17
73	210110	1	Double Open End Wrench (17mm-19mm)	17.12
74	210074	1	Side Handle	15.36
75	210075	1	O-Ring (15x2.65)	0.48
76	210076	1	Dash Panel	2.66
77	210077	1	Self-tapping Screw 4.2x40	0.68
78	210078	1	Self-tapping Screw 4.2x10	0.61
79	210079	1	Water Valve Tap	0.59
80	210088	1	Band Clamp 40-63	6.68
81	210089	1	Splash Guard	29.80
82	210095	1	Magnetic Ring	10.43
83	210096	1	Screw M4x8	0.18
84	210097	1	Terminal connector	0.23
88	210106	1	Wind Shield	3.24
89	210107	1	Ventilation Cap	18.01
999	210087	1	BMC (Blow Mold Case) for VSP-120/WDP-120	37.61

DOCUMENTATION

Manual :	VSP-120_manual.pdf
Parts-Schematic :	VSP-120_Parts-Schematic.pdf
