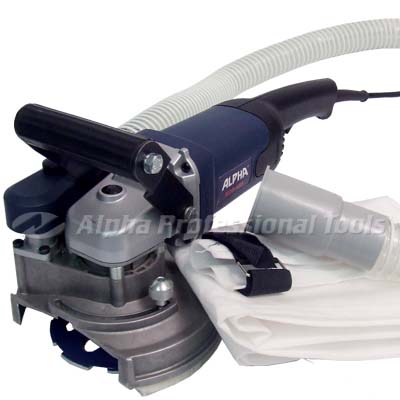

ECG-125 Spare Parts (Discontinued)

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	801373	1	Breaker Assembly (w/case) 110V	14.72
1	801374	1	Breaker Assembly (w/case) 220V	14.72
2	801324	1	Power Cord 110V	23.19
2	801350	1	Power Cord 220V	23.19
3	801359	1	Screw M8x15	0.55
4	801360	1	Lock Washer M8	0.13
5	801355	1	Handle Bracket -Left	1.96
6	801358	1	Handle Cover	2.36
8	801356	1	Handle Bracket -Right	1.96
9	801357	1	Handle Tube	10.51
10	133028	1	Bearing Sleeve	1.38
11	133025	1	Bearing 608-2RZ	10.39
12	133024	1	Insulation Disc	0.88
13	801321	1	Armature Assembly 110V	76.86
13	801014	1	Armature Assembly 220V	76.86
15	133050	1	Woodruff Key	0.85
16	801022	1	Armature Retainer Plate	2.43
17	133053	1	Bearing 6201-2RS	16.32
18	801064	1	Gear (small)	15.51
19	801384	1	Soft Starter Assembly 110V	8.68
19	801635	1	Soft Starter Assembly 220V	8.27
20	133047	1	Cable Sleeve	1.91
21	130031	1	Self-tapping Screw 3.9x19	0.49
22	133086	1	Cable Clamp	0.40
23	801116	1	Handle-Right	6.10
24	801038	1	Switch (with Screws)	27.78
25	801003	1	Motor Housing	13.68
28	801594	1	Carbon Brush (2 pc set)	15.07
29	801318	1	Field Coil 110V	50.09
29	801004	1	Field Coil 220V	50.09
30	801029	1	Carbon Brush Holder	4.26
31	801080	1	Self-Tapping Screw 1.9 x 5	0.59
32	801117	1	Handle-Left	6.10
33	801033	1	Wire (Coil to CB holder)	5.44
34	801362	1	Alpha® Name Plate	0.43
35	801361	1	Builder's Plate 110V	0.18
36	801032	1	Wire (Coil to Switch)	1.40
37	801034	1	Insulation Pipe 4mm x 55mm (white)	0.62
38	801311	1	Insulation Pipe 5mm x 55mm (white)	1.88
39	801026	1	Self-Tapping Screw 4.8x63	0.59
40	801024	1	Air Bridge	3.49
41	133530	1	Anti-Back-Flow Flap	2.13
42	133531	1	Dust Gate	3.52
43	133533	1	Dust Hose	36.43
44	133532	1	Dust Bag Holder	4.27
45	133544	1	Dust Bag w/strap (17"x13-1/2"x12")	19.03
46	130391	1	O-Ring (16x2)	0.29
47	801076	1	Locking Pin	2.76
48	130389	1	Spring	0.23
49	130395	1	Bushing	0.29
50	801071	1	Gear Housing	23.53
52	130096	1	Bearing HK 0810	9.58
53	801079	1	Self-Tapping Screw 4.8x22	0.59
54	801058	1	Gear (Big)	19.81
55	801061	1	Washer	0.38
56	801067	1	Snap Ring	1.28
57	801063	1	Bearing Cover	1.22
58	801056	1	Felt Ring 20 x 27 x 1.5	1.59
59	801074	1	Gasket	1.69
61	801054	1	Bearing Housing	11.57
62	801326	1	Spindle	12.33
63	801330	1	Spacer Sleeves	13.62
64	801342	1	Knob Nut	13.45
65	801328	1	Main Casing	CALL
66	801344	1	Main Casing (w/brush)	87.35
67	801343	1	Brush Ring-Long (press fit installed by service center)	CALL
68	801322	1	Screw M4x32	0.89
69	130798	1	Retainer Ring-E	1.41
70	801352	1	Slide Cover	CALL
71	801345	1	Slide Cover (w/ brush)	17.20
72	801365	1	Brush Ring–Short (press fit installed by service center)	12.51
73	801341	1	Screw M5x35	2.31
74	801340	1	Retainer Clip	0.67
75	135251	1	Screw M4x6	0.85
76	801337	1	Bottom Pulley	13.39
77	801602	1	Fan Belt Set (2pc set)	30.05
78	801351	1	Inner Cover	2.25
79	133515	1	Screw M5x30 (use part #133513)	4.08
80	801347	1	Adjust Nut	13.82
81	801348	1	Lock Nut	13.31
82	801346	1	Adjust Screw	15.82
83	801349	1	Flange Nut	21.96
84	801336	1	Pulley (Outside Small)	12.47
85	133502	1	Felt Rings D19xD12xT2	1.61
86	133492	1	Bearing 698 2RS	14.47
87	133500	1	Bearing Housing	18.12
88	133498	1	Spacer D12xD8.5x4T	4.41
89	133505	1	Cap Screw M5 x 10	0.88
90	133497	1	Fan Case -Right	4.74
91	133067	1	O-Ring (25.5x2)	0.39
92	133460	1	Self-tapping Screw 3.9x16	0.25
93	133493	1	Fan Case -Left	4.74
94	801334	1	Fan	4.82
95	801335	1	Fan Shaft	10.42
96	133511	1	Knob Bolt	0.95
97	133510	1	Outer Cover	3.26
98	801332	1	Pulley (Outside Large)	12.47
99	801331	1	Pulley Shaft	11.62
100	133512	1	Screw M5x15	1.17
102	133486	1	Housing Adapter	12.80
103	801333	1	Pulley (Inside Small)	12.23
104	130434	1	Pin Spanner Wrench 34mm	6.50
105	801380	1	Wrench 24mm	2.95
108	801375	1	Spring Retainer -Top	10.88
109	801376	1	Flange Nut	12.33
110	801377	1	Spring	4.83
111	801378	1	Spring Retainer -Bottom	9.56
112	801381	1	Drive Plate Adapter	5.05
113	801379	1	Flange Bolt	10.76
114	801382	1	Flat Head Screw M4x6	0.82
115	801385	1	Wire (Field Coil to Block Terminal)	1.16
116	130618	1	Block Terminal	0.88
117	DSQ0500	1	Segmented Grinding Cup Wheel w/ 26mm Arbor	109.90
118	DEC005	1	Segmented Grinding Cup Wheel w/ 7/8"Arbor	105.65
119	890001	1	Manual Height Adjustment Flange Assembly (80-83)	45.02
120	133615	1	Felt Rings D26.6xD12.5xT2	1.86
121	801629	1	Inner Cover Gasket	1.94
122	801630	1	Dust Shield D60xD42xT0.35	1.75
999	801392	1	Dust Bag for Carriage (16"x13-1/2"x8")	19.03

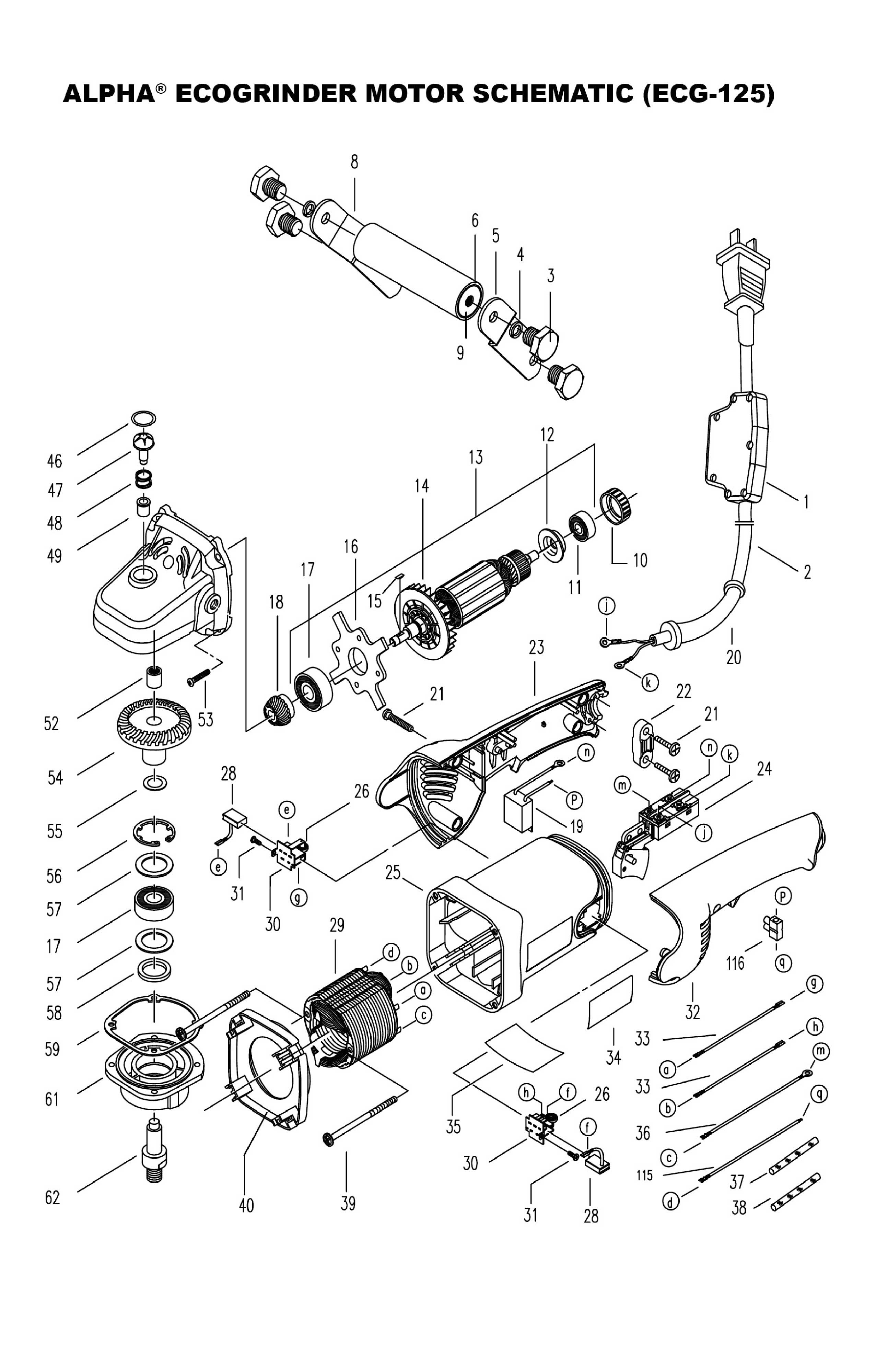

SPARE PARTS

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	801373	1	Breaker Assembly (w/case) 110V	14.72
1	801374	1	Breaker Assembly (w/case) 220V	14.72
2	801324	1	Power Cord 110V	23.19
2	801350	1	Power Cord 220V	23.19
3	801359	1	Screw M8x15	0.55
4	801360	1	Lock Washer M8	0.13
5	801355	1	Handle Bracket -Left	1.96
6	801358	1	Handle Cover	2.36
8	801356	1	Handle Bracket -Right	1.96
9	801357	1	Handle Tube	10.51
10	133028	1	Bearing Sleeve	1.38
11	133025	1	Bearing 608-2RZ	10.39
12	133024	1	Insulation Disc	0.88
13	801321	1	Armature Assembly 110V	76.86
13	801014	1	Armature Assembly 220V	76.86
15	133050	1	Woodruff Key	0.85
16	801022	1	Armature Retainer Plate	2.43
17	133053	1	Bearing 6201-2RS	16.32
18	801064	1	Gear (small)	15.51
19	801384	1	Soft Starter Assembly 110V	8.68
19	801635	1	Soft Starter Assembly 220V	8.27
20	133047	1	Cable Sleeve	1.91
21	130031	1	Self-tapping Screw 3.9x19	0.49
22	133086	1	Cable Clamp	0.40
23	801116	1	Handle-Right	6.10
24	801038	1	Switch (with Screws)	27.78
25	801003	1	Motor Housing	13.68
28	801594	1	Carbon Brush (2 pc set)	15.07
29	801318	1	Field Coil 110V	50.09
29	801004	1	Field Coil 220V	50.09
30	801029	1	Carbon Brush Holder	4.26
31	801080	1	Self-Tapping Screw 1.9 x 5	0.59
32	801117	1	Handle-Left	6.10
33	801033	1	Wire (Coil to CB holder)	5.44
34	801362	1	Alpha® Name Plate	0.43
35	801361	1	Builder's Plate 110V	0.18
36	801032	1	Wire (Coil to Switch)	1.40
37	801034	1	Insulation Pipe 4mm x 55mm (white)	0.62
38	801311	1	Insulation Pipe 5mm x 55mm (white)	1.88
39	801026	1	Self-Tapping Screw 4.8x63	0.59
40	801024	1	Air Bridge	3.49
41	133530	1	Anti-Back-Flow Flap	2.13
42	133531	1	Dust Gate	3.52
43	133533	1	Dust Hose	36.43
44	133532	1	Dust Bag Holder	4.27
45	133544	1	Dust Bag w/strap (17"x13-1/2"x12")	19.03
46	130391	1	O-Ring (16x2)	0.29
47	801076	1	Locking Pin	2.76
48	130389	1	Spring	0.23
49	130395	1	Bushing	0.29
50	801071	1	Gear Housing	23.53
52	130096	1	Bearing HK 0810	9.58
53	801079	1	Self-Tapping Screw 4.8x22	0.59
54	801058	1	Gear (Big)	19.81
55	801061	1	Washer	0.38
56	801067	1	Snap Ring	1.28
57	801063	1	Bearing Cover	1.22
58	801056	1	Felt Ring 20 x 27 x 1.5	1.59
59	801074	1	Gasket	1.69
61	801054	1	Bearing Housing	11.57
62	801326	1	Spindle	12.33
63	801330	1	Spacer Sleeves	13.62
64	801342	1	Knob Nut	13.45
65	801328	1	Main Casing	CALL
66	801344	1	Main Casing (w/brush)	87.35
67	801343	1	Brush Ring-Long (press fit installed by service center)	CALL
68	801322	1	Screw M4x32	0.89
69	130798	1	Retainer Ring-E	1.41
70	801352	1	Slide Cover	CALL
71	801345	1	Slide Cover (w/ brush)	17.20
72	801365	1	Brush Ring–Short (press fit installed by service center)	12.51
73	801341	1	Screw M5x35	2.31
74	801340	1	Retainer Clip	0.67
75	135251	1	Screw M4x6	0.85
76	801337	1	Bottom Pulley	13.39
77	801602	1	Fan Belt Set (2pc set)	30.05
78	801351	1	Inner Cover	2.25
79	133515	1	Screw M5x30 (use part #133513)	4.08
80	801347	1	Adjust Nut	13.82
81	801348	1	Lock Nut	13.31
82	801346	1	Adjust Screw	15.82
83	801349	1	Flange Nut	21.96
84	801336	1	Pulley (Outside Small)	12.47
85	133502	1	Felt Rings D19xD12xT2	1.61
86	133492	1	Bearing 698 2RS	14.47
87	133500	1	Bearing Housing	18.12
88	133498	1	Spacer D12xD8.5x4T	4.41
89	133505	1	Cap Screw M5 x 10	0.88
90	133497	1	Fan Case -Right	4.74
91	133067	1	O-Ring (25.5x2)	0.39
92	133460	1	Self-tapping Screw 3.9x16	0.25
93	133493	1	Fan Case -Left	4.74
94	801334	1	Fan	4.82
95	801335	1	Fan Shaft	10.42
96	133511	1	Knob Bolt	0.95
97	133510	1	Outer Cover	3.26
98	801332	1	Pulley (Outside Large)	12.47
99	801331	1	Pulley Shaft	11.62
100	133512	1	Screw M5x15	1.17
102	133486	1	Housing Adapter	12.80
103	801333	1	Pulley (Inside Small)	12.23
104	130434	1	Pin Spanner Wrench 34mm	6.50
105	801380	1	Wrench 24mm	2.95
108	801375	1	Spring Retainer -Top	10.88
109	801376	1	Flange Nut	12.33
110	801377	1	Spring	4.83
111	801378	1	Spring Retainer -Bottom	9.56
112	801381	1	Drive Plate Adapter	5.05
113	801379	1	Flange Bolt	10.76
114	801382	1	Flat Head Screw M4x6	0.82
115	801385	1	Wire (Field Coil to Block Terminal)	1.16
116	130618	1	Block Terminal	0.88
117	DSQ0500	1	Segmented Grinding Cup Wheel w/ 26mm Arbor	109.90
118	DEC005	1	Segmented Grinding Cup Wheel w/ 7/8"Arbor	105.65
119	890001	1	Manual Height Adjustment Flange Assembly (80-83)	45.02
120	133615	1	Felt Rings D26.6xD12.5xT2	1.86
121	801629	1	Inner Cover Gasket	1.94
122	801630	1	Dust Shield D60xD42xT0.35	1.75
999	801392	1	Dust Bag for Carriage (16"x13-1/2"x8")	19.03
