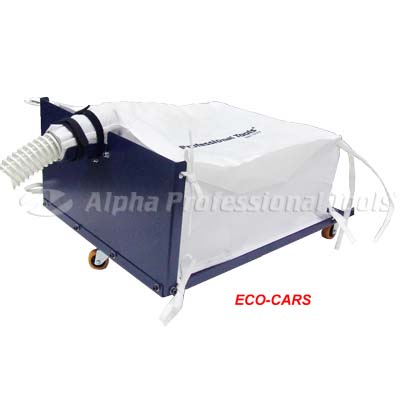

Dust Carriage Spare Parts (Discontinued)

Click here to view/print a PDF

Back To Product Page

• Spare Parts
• Documentation
• FAQS

Manual :	Dust-Bag-Carriage_manual.pdf

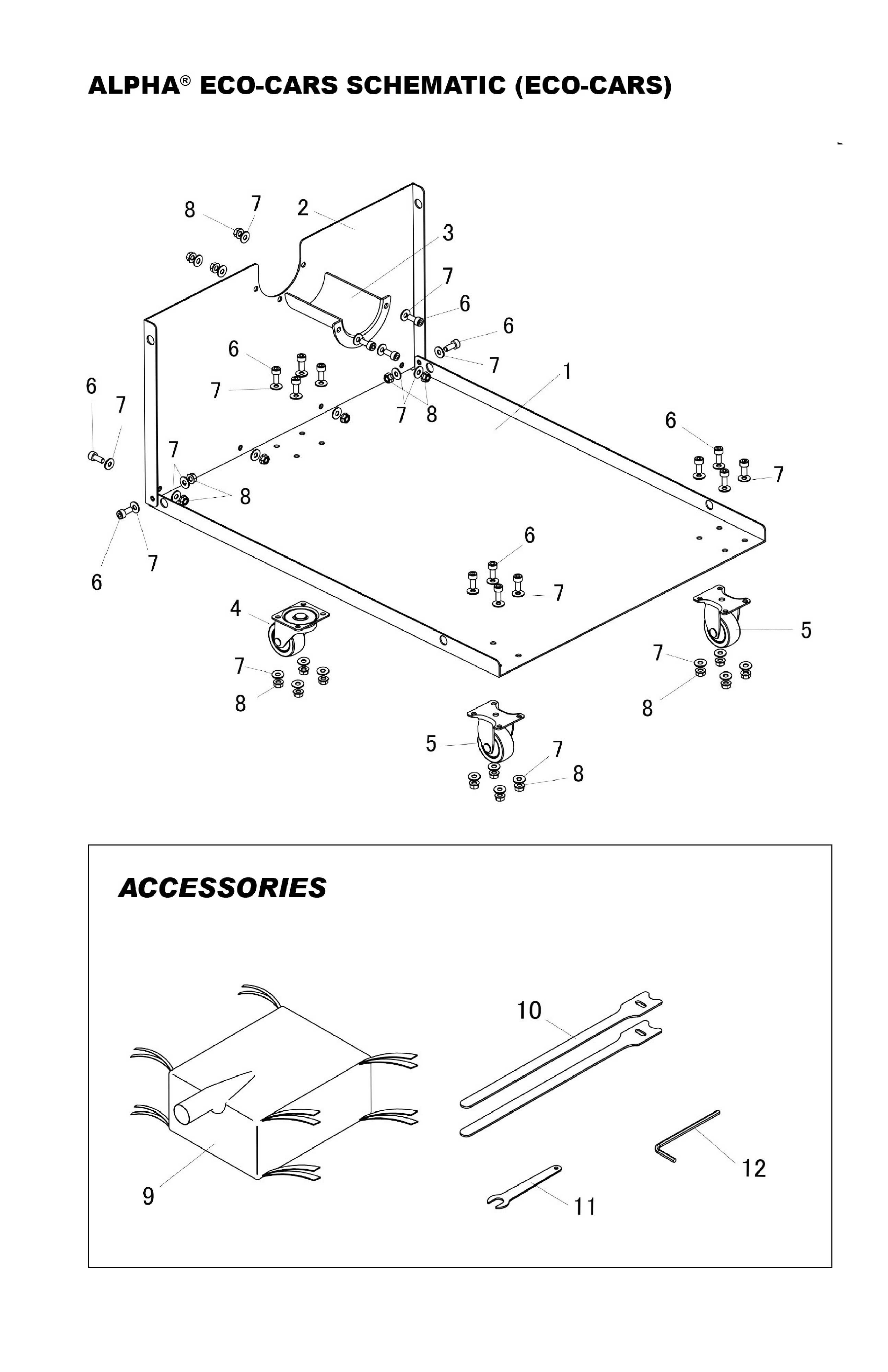

Parts-Schematic :	Dust-Carriage_Parts-Schematic.pdf

SPARE PARTS

DRAWING NO. PART NO. VERSION DESCRIPTION CAProp65 BUY NOW 1 801774 1 Base Plate 2 801775 1 Front Panel 3 801776 1 Hose Stopper 4 801778 1 Swivel Caster 5 801779 1 Fixed Caster 6 801780 1 Screw (M5x10) 7 801781 1 Washer (M5) 8 801783 1 Nylon Lock Nut with Flange (M5) 9 801392 1 Dust Bag for Carriage (16"x13-1/2"x8") 10 133551 1 Hook & Loop Straps 11 801667 1 Box End Wrench 12 801784 1 Hex. Wrench (4mm)

DOCUMENTATION

Manual :	Dust-Bag-Carriage_manual.pdf
Parts-Schematic :	Dust-Carriage_Parts-Schematic.pdf

FAQS

Currently, there are no FAQs available for this product.....
