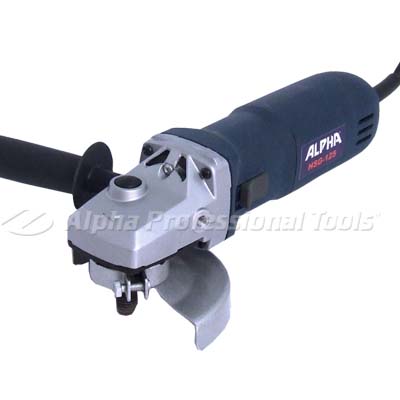

HSG-125 Spare Parts (Discontinued)

Click here to view/print a PDF

Back To Product Page

• Spare Parts
• Documentation
• FAQS

Manual :	HSG-125_manual.pdf

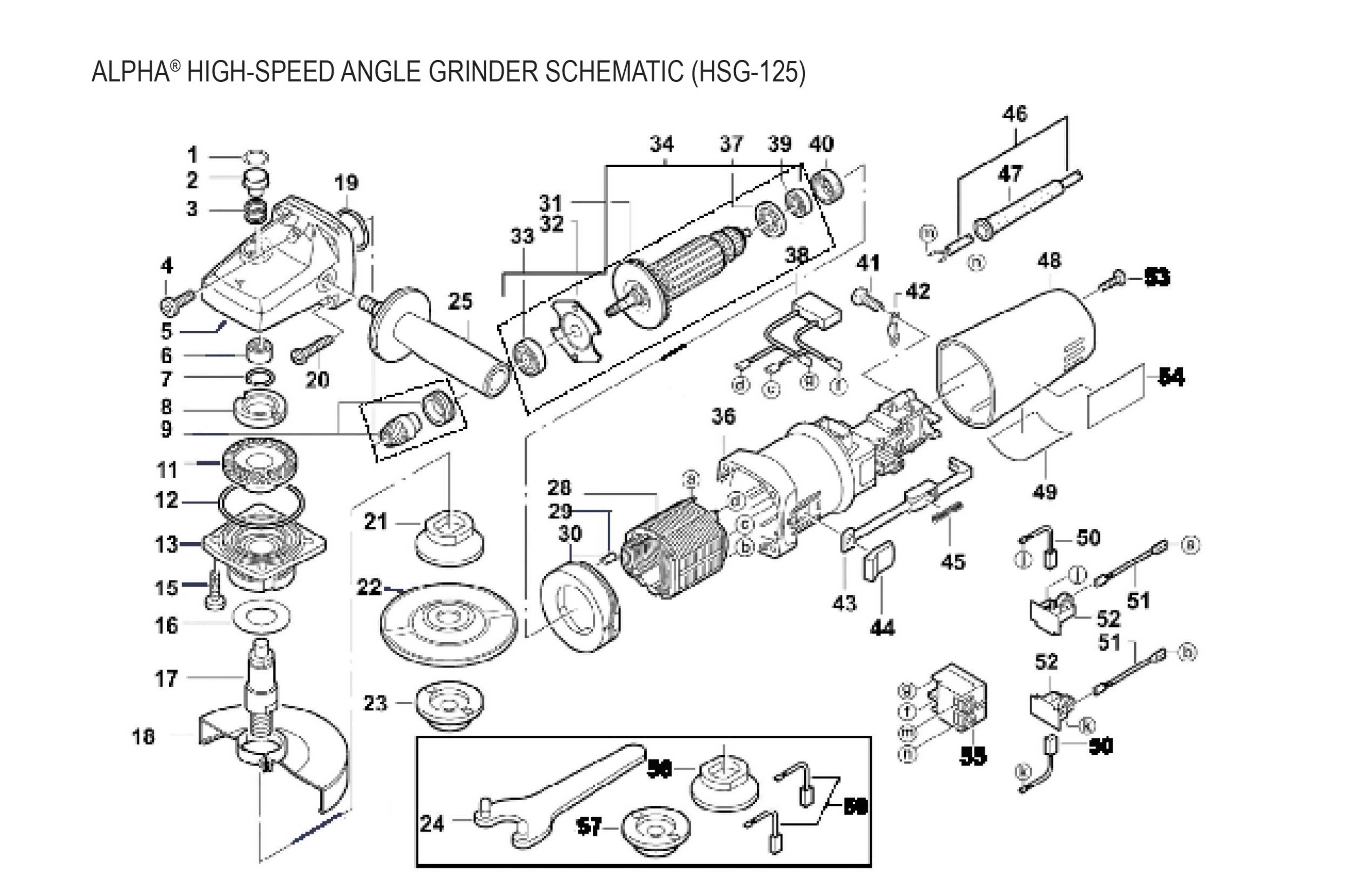

Parts-Schematic :	HSG-125_Parts-Schematic.pdf

SPARE PARTS

DRAWING NO. PART NO. VERSION DESCRIPTION CAProp65 BUY NOW 1 130391 1 O-Ring (16x2) 2 130390 1 Lock 3 130389 1 Spring 4 130388 1 Screw M4x7 5 130384 1 Gear Box Assembly 6 130458 1 Needle Bearing HK0709F (7x11x9) 7 130450 1 Snap Ring 13.5x1.2 8 130426 1 Lock Flange 9 130420 1 Small Gear+Oil Wiper 11 130442 1 Big Gear 12 130386 1 O-Ring 54x1.5 13 130443 1 Gearbox Cover 15 130695 1 Screw M4x12 16 130399 1 Washer 17.2x30x0.2 17 136034 1 Spindle 5/8"-11 18 130653 1 Protective Cover 19 130387 1 O-Ring 28x2 20 131187 1 Self-tapping Screw 3.9 x 28 21 136038 1 Inside Flange (22.2mm) 23 136039 1 Locking Flange 24 130434 1 Pin Spanner Wrench 34mm 25 130433 1 Side Handle for HSG-125 28 136027 1 Field Coil 29 130190 1 Rubber Insert Φ 5x7.5 30 130410 1 Air Bridge

123Next »

DOCUMENTATION

Manual :	HSG-125_manual.pdf
Parts-Schematic :	HSG-125_Parts-Schematic.pdf

FAQS

Currently, there are no FAQs available for this product.....
