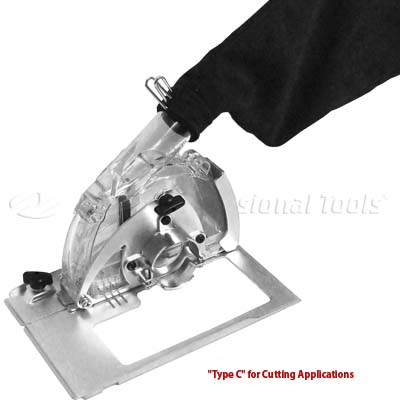

Ecoguard C Spare Parts (Discontinued)

Click here to view/print a PDF

Back To Product Page

• Spare Parts
• Documentation
• FAQS

Manual :	Ecoguard-C_manual.pdf
Reference :	Ecoguard-C_HelpfulHints.pdf
Reference :	Ecoguard-Grinder-Compatibility-Chart.pdf
Flyer :	Ecoguard_Solutions_flyer.pdf
Flyer :	Ecoguard-C_flyer.pdf

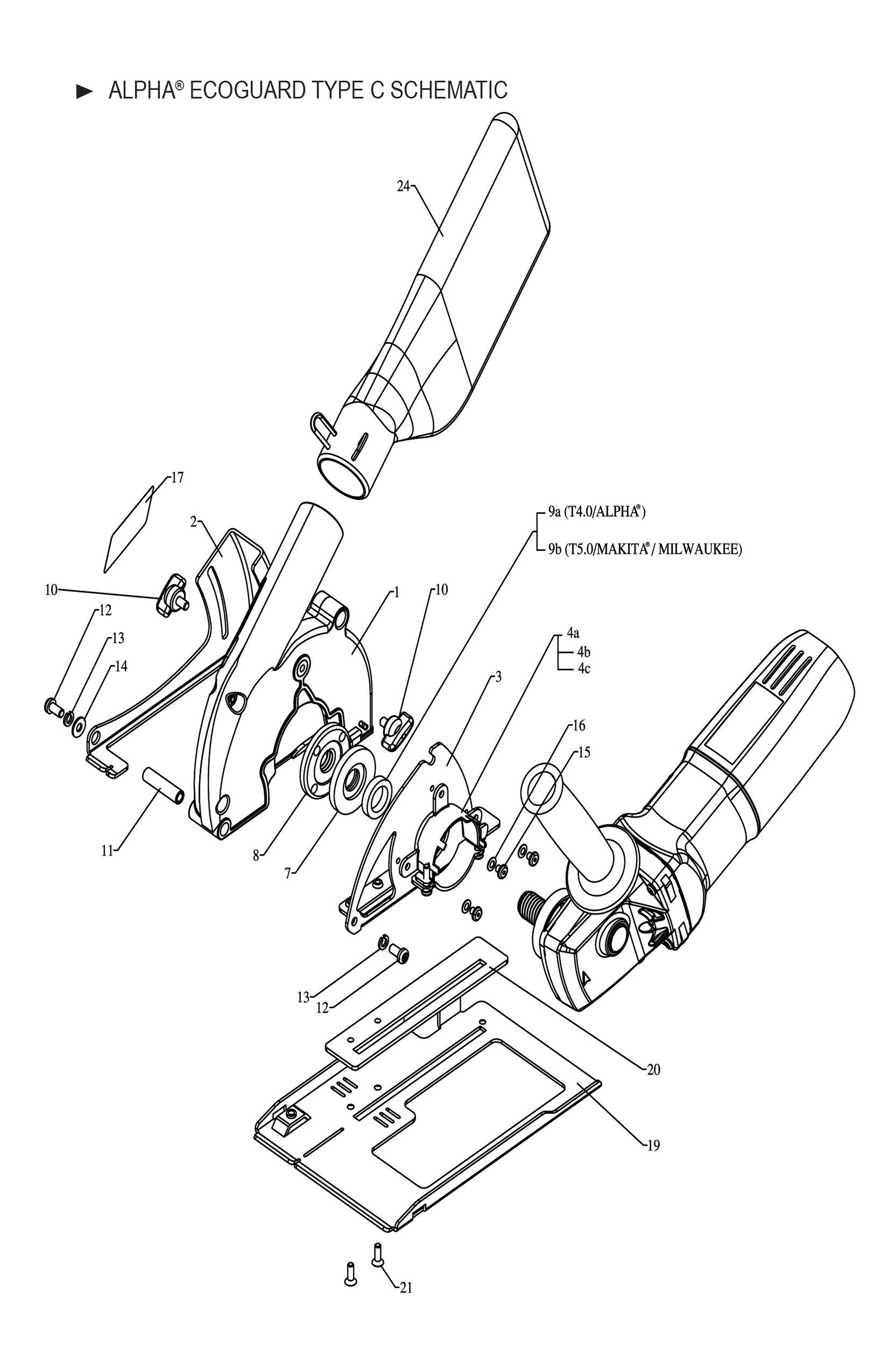

SPARE PARTS

DRAWING NO. PART NO. VERSION DESCRIPTION CAProp65 BUY NOW 1 500043 1 Cover Assembly 2 500044 1 Base 3 500045 1 Base Plate 4a 500002 1 Connector Assembly (Alpha®/Makita/Milwakee) 4b 500003 1 Connector Assembly (Hitachi®) 4c 500004 1 Connector Assembly (Metabo®/Bosch®/Fein®) 5 500005 1 Hose Adapter 6 500006 1 Stainless Steel Hose Clamp 7 500046 1 Base Flange (5/8"-11) 9a 500047 1 Spacer (T4.0) 9b 500012 1 Spacer (T5.0) 9c 500048 1 Spacer-T7.2 (Hitachi®) 9d 500023 1 Spacer (T8.6) 10 500049 1 Knob Screw (M5x6) 11 500016 1 Shaft 12 500017 1 Screw 13 500018 1 Spring Washer 14 500019 1 Washer 15 500020 1 Flat Head Screw 16 500021 1 Taper Washer 17 500051 1 Brand Label 18 500022 1 Collar M 19 500031 1 Foot Plate 20 500030 1 Bottom Plate 21 500050 1 Screw

12Next »

DOCUMENTATION

Manual :	Ecoguard-C_manual.pdf
Reference :	Ecoguard-C_HelpfulHints.pdf
Reference :	Ecoguard-Grinder-Compatibility-Chart.pdf
Flyer :	Ecoguard_Solutions_flyer.pdf
Flyer :	Ecoguard-C_flyer.pdf

FAQS

Currently, there are no FAQs available for this product.....
