Alpha Professional Tools® :: Ecoguard G Spare Parts (Discontinued)

Ecoguard G Spare Parts (Discontinued)

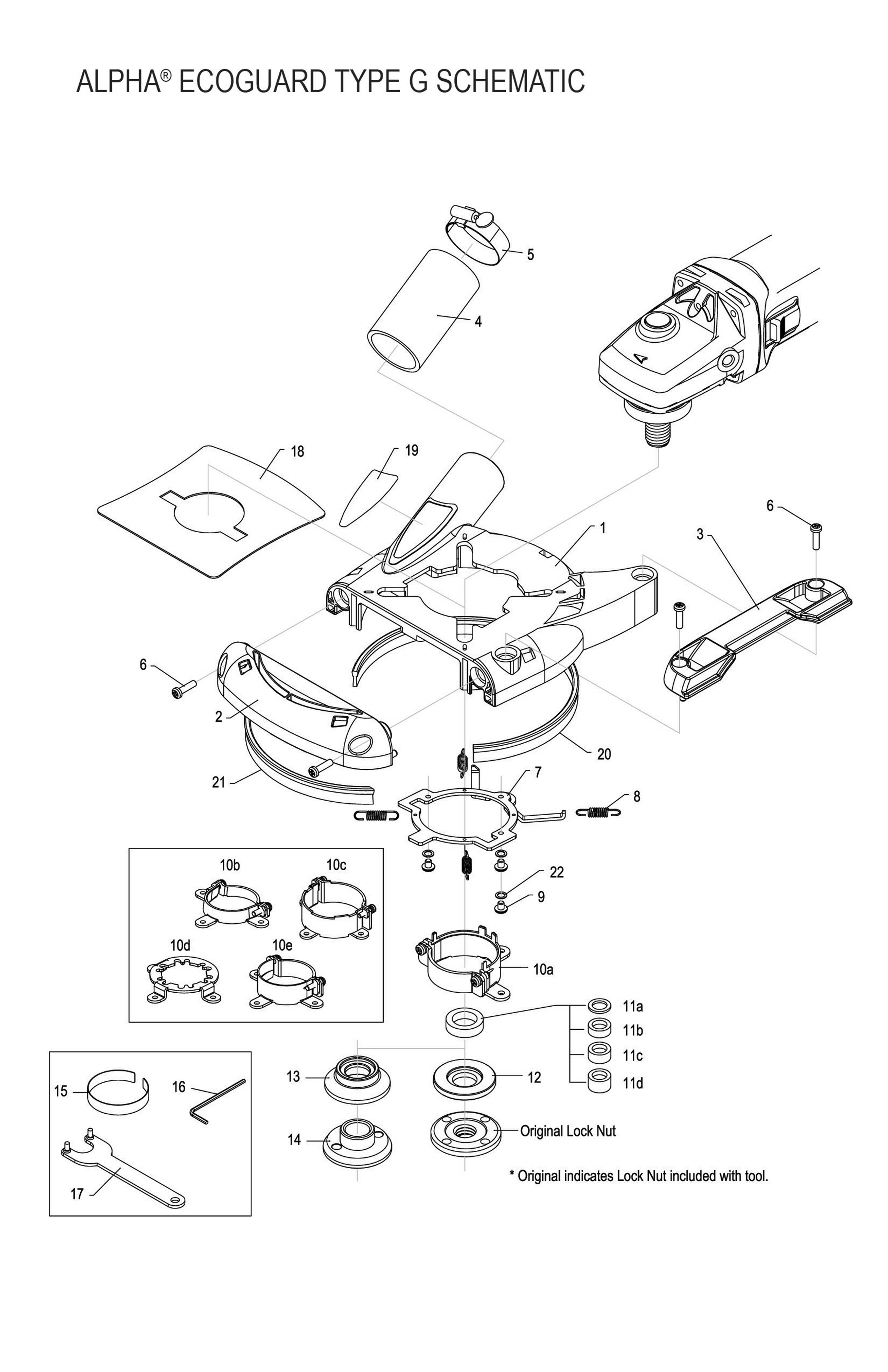

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	500032	1	Main Cover	67.75
2	500033	1	Sub Cover	57.26
3	500034	1	Half Cover	49.58
4	500005	1	Hose Adapter	14.35
5	500006	1	Stainless Steel Hose Clamp	CALL
6	500037	1	Combination Screw M4x10 (w/spring washer )	0.12
7	500038	1	Set Plate	CALL
8	500039	1	Holder Spring	CALL
9	500020	1	Flat Head Screw	CALL
13	500022	1	Collar M	CALL
14	500035	1	Collar D (Dewalt®)	CALL
16	500008	1	Lock Nut	3.71
17	500024	1	Hex. Wrench	CALL
18	210105	1	Pin Wrench	3.94
19	500036	1	Seal	CALL
20	500040	1	Brand Label	CALL
21	500041	1	Brush-A	46.86
22	500042	1	Brush-B	46.86
23	500021	1	Taper Washer	CALL
24	500026	1	Flexible Connector Hose 18"	17.60
10a	500028	1	Connector Assembly (Alpha®/Makita®)	CALL
10b	500003	1	Connector Assembly (Hitachi®)	10.04
10c	500004	1	Connector Assembly (Metabo®/Bosch®/Fein®)	CALL
11a	500011	1	Spacer (T2.5/Hitachi®)	CALL
11b	500012	1	Spacer (T5.0)	4.60
11c	500013	1	Spacer (T7.0)	CALL
11d	500014	1	Spacer (T9.4)	CALL
12a	500029	1	Base Flange	CALL
12b	500007	1	Inner Flange	3.54

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	500032	1	Main Cover	67.75
2	500033	1	Sub Cover	57.26
3	500034	1	Half Cover	49.58
4	500005	1	Hose Adapter	14.35
5	500006	1	Stainless Steel Hose Clamp	CALL
6	500037	1	Combination Screw M4x10 (w/spring washer )	0.12
7	500038	1	Set Plate	CALL
8	500039	1	Holder Spring	CALL
9	500020	1	Flat Head Screw	CALL
13	500022	1	Collar M	CALL
14	500035	1	Collar D (Dewalt®)	CALL
16	500008	1	Lock Nut	3.71
17	500024	1	Hex. Wrench	CALL
18	210105	1	Pin Wrench	3.94
19	500036	1	Seal	CALL
20	500040	1	Brand Label	CALL
21	500041	1	Brush-A	46.86
22	500042	1	Brush-B	46.86
23	500021	1	Taper Washer	CALL
24	500026	1	Flexible Connector Hose 18"	17.60
10a	500028	1	Connector Assembly (Alpha®/Makita®)	CALL
10b	500003	1	Connector Assembly (Hitachi®)	10.04
10c	500004	1	Connector Assembly (Metabo®/Bosch®/Fein®)	CALL
11a	500011	1	Spacer (T2.5/Hitachi®)	CALL
11b	500012	1	Spacer (T5.0)	4.60
11c	500013	1	Spacer (T7.0)	CALL
11d	500014	1	Spacer (T9.4)	CALL
12a	500029	1	Base Flange	CALL
12b	500007	1	Inner Flange	3.54

Manual :	Ecoguard-G_v1_manual.pdf
Manual :	Ecoguard-G_v2_manual.pdf
Manual :	Ecoguard-G_v3_manual.pdf
Manual :	Ecoguard-G7_manual.pdf
Reference :	Ecoguard-G7-Compatibility-Chart.pdf
Reference :	Ecoguard-G_HelpfulHints.pdf
Reference :	Ecoguard-Grinder-Compatibility-Chart.pdf
Flyer :	Ecoguard-G_GrindingDiscs_flyer.pdf
Flyer :	Ecoguard_Solutions_flyer.pdf
Flyer :	Ecoguard-G_flyer.pdf
Flyer :	SicisArtGlassTooling_flyer.pdf
Flyer :	Dust-Free-Systems_flyer.pdf
Flyer :	Ecoguard-G7_flyer.pdf

Currently, there are no FAQs available for this product.....
