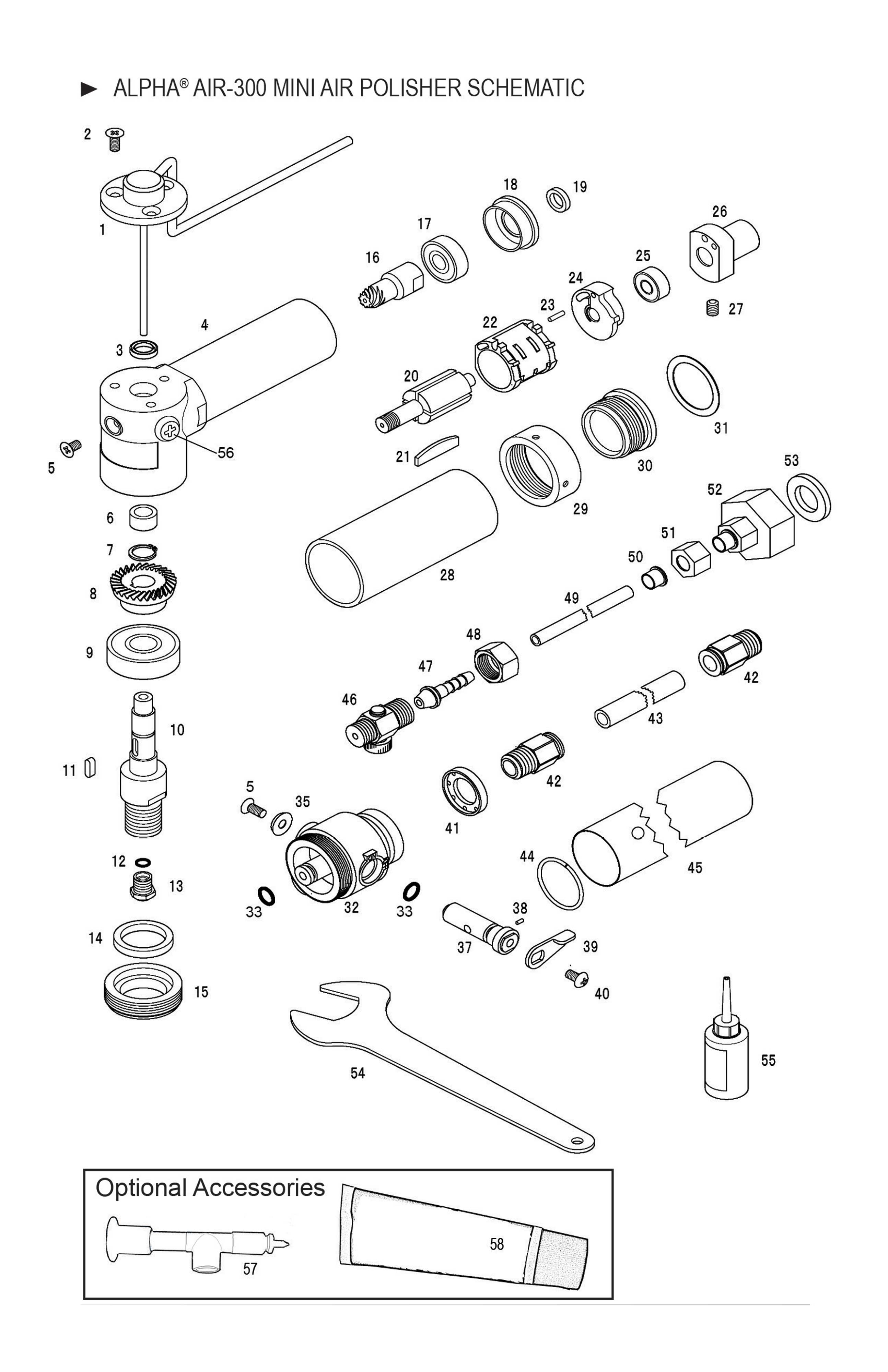

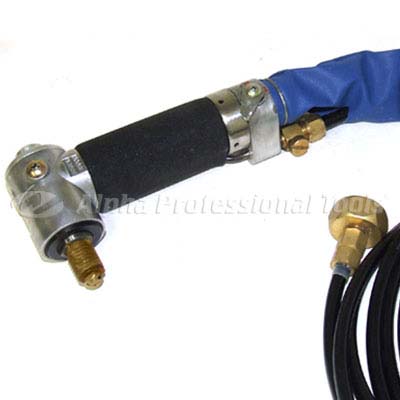

AIR-300 Spare Parts

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	300001	1	Water-Feed Assembly	36.09
2	300002	1	Screw M4X10	1.81
3	300003	1	Oil Seal	6.94
4	300004	1	Body	80.99
5	300005	1	Screw M4X6	1.69
6	300006	1	Needle Bearing FJ810W	13.88
7	300007	1	Snap Ring S-10	1.95
8	300008	1	Spiral Bevel Gear	29.62
9	300009	1	Ball Bearing 6201ZZ	8.73
10	300010	1	Spindle 5/8"-11	64.79
11	300011	1	Oval Key 3x3x10	2.27
12	300012	1	O-Ring KS-1	1.84
13	300013	1	Nozzle 5/16	9.55
14	300014	1	Oil Seal OS20264	6.94
15	300015	1	Nut M34 Left Hand	16.77
16	300016	1	Spiral Bevel Pinion	24.31
17	516-20	1	Ball Bearing 608ZZ	8.73
18	300017	1	F-Bearing Case	14.59
19	300018	1	Rotor Spacer	3.79
20	300019	1	Rotor	43.26
21	300020	1	Vane	16.66
22	300021	1	Cylinder	41.65
23	300022	1	Spring Pin φ2.5X15	1.91
24	300023	1	R-Bearing Case	22.21
25	300024	1	Bearing R4ZZ	8.68
26	300025	1	Intake Manifold	25.92
27	300026	1	Set Screw (M5x6)	1.95
28	300027	1	Grip Cover	13.88
29	300028	1	Nut φ38	19.44
30	300029	1	Retainer Nut	24.31
31	300030	1	Gasket φ32	1.74
32	300031	1	Endcase	74.05
33	300049	1	O-Ring KS-5	1.61
35	300032	1	Conical Washer M4	1.69
37	300033	1	Valve	20.83
38	300034	1	Needle Pin φ1.5x3.8	2.04
39	300035	1	Valve Lever	5.55
40	300036	1	Screw M4X6	1.69
41	300037	1	Silencer	11.11
42	300038	1	Hose Fitting φ8	16.66
43	300039	1	Air Hose 8DX6d 10ft (3m)	27.77
44	300040	1	Hose Band	3.48
45	300041	1	Exhaust Hose (leather)	21.06
46	300042	1	Water Valve	25.45
47	300043	1	Hose Insert	8.32
48	300044	1	Union Nut	4.17
49	133229	1	Water Hose 8mm ODx10ft (3m)	13.25
50	AWP-56	1	Compression Ring	4.16
51	AWP-57	1	Compression Nut	4.71
52	AWP-74	1	Hose Coupling	15.09
53	AWP-75	1	Gasket 24x14x3	0.42
54	300046	1	Wrench 17mm	9.47
55	AIR-008	1	Rust Inhibitor Oil (8oz / 237ml)	12.43
56	300045	1	Screw M5X6	1.69
57	300047	1	Jiffy Luber	12.15
58	300048	1	Grease Cartridge (14oz)	11.84
57	300050	2	Spindle M14	64.79
58	300051	2	Needle Point Coupler	9.92
99	AT001	1	Cylinder Clamp For Air-300	62.00
99	AT002	1	Cylinder Clamp For Air-658	89.90
99	AT003	1	Plastic Block	46.00
99	AT004	1	Small Bearing Puller	29.25
99	AT006	1	Small Commutator Cleaning Stone	11.43
99	AT008	1	Crimping Tool	40.00
99	AT012	1	Dc 112 Grease 5.3oz Tube	39.15
99	ST004	1	Bearing Push Remover 12mm ID	38.55
99	ST005	1	Bearing Push Remover 10mm ID	38.55
99	ST017	1	Lg. Bearing Pusher For 516-2	38.55
99	ST018	1	Bearing Push Removal 516-27	38.55
99	ST033	1	40-42mm Pin Spanner Wrench	32.55
99	ST045	1	Sm. Bearing Pusher For 30002	38.55
99	ST051	1	Removal Wrench For 300015	52.70
99	ST052	1	Removal Wrench For 300028	52.70

SPARE PARTS

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	300001	1	Water-Feed Assembly	36.09
2	300002	1	Screw M4X10	1.81
3	300003	1	Oil Seal	6.94
4	300004	1	Body	80.99
5	300005	1	Screw M4X6	1.69
6	300006	1	Needle Bearing FJ810W	13.88
7	300007	1	Snap Ring S-10	1.95
8	300008	1	Spiral Bevel Gear	29.62
9	300009	1	Ball Bearing 6201ZZ	8.73
10	300010	1	Spindle 5/8"-11	64.79
11	300011	1	Oval Key 3x3x10	2.27
12	300012	1	O-Ring KS-1	1.84
13	300013	1	Nozzle 5/16	9.55
14	300014	1	Oil Seal OS20264	6.94
15	300015	1	Nut M34 Left Hand	16.77
16	300016	1	Spiral Bevel Pinion	24.31
17	516-20	1	Ball Bearing 608ZZ	8.73
18	300017	1	F-Bearing Case	14.59
19	300018	1	Rotor Spacer	3.79
20	300019	1	Rotor	43.26
21	300020	1	Vane	16.66
22	300021	1	Cylinder	41.65
23	300022	1	Spring Pin φ2.5X15	1.91
24	300023	1	R-Bearing Case	22.21
25	300024	1	Bearing R4ZZ	8.68
26	300025	1	Intake Manifold	25.92
27	300026	1	Set Screw (M5x6)	1.95
28	300027	1	Grip Cover	13.88
29	300028	1	Nut φ38	19.44
30	300029	1	Retainer Nut	24.31
31	300030	1	Gasket φ32	1.74
32	300031	1	Endcase	74.05
33	300049	1	O-Ring KS-5	1.61
35	300032	1	Conical Washer M4	1.69
37	300033	1	Valve	20.83
38	300034	1	Needle Pin φ1.5x3.8	2.04
39	300035	1	Valve Lever	5.55
40	300036	1	Screw M4X6	1.69
41	300037	1	Silencer	11.11
42	300038	1	Hose Fitting φ8	16.66
43	300039	1	Air Hose 8DX6d 10ft (3m)	27.77
44	300040	1	Hose Band	3.48
45	300041	1	Exhaust Hose (leather)	21.06
46	300042	1	Water Valve	25.45
47	300043	1	Hose Insert	8.32
48	300044	1	Union Nut	4.17
49	133229	1	Water Hose 8mm ODx10ft (3m)	13.25
50	AWP-56	1	Compression Ring	4.16
51	AWP-57	1	Compression Nut	4.71
52	AWP-74	1	Hose Coupling	15.09
53	AWP-75	1	Gasket 24x14x3	0.42
54	300046	1	Wrench 17mm	9.47
55	AIR-008	1	Rust Inhibitor Oil (8oz / 237ml)	12.43
56	300045	1	Screw M5X6	1.69
57	300047	1	Jiffy Luber	12.15
58	300048	1	Grease Cartridge (14oz)	11.84
57	300050	2	Spindle M14	64.79
58	300051	2	Needle Point Coupler	9.92
99	AT001	1	Cylinder Clamp For Air-300	62.00
99	AT002	1	Cylinder Clamp For Air-658	89.90
99	AT003	1	Plastic Block	46.00
99	AT004	1	Small Bearing Puller	29.25
99	AT006	1	Small Commutator Cleaning Stone	11.43
99	AT008	1	Crimping Tool	40.00
99	AT012	1	Dc 112 Grease 5.3oz Tube	39.15
99	ST004	1	Bearing Push Remover 12mm ID	38.55
99	ST005	1	Bearing Push Remover 10mm ID	38.55
99	ST017	1	Lg. Bearing Pusher For 516-2	38.55
99	ST018	1	Bearing Push Removal 516-27	38.55
99	ST033	1	40-42mm Pin Spanner Wrench	32.55
99	ST045	1	Sm. Bearing Pusher For 30002	38.55
99	ST051	1	Removal Wrench For 300015	52.70
99	ST052	1	Removal Wrench For 300028	52.70
