Ecoguard M Spare Parts (Discontinued)

Click here to view/print a PDF

Back To Product Page

• Spare Parts
• Documentation
• FAQS

Manual :	Ecoguard-M_manual.pdf
Reference :	Ecoguard-Grinder-Compatibility-Chart.pdf

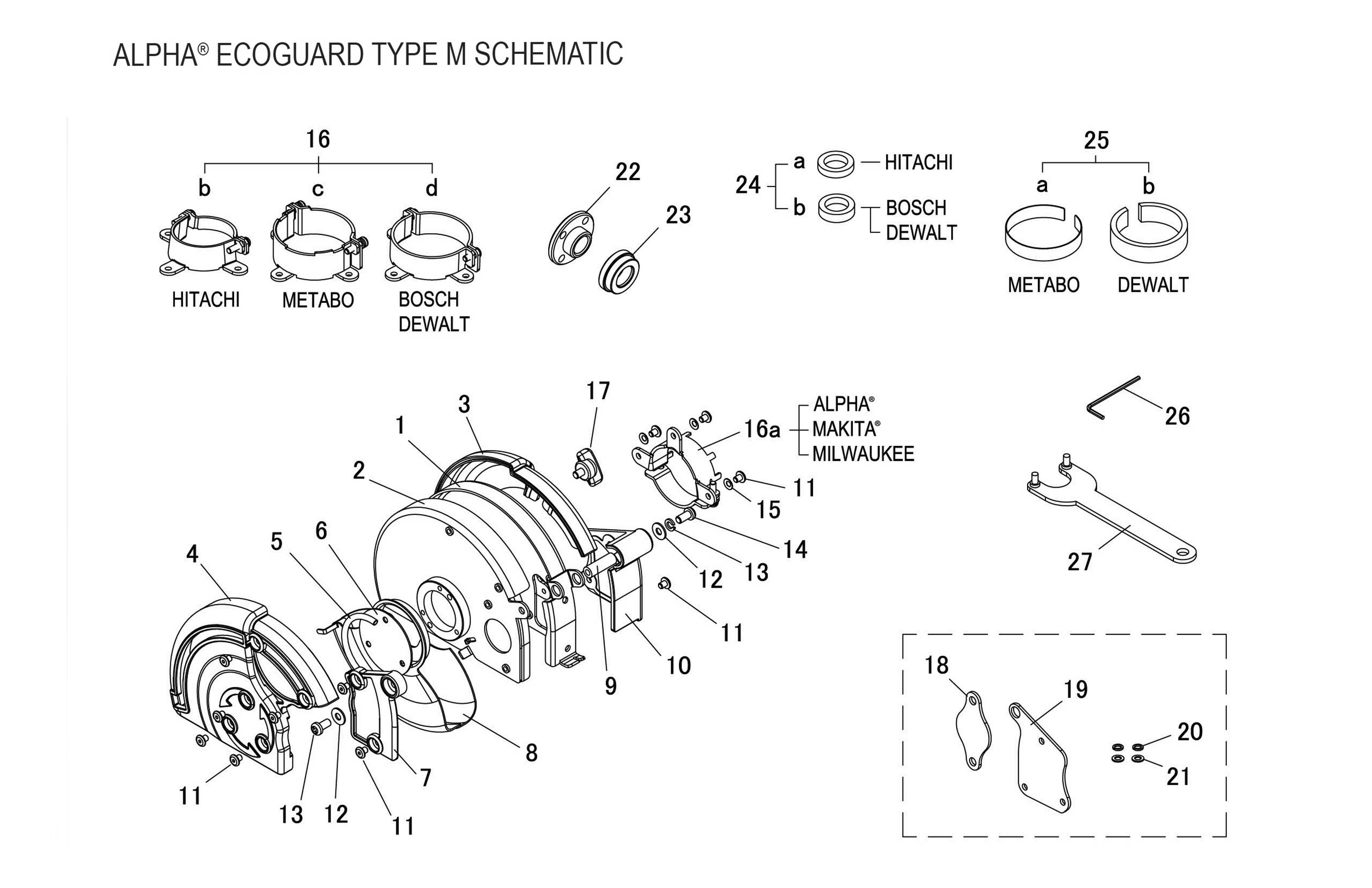

SPARE PARTS

DRAWING NO. PART NO. VERSION DESCRIPTION CAProp65 BUY NOW 1 500054 1 Main Guard-A 2 500055 1 Main Guard-B 3 500056 1 Protector Assembly 5 500057 1 Spring 6 500058 1 Holder Plate 7 500059 1 Side Protector-A 8 500061 1 Safety Guard Assembly 9 500062 1 Sleeve 10 500060 1 Side Protector-B 11 500020 1 Flat Head Screw 12 500019 1 Washer 13 500018 1 Spring Washer 14 500017 1 Screw 15 500021 1 Taper Washer 16a 500002 1 Connector Assembly (Alpha®/Makita/Milwakee) 16b 500003 1 Connector Assembly (Hitachi®) 16d 500027 1 Connector Assembly (Bosch / Metabo) 16d 500004 1 Connector Assembly (Metabo®/Bosch®/Fein®) 17 500049 1 Knob Screw (M5x6) 18 500063 1 Side Plate-A 19 500064 1 Side Plate-B 20 500065 1 Spring Washer M4 21 500066 1 Washer M4 22 500067 1 Lock Nut 23 500068 1 Inner Flange

12Next »

DOCUMENTATION

Manual :	Ecoguard-M_manual.pdf
Reference :	Ecoguard-Grinder-Compatibility-Chart.pdf

FAQS

Currently, there are no FAQs available for this product.....
