Ecocaddy Spare Parts (Discontinued)

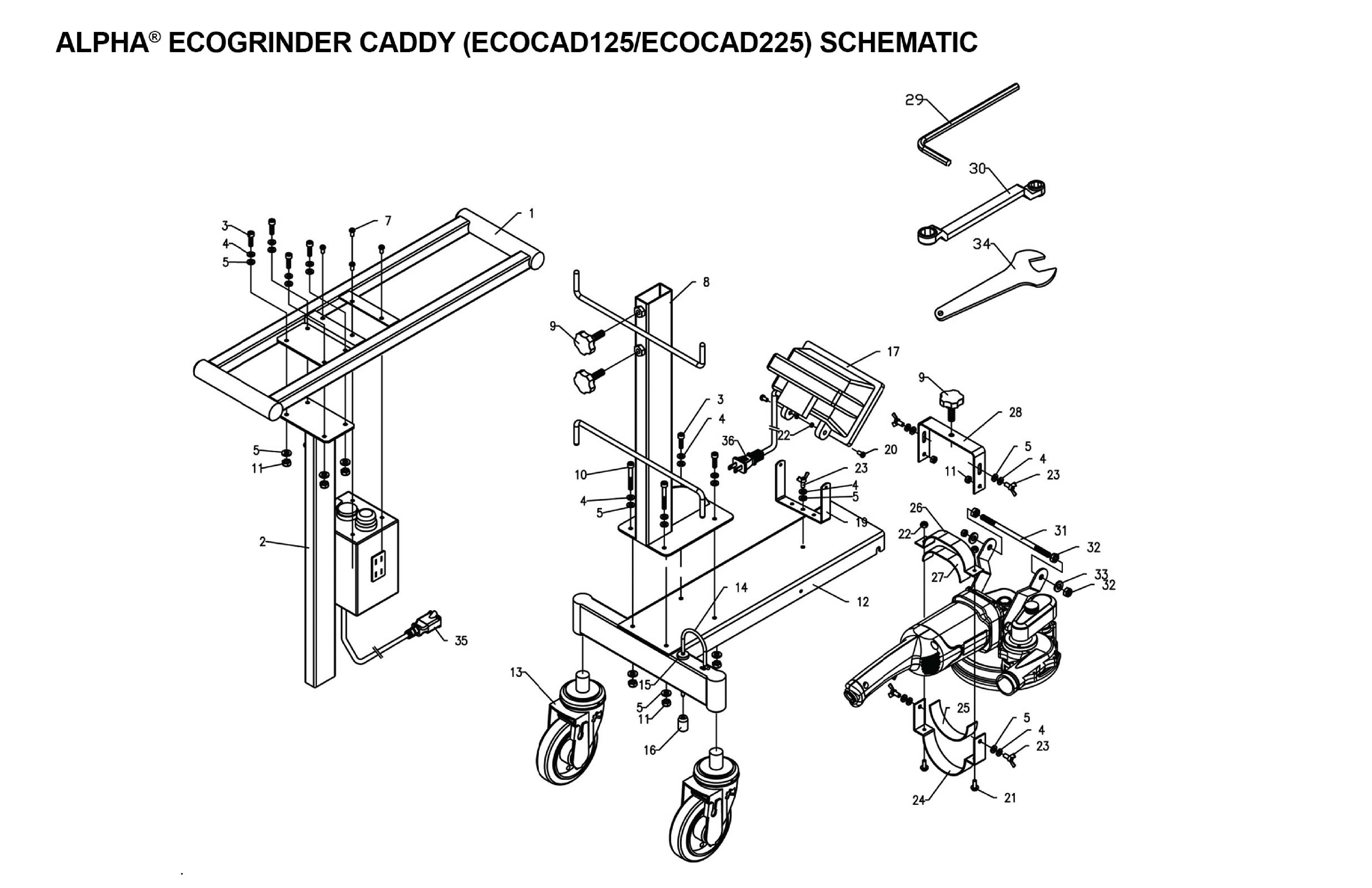

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	801640	1	Handle Assembly	CALL
2	801641	1	Handle Post	CALL
3	133560	1	Socket Screw (M6x16)	CALL
4	133072	1	Spring Washer (M6)	0.32
5	133071	1	Flat Washer M6	0.31
6	801643	1	Switch Box 110V	CALL
6	801706	1	Switch Box 220V	CALL
7	801693	1	Screw (M4x10)	CALL
8	801644	1	Handle Holder Assembly	CALL
9	801645	1	Knob Bolt (M8x30)	CALL
10	801646	1	Socket Screw (M6x80)	CALL
11	803138	1	Nut (M6)	CALL
12	801647	1	Chassis Assembly	CALL
13	801649	1	Wheel D125	CALL
14	801650	1	Dust Hose Holder	CALL
15	801651	1	Lock Nut-A	CALL
16	801652	1	Lock Nut-B	CALL
17	801653	1	Halogen Light Assembly 110V	CALL
17	801708	1	Halogen Light Assembly 220V	CALL
18	801705	1	Halogen Bulb 150W	22.82
19	801655	1	Halogen Light Holder	CALL
20	801656	1	Flange Screw (M4x10)	CALL
21	804214	1	Screw w/Washer (M4x16)	CALL
22	801682	1	Nut	CALL
23	133084	1	Wing Screw	1.71
24	801661	1	Motor Holder	CALL
25	801662	1	Rubber Seat-A	CALL
26	801663	1	Clamp	CALL
27	801664	1	Rubber Seat-B	CALL
28	801665	1	Bracket	CALL
29	801666	1	Hex. Wrench	CALL
30	801667	1	Box End Wrench	CALL
31	801713	1	Screw	CALL
32	803179	1	Nut	CALL
33	801360	1	Lock Washer M8	0.13
34	133535	1	Wrench 19mm (for ECC-125)	5.52
35	801668	1	Plug	CALL
36	801669	1	Socket	CALL

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	801640	1	Handle Assembly	CALL
2	801641	1	Handle Post	CALL
3	133560	1	Socket Screw (M6x16)	CALL
4	133072	1	Spring Washer (M6)	0.32
5	133071	1	Flat Washer M6	0.31
6	801643	1	Switch Box 110V	CALL
6	801706	1	Switch Box 220V	CALL
7	801693	1	Screw (M4x10)	CALL
8	801644	1	Handle Holder Assembly	CALL
9	801645	1	Knob Bolt (M8x30)	CALL
10	801646	1	Socket Screw (M6x80)	CALL
11	803138	1	Nut (M6)	CALL
12	801647	1	Chassis Assembly	CALL
13	801649	1	Wheel D125	CALL
14	801650	1	Dust Hose Holder	CALL
15	801651	1	Lock Nut-A	CALL
16	801652	1	Lock Nut-B	CALL
17	801653	1	Halogen Light Assembly 110V	CALL
17	801708	1	Halogen Light Assembly 220V	CALL
18	801705	1	Halogen Bulb 150W	22.82
19	801655	1	Halogen Light Holder	CALL
20	801656	1	Flange Screw (M4x10)	CALL
21	804214	1	Screw w/Washer (M4x16)	CALL
22	801682	1	Nut	CALL
23	133084	1	Wing Screw	1.71
24	801661	1	Motor Holder	CALL
25	801662	1	Rubber Seat-A	CALL
26	801663	1	Clamp	CALL
27	801664	1	Rubber Seat-B	CALL
28	801665	1	Bracket	CALL
29	801666	1	Hex. Wrench	CALL
30	801667	1	Box End Wrench	CALL
31	801713	1	Screw	CALL
32	803179	1	Nut	CALL
33	801360	1	Lock Washer M8	0.13
34	133535	1	Wrench 19mm (for ECC-125)	5.52
35	801668	1	Plug	CALL
36	801669	1	Socket	CALL

Manual :	Ecocaddy_manual.pdf
Reference :	Ecocaddy_HelpfulHints.pdf
