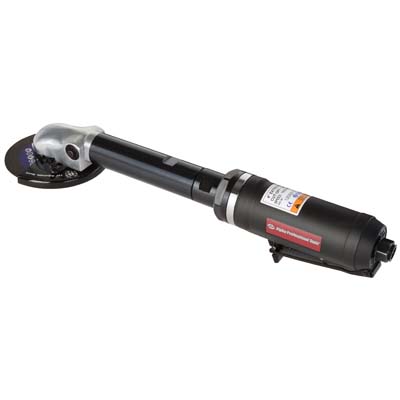

COTE-04 Spare Parts

Click here to view/print a PDF

Back To Product Page

• Spare Parts
• Documentation
• FAQS

Manual :	COTE-04_v1_Manual.pdf
Manual :	COTE-04_v2_Manual.pdf
Flyer :	CutOffTools_UltracutABM_flyer.pdf

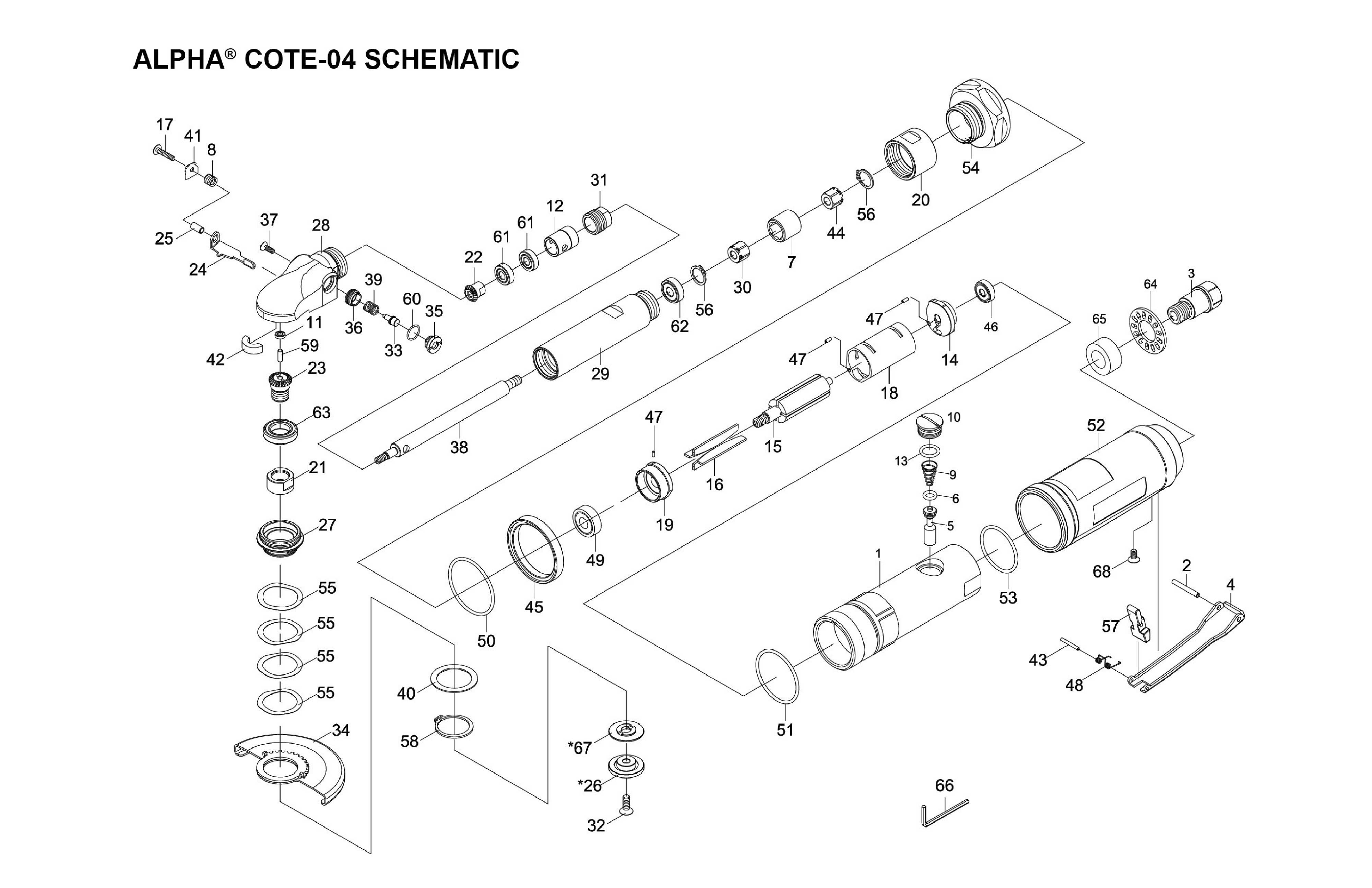

SPARE PARTS

DRAWING NO. PART NO. VERSION DESCRIPTION CAProp65 BUY NOW 1 3011-0001 1 Motor Housing 2 3011-0002 1 Spring Pin (3X24L) 3 3011-0003 1 Air Inlet 4 3011-0004 1 Throttle Lever 5 3011-0005 1 Valve Shaft 6 3011-0006 1 O-Ring (4.8x1.9) 7 3011-0007 1 Connecter 8 3011-0008 1 Spring 9 3011-0009 1 Valve Spring 10 3011-0010 1 Plug 11 3011-0011 1 Ball Bearing (684ZZ) 12 3011-0012 1 Bushing 13 3011-0013 1 O-Ring (11.8x2.4) 14 3011-0014 1 Rear End Plate 15 3011-0015 1 Rotor 16 3011-0016 1 Vane (4pc set) 17 3011-0017 1 Screw (M4x20L) 18 3011-0018 1 Cylinder 19 3011-0019 1 Front End Plate 20 3011-0020 1 Connecter Nut 21 3011-0021 1 Lock Nut 22 3011-0022 1 Bevel Gear 23 3011-0023 1 Bevel Gear 24 3011-0024 1 Lock Bar 25 3011-0025 1 Bushing

123Next »

DOCUMENTATION

Manual :	COTE-04_v1_Manual.pdf
Manual :	COTE-04_v2_Manual.pdf
Flyer :	CutOffTools_UltracutABM_flyer.pdf

FAQS

Currently, there are no FAQs available for this product.....
