Alpha Professional Tools® :: VSP-340 (230v) Spare Parts

VSP-340 (230v) Spare Parts

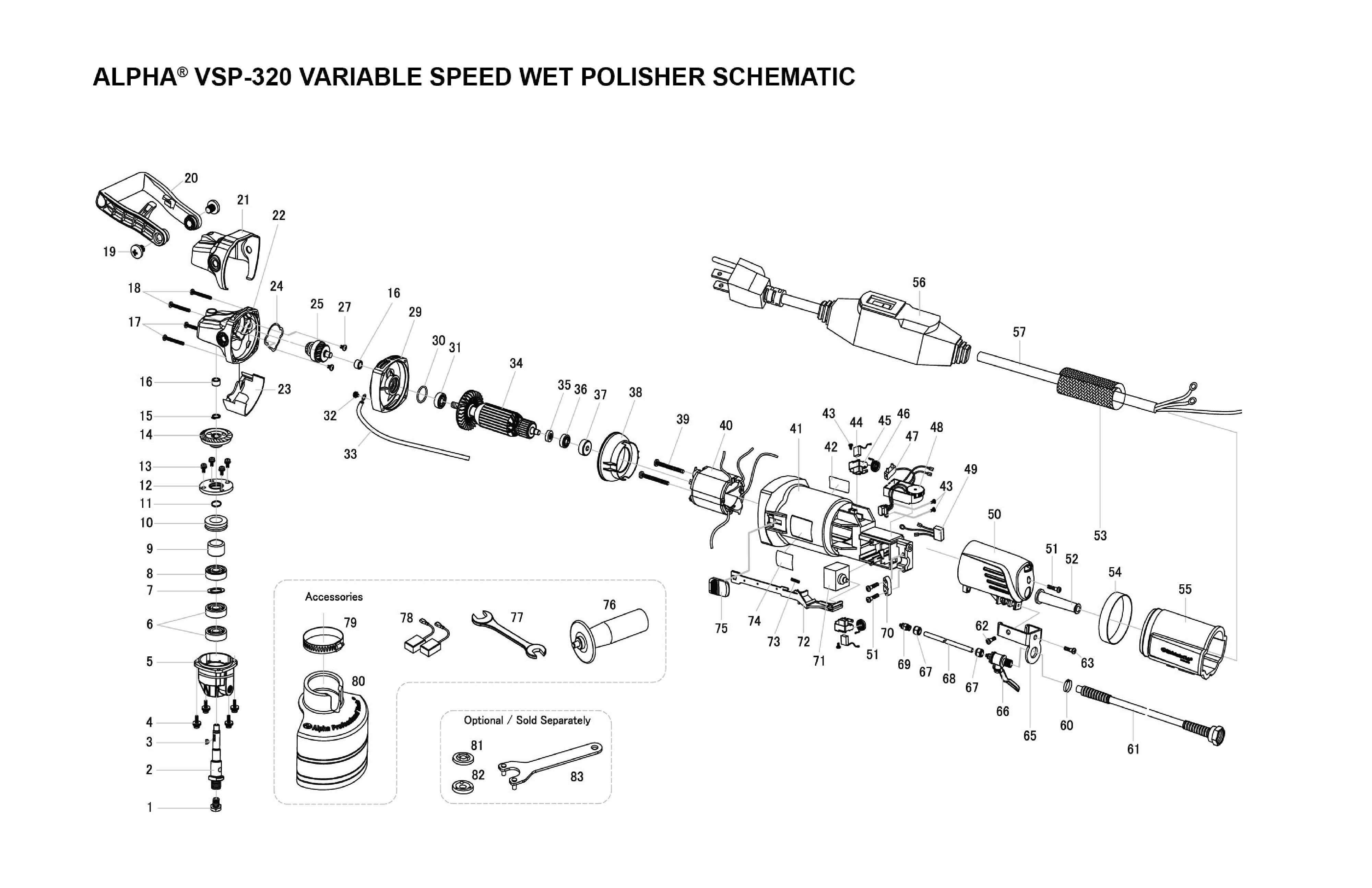

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	210004	2	Shower Bolt	4.35
2	210136	2	Output Shaft (M14)	11.76
3	210006	2	Key (3x10)	0.96
4	210111	2	Combination Screw M4x14	1.33
5	210090	2	Gear Case Cover	5.10
6	210008	2	Oil lip seal B16x28x7D	5.57
7	210009	2	Bearing Washer	0.72
8	210010	2	Ball Bearing 6201	10.47
9	210011	2	Gear Washer	1.32
10	210012	2	Thrust Bearing 15x28x6	10.99
11	210112	2	O-Ring (15x2.65)	0.25
12	210013	2	Bearing Clamp	2.78
13	210113	2	Combination Screw M5x16	1.30
14	210114	2	Gear	15.74
15	210018	2	C-clip for Shaft 10	0.15
16	210019	2	Oil-impregnated Bearing 8x12x8	1.38
17	210021	2	Self-tapping Screw 4.2x45	0.32
18	210115	2	Self-tapping Screw 4.2x40	0.35
19	210023	2	Screw M10x20	0.45
20	210024	2	C-Handle	21.11
21	210134	2	Case Plastic Cover	3.20
22	210027	2	Gear Case	7.26
23	210076	2	Dash Panel	1.38
24	210116	2	Sealing Ring	1.01
25	210117	2	Pinion Gear Sub Assembly	34.72
27	210033	2	Screw M4x8	0.15
29	210118	2	Bearing Retainer	4.46
30	210035	2	O-Ring (21.2x1.8)	0.13
31	210036	2	Ball Bearing 608	7.73
32	210119	2	Combination Screw M4x8	0.80
33	210120	2	Wire Lead (Circular lugs 4#)	1.13
34	210137	2	Armature 230V	55.18
35	210095	2	Magnetic Ring	5.43
36	210038	2	Ball Bearing 607	7.41
37	210039	2	Rubber Bearing Seat	1.46
38	210106	2	Wind Shield	1.69
39	210041	2	Self-tapping Screw 4.2x70	0.26
40	210138	2	Field Coil 230V	33.67
41	210091	2	Field Coil Case	10.92
42	210123	2	Data Label	0.38
43	210049	2	Self-tapping Screw 2.9x8	0.15
45	210046	2	Carbon Brush Holder	3.33
46	210047	2	Coil Spring	0.83
47	210094	2	Terminal Block	0.64
48	210139	2	Speed Pot w/Feed-Back Sensor 230V	35.79
49	210140	2	Capacitor 230V	CALL
50	210053	2	Rear Cover	4.91
51	210054	2	Self-tapping Screw 4.2x14	0.15
52	210055	2	Cord Jacket	0.73
53	210124	2	Memory Wrap (3ft./1m)	11.83
54	210108	2	Rubber Band	0.66
55	210107	2	Ventilation Cap	9.38
56	210141	2	GFCI 230V	57.38
57	210142	2	Power Supply Cord 230V	16.74
60	210128	2	Band Clamp 8-12	0.93
61	210129	2	Water Hose Assembly (15ft./5m)	32.60
63	210078	2	Self-tapping Screw 4.2x10	0.32
64	210131	2	Water Hose Connector	CALL
65	210063	2	Water Valve Bracket	1.51
66	210064	2	Water Valve Assembly	7.66
67	210132	2	Nut M10	3.85
68	210065	2	Water Hose 6mm ODx8in (20cm)	0.73
69	210067	2	Outlet Tap	2.10
70	210066	2	Cord Clamp	0.25
71	210068	2	Switch	4.62
72	210070	2	Switch Push Lever	0.59
73	210069	2	Back Moving Spring	0.12
74	210133	2	Brand Label	0.50
75	210071	2	Switch Push Button	0.46
76	210074	2	Side Handle	8.00
77	210110	2	Double Open End Wrench (17mm-19mm)	8.92
78	210083	2	Carbon Brush 230V Set	8.32
79	210088	2	Band Clamp 40-63	3.48
80	210089	2	Splash Guard	15.51

SPARE PARTS

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	210004	2	Shower Bolt	4.35
2	210136	2	Output Shaft (M14)	11.76
3	210006	2	Key (3x10)	0.96
4	210111	2	Combination Screw M4x14	1.33
5	210090	2	Gear Case Cover	5.10
6	210008	2	Oil lip seal B16x28x7D	5.57
7	210009	2	Bearing Washer	0.72
8	210010	2	Ball Bearing 6201	10.47
9	210011	2	Gear Washer	1.32
10	210012	2	Thrust Bearing 15x28x6	10.99
11	210112	2	O-Ring (15x2.65)	0.25
12	210013	2	Bearing Clamp	2.78
13	210113	2	Combination Screw M5x16	1.30
14	210114	2	Gear	15.74
15	210018	2	C-clip for Shaft 10	0.15
16	210019	2	Oil-impregnated Bearing 8x12x8	1.38
17	210021	2	Self-tapping Screw 4.2x45	0.32
18	210115	2	Self-tapping Screw 4.2x40	0.35
19	210023	2	Screw M10x20	0.45
20	210024	2	C-Handle	21.11
21	210134	2	Case Plastic Cover	3.20
22	210027	2	Gear Case	7.26
23	210076	2	Dash Panel	1.38
24	210116	2	Sealing Ring	1.01
25	210117	2	Pinion Gear Sub Assembly	34.72
27	210033	2	Screw M4x8	0.15
29	210118	2	Bearing Retainer	4.46
30	210035	2	O-Ring (21.2x1.8)	0.13
31	210036	2	Ball Bearing 608	7.73
32	210119	2	Combination Screw M4x8	0.80
33	210120	2	Wire Lead (Circular lugs 4#)	1.13
34	210137	2	Armature 230V	55.18
35	210095	2	Magnetic Ring	5.43
36	210038	2	Ball Bearing 607	7.41
37	210039	2	Rubber Bearing Seat	1.46
38	210106	2	Wind Shield	1.69
39	210041	2	Self-tapping Screw 4.2x70	0.26
40	210138	2	Field Coil 230V	33.67
41	210091	2	Field Coil Case	10.92
42	210123	2	Data Label	0.38
43	210049	2	Self-tapping Screw 2.9x8	0.15
45	210046	2	Carbon Brush Holder	3.33
46	210047	2	Coil Spring	0.83
47	210094	2	Terminal Block	0.64
48	210139	2	Speed Pot w/Feed-Back Sensor 230V	35.79
49	210140	2	Capacitor 230V	CALL
50	210053	2	Rear Cover	4.91
51	210054	2	Self-tapping Screw 4.2x14	0.15
52	210055	2	Cord Jacket	0.73
53	210124	2	Memory Wrap (3ft./1m)	11.83
54	210108	2	Rubber Band	0.66
55	210107	2	Ventilation Cap	9.38
56	210141	2	GFCI 230V	57.38
57	210142	2	Power Supply Cord 230V	16.74
60	210128	2	Band Clamp 8-12	0.93
61	210129	2	Water Hose Assembly (15ft./5m)	32.60
63	210078	2	Self-tapping Screw 4.2x10	0.32
64	210131	2	Water Hose Connector	CALL
65	210063	2	Water Valve Bracket	1.51
66	210064	2	Water Valve Assembly	7.66
67	210132	2	Nut M10	3.85
68	210065	2	Water Hose 6mm ODx8in (20cm)	0.73
69	210067	2	Outlet Tap	2.10
70	210066	2	Cord Clamp	0.25
71	210068	2	Switch	4.62
72	210070	2	Switch Push Lever	0.59
73	210069	2	Back Moving Spring	0.12
74	210133	2	Brand Label	0.50
75	210071	2	Switch Push Button	0.46
76	210074	2	Side Handle	8.00
77	210110	2	Double Open End Wrench (17mm-19mm)	8.92
78	210083	2	Carbon Brush 230V Set	8.32
79	210088	2	Band Clamp 40-63	3.48
80	210089	2	Splash Guard	15.51

DOCUMENTATION

Manual :	VSP-340_v1_manual.pdf
Flyer :	VSP-320-Polisher-Comparison-Chart.pdf
Flyer :	VSP-320_flyer.pdf
