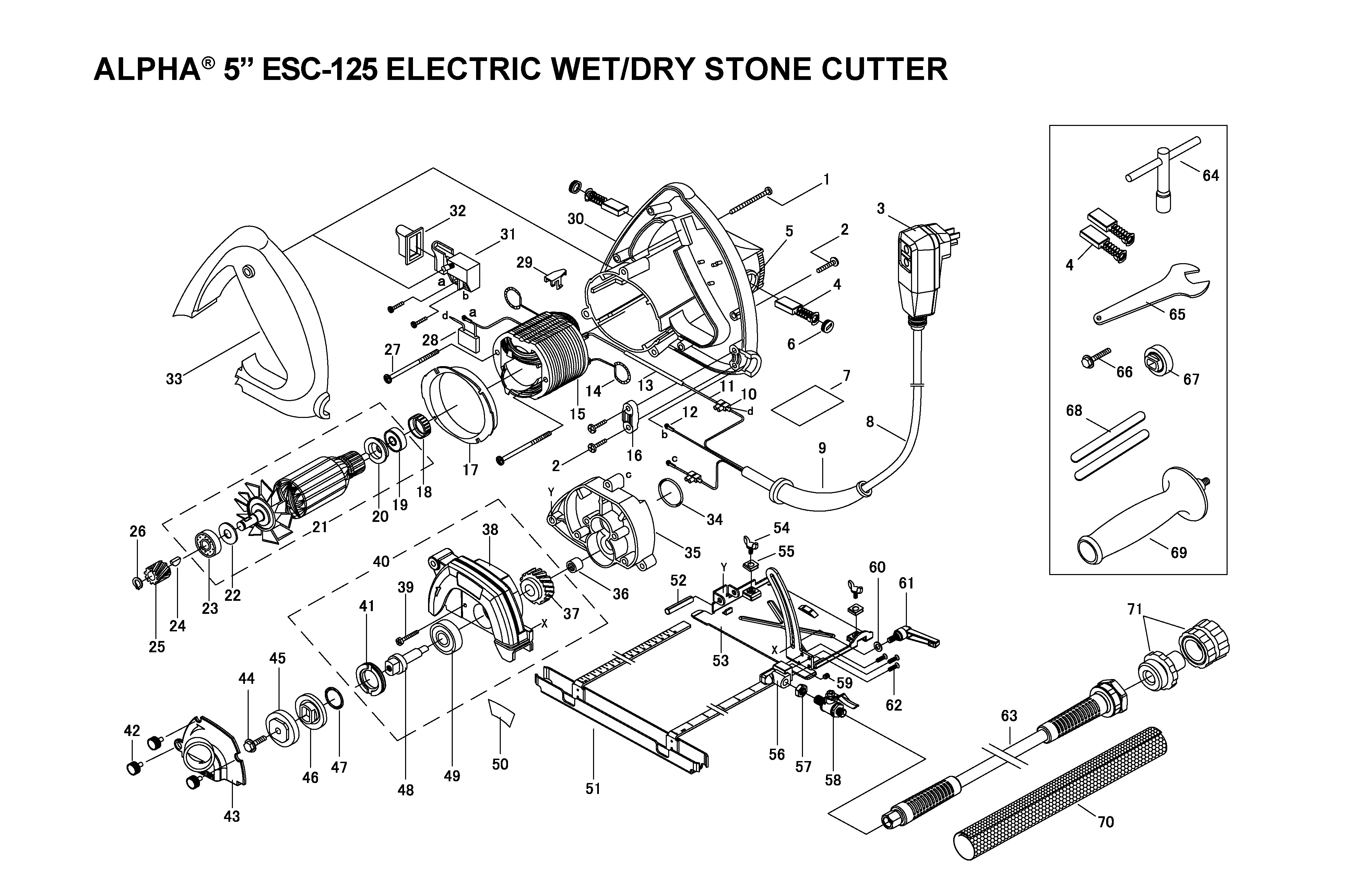

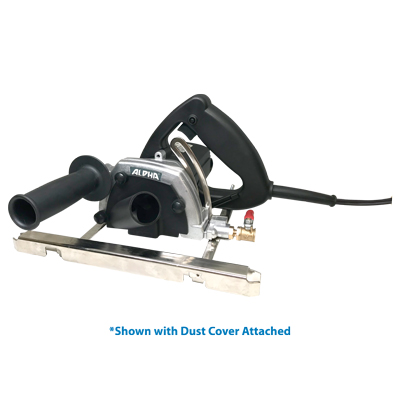

ESC-125/225 Spare Parts

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	133080	1	Screw M5x40	1.64
2	130031	1	Self-tapping Screw 3.9x19	0.49
3	133289	1	GFCI 110V	57.23
3	133292	1	GFCI 220V	54.52
4	133033	1	Carbon Brush (2 pc set)	12.55
5	133031	1	Brush Holder	3.18
6	133032	1	Brush Cap	2.23
7	133397	1	Rated Plate 110V	0.81
7	133398	1	Rated Plate 220V	0.81
8	133403	1	Cable 220V (15ft./5m)	37.70
8	133396	1	Cable 110V (15ft./5m)	37.70
9	133047	1	Cable Sleeve	1.91
10	130618	1	Block Terminal	0.88
11	133039	1	Field Line	0.54
12	133282	1	Wire Terminal RV2-4	0.29
13	133042	1	Insulation Pipe	0.57
14	133034	1	Brush Terminal Assembly	3.28
15	133436	1	Field Coil 110V	66.90
15	133004	1	Field Coil 220V	66.90
16	133086	1	Cable Clamp	0.40
17	133030	1	Air Bridge	1.59
18	133028	1	Bearing Sleeve	1.38
19	133025	1	Bearing 608-2RZ	10.39
20	133024	1	Insulation Disc	0.88
21	133439	1	Armature 110V	80.00
21	133012	1	Armature 220V	80.00
22	133026	1	Bearing Cover	0.45
23	133027	1	Bearing 629-2RZ	10.05
24	133050	1	Woodruff Key	0.85
25	133048	1	Gear (Small)	15.25
26	133051	1	Snap Ring (M8)	0.29
27	133029	1	Self-tapping Screw 4.8x65	0.87
28	133392	1	Condenser Assembly	1.86
29	133041	1	Cable Clip	0.59
30	133628	1	Rear Motor Housing	22.86
31	133043	1	Switch (with Screw)	25.36
32	133044	1	Rubber Switch Cover	1.12
33	133635	1	Handle	6.05
34	133067	1	O-Ring (25.5x2)	0.39
35	133255	1	Gear Box	21.35
36	133066	1	Needle Bearing Bk 0810	10.15
37	133058	1	Gear (Big)	18.05
38	133371	1	Blade Guard	22.19
39	133079	1	Screw M4x25	1.64
40	133399	1	Spindle Assembly	77.03
41	133060	1	Screw Cap	3.18
42	133771	1	Knob Bolt (M5x10)	5.95
43	133770	1	Dust Cover	17.07
44	133464	1	Screw (M6x20-Left)	2.64
45	133419	1	Flange-2	6.51
46	133440	1	Flange-1	6.59
47	133062	1	O-Ring (18x2.5)	0.40
48	133057	1	Spindle (for AWS-125)	15.54
49	133053	1	Bearing 6201-2RS	16.32
50	133401	1	Brand Label ESC-125	0.81
51	133416	1	TT Ruler Guide (for AWS-125)	16.04
52	133085	1	Pin 6x28	0.40
53	133374	1	Base Plate Assembly	47.31
54	133084	1	Wing Screw	1.71
55	133269	1	Washer For Ruler	1.12
56	133373	1	Aluminum Manifold	11.20
57	133379	1	Hexagon Nut (M10xP1.0)	2.72
58	133378	1	Water Control Valve	9.87
59	133402	1	Pipe Plug (6.5L)	2.04
60	133071	1	Flat Washer M6	0.31
61	133375	1	Lock Handle (M6x12)	12.55
62	133382	1	SS Flat Head Screw (M4x10)	0.40
63	210129	1	Water Hose Assembly (15ft./5m)	36.28
64	133098	1	T-Handle Wrench	3.28
65	133097	1	Spanner Wrench M 22	3.92
66	133463	1	Screw (M6x30-Left)	2.66
67	133432	1	Flange-3	6.51
68	133369	1	Felt Strip Set	2.45
69	801086	1	Side Handle (for AWS-125/ECC-125)	12.08
70	210124	1	Memory Wrap (3ft./1m)	18.93
71	658-113	1	Water Quick Coupler with Shut off Valve	20.12
71	658-113	2	Water Quick Coupler with Shut off Valve	20.12

SPARE PARTS

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	133080	1	Screw M5x40	1.64
2	130031	1	Self-tapping Screw 3.9x19	0.49
3	133289	1	GFCI 110V	57.23
3	133292	1	GFCI 220V	54.52
4	133033	1	Carbon Brush (2 pc set)	12.55
5	133031	1	Brush Holder	3.18
6	133032	1	Brush Cap	2.23
7	133397	1	Rated Plate 110V	0.81
7	133398	1	Rated Plate 220V	0.81
8	133403	1	Cable 220V (15ft./5m)	37.70
8	133396	1	Cable 110V (15ft./5m)	37.70
9	133047	1	Cable Sleeve	1.91
10	130618	1	Block Terminal	0.88
11	133039	1	Field Line	0.54
12	133282	1	Wire Terminal RV2-4	0.29
13	133042	1	Insulation Pipe	0.57
14	133034	1	Brush Terminal Assembly	3.28
15	133436	1	Field Coil 110V	66.90
15	133004	1	Field Coil 220V	66.90
16	133086	1	Cable Clamp	0.40
17	133030	1	Air Bridge	1.59
18	133028	1	Bearing Sleeve	1.38
19	133025	1	Bearing 608-2RZ	10.39
20	133024	1	Insulation Disc	0.88
21	133439	1	Armature 110V	80.00
21	133012	1	Armature 220V	80.00
22	133026	1	Bearing Cover	0.45
23	133027	1	Bearing 629-2RZ	10.05
24	133050	1	Woodruff Key	0.85
25	133048	1	Gear (Small)	15.25
26	133051	1	Snap Ring (M8)	0.29
27	133029	1	Self-tapping Screw 4.8x65	0.87
28	133392	1	Condenser Assembly	1.86
29	133041	1	Cable Clip	0.59
30	133628	1	Rear Motor Housing	22.86
31	133043	1	Switch (with Screw)	25.36
32	133044	1	Rubber Switch Cover	1.12
33	133635	1	Handle	6.05
34	133067	1	O-Ring (25.5x2)	0.39
35	133255	1	Gear Box	21.35
36	133066	1	Needle Bearing Bk 0810	10.15
37	133058	1	Gear (Big)	18.05
38	133371	1	Blade Guard	22.19
39	133079	1	Screw M4x25	1.64
40	133399	1	Spindle Assembly	77.03
41	133060	1	Screw Cap	3.18
42	133771	1	Knob Bolt (M5x10)	5.95
43	133770	1	Dust Cover	17.07
44	133464	1	Screw (M6x20-Left)	2.64
45	133419	1	Flange-2	6.51
46	133440	1	Flange-1	6.59
47	133062	1	O-Ring (18x2.5)	0.40
48	133057	1	Spindle (for AWS-125)	15.54
49	133053	1	Bearing 6201-2RS	16.32
50	133401	1	Brand Label ESC-125	0.81
51	133416	1	TT Ruler Guide (for AWS-125)	16.04
52	133085	1	Pin 6x28	0.40
53	133374	1	Base Plate Assembly	47.31
54	133084	1	Wing Screw	1.71
55	133269	1	Washer For Ruler	1.12
56	133373	1	Aluminum Manifold	11.20
57	133379	1	Hexagon Nut (M10xP1.0)	2.72
58	133378	1	Water Control Valve	9.87
59	133402	1	Pipe Plug (6.5L)	2.04
60	133071	1	Flat Washer M6	0.31
61	133375	1	Lock Handle (M6x12)	12.55
62	133382	1	SS Flat Head Screw (M4x10)	0.40
63	210129	1	Water Hose Assembly (15ft./5m)	36.28
64	133098	1	T-Handle Wrench	3.28
65	133097	1	Spanner Wrench M 22	3.92
66	133463	1	Screw (M6x30-Left)	2.66
67	133432	1	Flange-3	6.51
68	133369	1	Felt Strip Set	2.45
69	801086	1	Side Handle (for AWS-125/ECC-125)	12.08
70	210124	1	Memory Wrap (3ft./1m)	18.93
71	658-113	1	Water Quick Coupler with Shut off Valve	20.12
71	658-113	2	Water Quick Coupler with Shut off Valve	20.12
