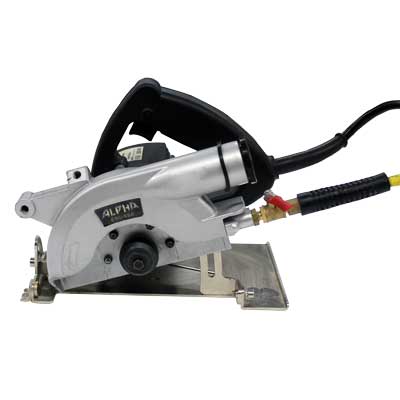

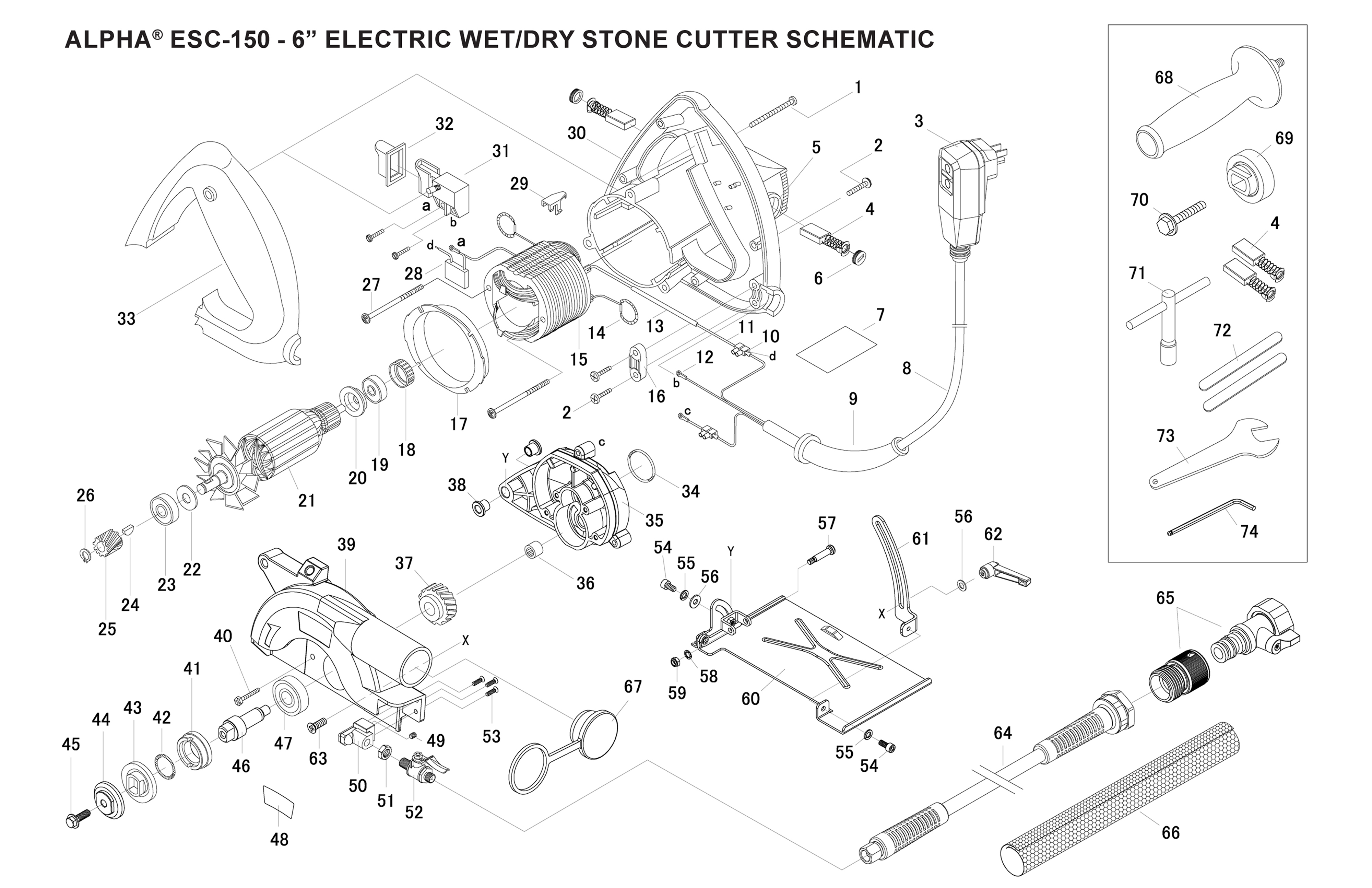

ESC-150/250 Spare Parts

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	133080	1	Screw M5x40	1.97
3	133289	1	GFCI 110V	68.68
3	133292	1	GFCI 220V	65.42
4	133033	1	Carbon Brush (2 pc set)	15.06
5	133031	1	Brush Holder	3.82
6	133032	1	Brush Cap	2.68
7	133397	1	Rated Plate 110V	0.97
7	133398	1	Rated Plate 220V	0.81
8	133396	1	Cable 110V (15ft./5m)	45.24
8	133403	1	Cable 220V (15ft./5m)	45.24
9	133047	1	Cable Sleeve	2.29
10	130618	1	Block Terminal	0.88
11	133039	1	Field Line	0.65
12	133282	1	Wire Terminal RV2-4	0.35
13	133042	1	Insulation Pipe	0.68
14	133034	1	Brush Terminal Assembly	3.94
15	133436	1	Field Coil 110V	80.28
15	133004	1	Field Coil 220V	80.28
16	133086	1	Cable Clamp	0.48
17	133030	1	Air Bridge	1.91
18	133028	1	Bearing Sleeve	1.66
19	133025	1	Bearing 608-2RZ	12.47
20	133024	1	Insulation Disc	1.06
21	133439	1	Armature 110V	96.00
21	133012	1	Armature 220V	96.00
22	133026	1	Bearing Cover	0.54
23	133027	1	Bearing 629-2RZ	12.06
24	133050	1	Woodruff Key	1.02
25	133048C	1	Gear (Small)	18.60
26	133051	1	Snap Ring (M8)	0.35
27	133029	1	Self-tapping Screw 4.8x65	1.04
28	133392	1	Condenser Assembly	2.23
29	133041	1	Cable Clip	0.71
30	133628	1	Rear Motor Housing	27.43
31	133043	1	Switch (with Screw)	30.43
32	133044	1	Rubber Switch Cover	1.34
33	133635	1	Handle	7.26
34	133067	1	O-Ring (25.5x2)	0.47
35	190703	1	Gear Housing	22.25
36	133066	1	Needle Bearing Bk 0810	12.18
37	133058C	1	Gear (Big)	21.90
38	190704	1	Flange Sleeve Bushing	5.00
39	133079	1	Screw M4x25	1.97
50	190702	1	Blade Guard (Silver)	26.70
40	133079	1	Screw M4x25	1.97
41	200202	1	Screw Cap	4.13
42	133062	1	O-Ring (18x2.5)	0.48
43	200201	1	Flange Inner	7.92
44	190705	1	Flange Outer	7.92
45	133464	1	Screw (M6x20-Left)	3.17
46	190706	1	Spindle	19.80
47	133053	1	Bearing 6201-2RS	19.58
48	133818	1	Brand Label	0.55
49	133402	1	Pipe Plug (6.5L)	2.45
50	190701	1	Aluminum Manifold (Silver)	11.12
51	133379	1	Hexagon Nut (M10xP1.0)	3.26
52	133378	1	Water Control Valve	11.84
53	133382	1	SS Flat Head Screw (M4x10)	0.48
54	133819	1	SS Cap Screw (M6x15)	0.67
55	133820	1	SS Spring Lock Washer (M6)	0.34
56	133821	1	SS Flat Washer (M6)	0.37
57	190712	1	Shoulder Bolt	8.02
58	133823	1	Tooth Washer (M6)	0.55
59	133824	1	Nylon Lock Nut (M6)	0.55
60	190708	1	Base Plate Assembly	57.90
61	190711	1	Positioning Plate	13.74
63	133834	1	Lock Handle (M6)	5.28
64	210129	1	Water Hose Assembly (15ft./5m)	36.28
65	658-113	1	Water Quick Coupler with Shut off Valve	20.12
66	210124	1	Memory Wrap (3ft./1m) (18mm)	22.72
67	133829	1	End Cap	7.19
68	133837	1	Side Handle	14.94
69	200203	1	Flange-3	7.80
70	133463	1	Screw (M6x30-Left)	3.19
71	133098	1	T-Handle Wrench	3.94
72	133369	1	Felt Strip Set	2.94
73	133833	1	Spanner Wrench (17mm)	4.86
74	133836	1	Hex. Wrench (5mm)	4.20

SPARE PARTS

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	133080	1	Screw M5x40	1.97
3	133289	1	GFCI 110V	68.68
3	133292	1	GFCI 220V	65.42
4	133033	1	Carbon Brush (2 pc set)	15.06
5	133031	1	Brush Holder	3.82
6	133032	1	Brush Cap	2.68
7	133397	1	Rated Plate 110V	0.97
7	133398	1	Rated Plate 220V	0.81
8	133396	1	Cable 110V (15ft./5m)	45.24
8	133403	1	Cable 220V (15ft./5m)	45.24
9	133047	1	Cable Sleeve	2.29
10	130618	1	Block Terminal	0.88
11	133039	1	Field Line	0.65
12	133282	1	Wire Terminal RV2-4	0.35
13	133042	1	Insulation Pipe	0.68
14	133034	1	Brush Terminal Assembly	3.94
15	133436	1	Field Coil 110V	80.28
15	133004	1	Field Coil 220V	80.28
16	133086	1	Cable Clamp	0.48
17	133030	1	Air Bridge	1.91
18	133028	1	Bearing Sleeve	1.66
19	133025	1	Bearing 608-2RZ	12.47
20	133024	1	Insulation Disc	1.06
21	133439	1	Armature 110V	96.00
21	133012	1	Armature 220V	96.00
22	133026	1	Bearing Cover	0.54
23	133027	1	Bearing 629-2RZ	12.06
24	133050	1	Woodruff Key	1.02
25	133048C	1	Gear (Small)	18.60
26	133051	1	Snap Ring (M8)	0.35
27	133029	1	Self-tapping Screw 4.8x65	1.04
28	133392	1	Condenser Assembly	2.23
29	133041	1	Cable Clip	0.71
30	133628	1	Rear Motor Housing	27.43
31	133043	1	Switch (with Screw)	30.43
32	133044	1	Rubber Switch Cover	1.34
33	133635	1	Handle	7.26
34	133067	1	O-Ring (25.5x2)	0.47
35	190703	1	Gear Housing	22.25
36	133066	1	Needle Bearing Bk 0810	12.18
37	133058C	1	Gear (Big)	21.90
38	190704	1	Flange Sleeve Bushing	5.00
39	133079	1	Screw M4x25	1.97
50	190702	1	Blade Guard (Silver)	26.70
40	133079	1	Screw M4x25	1.97
41	200202	1	Screw Cap	4.13
42	133062	1	O-Ring (18x2.5)	0.48
43	200201	1	Flange Inner	7.92
44	190705	1	Flange Outer	7.92
45	133464	1	Screw (M6x20-Left)	3.17
46	190706	1	Spindle	19.80
47	133053	1	Bearing 6201-2RS	19.58
48	133818	1	Brand Label	0.55
49	133402	1	Pipe Plug (6.5L)	2.45
50	190701	1	Aluminum Manifold (Silver)	11.12
51	133379	1	Hexagon Nut (M10xP1.0)	3.26
52	133378	1	Water Control Valve	11.84
53	133382	1	SS Flat Head Screw (M4x10)	0.48
54	133819	1	SS Cap Screw (M6x15)	0.67
55	133820	1	SS Spring Lock Washer (M6)	0.34
56	133821	1	SS Flat Washer (M6)	0.37
57	190712	1	Shoulder Bolt	8.02
58	133823	1	Tooth Washer (M6)	0.55
59	133824	1	Nylon Lock Nut (M6)	0.55
60	190708	1	Base Plate Assembly	57.90
61	190711	1	Positioning Plate	13.74
63	133834	1	Lock Handle (M6)	5.28
64	210129	1	Water Hose Assembly (15ft./5m)	36.28
65	658-113	1	Water Quick Coupler with Shut off Valve	20.12
66	210124	1	Memory Wrap (3ft./1m) (18mm)	22.72
67	133829	1	End Cap	7.19
68	133837	1	Side Handle	14.94
69	200203	1	Flange-3	7.80
70	133463	1	Screw (M6x30-Left)	3.19
71	133098	1	T-Handle Wrench	3.94
72	133369	1	Felt Strip Set	2.94
73	133833	1	Spanner Wrench (17mm)	4.86
74	133836	1	Hex. Wrench (5mm)	4.20
