Alpha Professional Tools® :: PSP-158/114/114N Spare Parts

PSP-158/114/114N Spare Parts

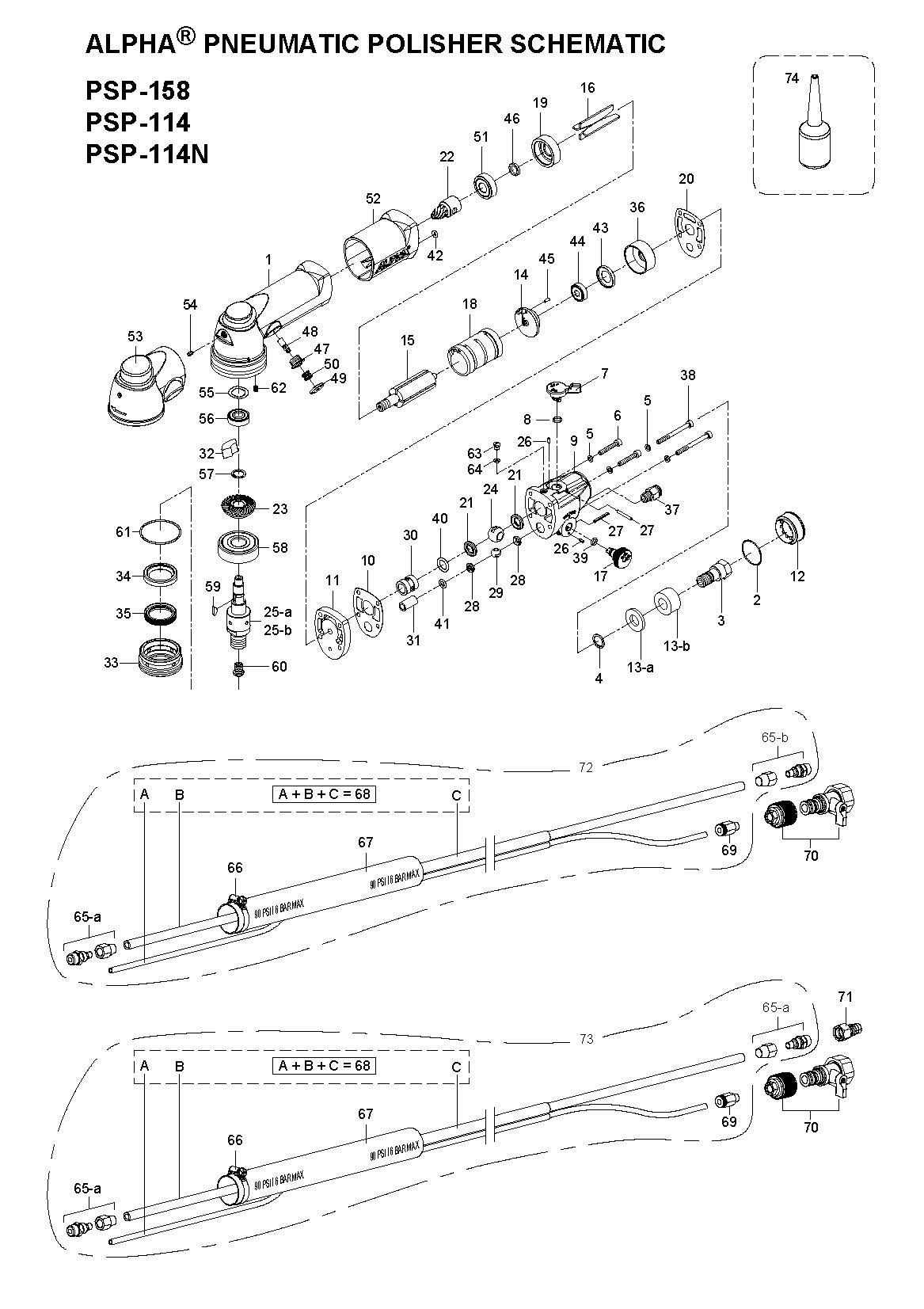

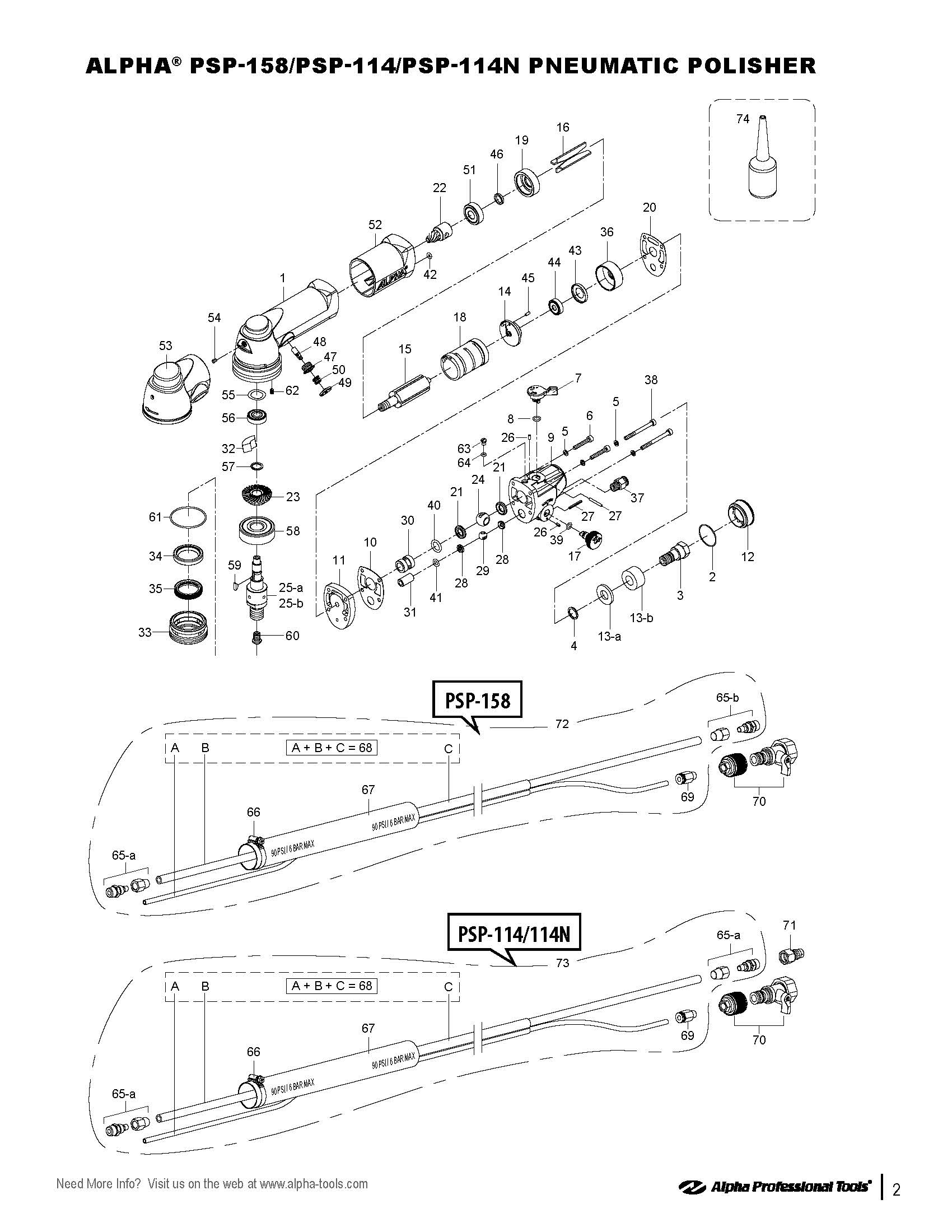

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	3003-0001	1	Body	69.75
2	3003-0002	1	O-Ring (25x1)	1.45
3	3003-0003	1	Air Inlet (G1/4" - 19)	14.25
4	3003-0004	1	Snap Ring (ISTW-12)	0.56
5	3003-0005	1	Spring Washer (M4)	0.80
6	3003-0006	1	Socket Head Screw (M4x25L)	0.95
7	3003-0007	1	Air Valve Lever (inc. Part No. 3003-0008)	10.25
8	3003-0008	1	O-Ring (6.5x1.5)	1.55
9	3003-0009	1	End Case	60.75
10	3003-0010	1	Body Gasket	2.35
11	3003-0011	1	Spacer	11.81
12	3003-0012	1	Exhaust Cover	1.52
13	3003-0013	1	Muffler (14.2 x 24.8 x 3T)	2.25
13	3003-0070	1	Muffler (15 x 23 x 9T)	2.50
14	3003-0014	1	Rear Bearing Case	22.50
15	3003-0015	1	Rotor	37.20
16	3003-0016	1	Vane (4pc Set)	25.15
17	3003-0017	1	Water Valve (inc Part No. 3003-0039)	25.85
18	3003-0018	1	Cylinder	76.00
19	3003-0019	1	Front Bearing Case	23.75
20	3003-0020	1	Body Gasket	2.20
21	3003-0021	1	Air Ball Seat	13.25
22	3003-0022	1	Spiral Bevel Pinion Gear	25.60
23	3003-0023	1	Spiral Bevel Gear	43.45
24	3003-0024	1	Air Ball	9.90
25	3003-0025	1	Spindle (5/8-11 UNC)	46.25
25	3003-0026	1	Spindle (M14 x 2.0P)	46.25
26	3002-0025	1	Spring Pin (2.5x5)	0.76
27	3003-0027	1	Spring Pin (2.5 x 20L)	0.80
28	3003-0028	1	Water Ball Seat	14.80
29	3003-0029	1	Water Ball	10.10
30	3003-0030	1	Air Spacer	8.25
31	3003-0031	1	Water Spacer	5.05
32	3003-0032	1	Oil Felt	6.75
33	3003-0033	1	Spindle Lock Nut	39.75
34	3003-0034	1	Seal (SC 25 x 35 x 6)	19.50
35	3003-0035	1	Seal (SC 25 x 33 x 6)	19.50
36	3003-0036	1	Air Inlet Case	7.05
37	3003-0037	1	Water Push to Connect Fitting (6mm OD)	4.11
38	3003-0038	1	Socket Head Screw (M4 x 50L)	0.95
39	3003-0039	1	O-Ring (5 x 1.6)	1.45
40	3003-0040	1	O-Ring (10.5 x 2.7)	1.45
41	3003-0041	1	O-Ring (5.8 x 1.9)	1.45
42	3003-0042	1	O-Ring (3.8 x 1.9)	1.45
43	3003-0043	1	Bearing Cap	4.75
44	3003-0044	1	Ball Bearing (626ZZ)	16.39
45	3003-0045	1	Spring Pin (2.5 x 6L)	0.56
46	3003-0046	1	Rotor Spacer	4.25
47	3003-0047	1	Spindle Lock Threaded Insert	9.84
48	3003-0048	1	Stop Button Pin	8.44
49	3003-0049	1	Button Seat	8.44
50	3003-0050	1	Spring	1.69
51	3003-0051	1	Ball Bearing (6000ZZ)	19.12
52	3003-0052	1	Body Cover	17.10
53	3003-0053	1	Silicon Head Cover	19.60
54	3002-0016	1	Lubricator	1.55
55	3003-0054	1	Wave Washer (BWW608)	1.80
56	3003-0055	1	Ball Bearing (608ZZ)	11.86
57	3003-0056	1	Snap Ring (ISTW-11)	0.56
58	3003-0057	1	Ball Bearing (6302ZZ)	12.73
59	3003-0058	1	Woodruff Key	1.55
60	3003-0059	1	Spray Nozzle	8.10
61	3003-0060	1	O-Ring (40x1.5)	1.45
62	3003-0061	1	Insert Screw (M4x 6L)	0.56
63	3003-0062	1	Oil Port Screw (inc Part No. 3003-0040)	4.50
64	3002-0040	1	O-Ring (3.5x1.5)	0.58
65	3003-0063	1	Fitting W/Comp Nut 1/4"-19 BSPT	6.16
65	3003-0064	1	Fitting W/Comp Nut 1/4"-18 NPT	6.16
66	3003-0065	1	Hose Clamp SS (25-35mm)	3.02
67	3003-0066	1	Exhaust Hose 1m (PSP Only)	15.50
69	3003-0067	1	Push-In Connector 1/8"-28 BSPT	4.16
70	3003-0068	1	Quick Connector w/Shut-Off Valve Assem	33.56
71	3003-0069	1	Nitto Coupler (PSP-114N Only)	2.89
68	1030-2000	1	Twin-Hose W/Outer Tube (Spool)	CALL
72	1030-0200	1	30' Compl Twin Water/Air Hose Assem-PSP-158	131.88
73	1030-0201	1	30' Compl Twin Water/Air Hose Assem-PSP-114	131.88
74	AIR-008	1	Rust Inhibitor Oil (8oz / 237ml)	12.43
75	ST071	1	Rotor Assy Remover For Air tool	29.95
76	ST072	1	Pinion Gear Remover For AIR-680, PSP-158	29.95
77	ST074	1	Pin Wrench For Spindle Nut-PSP	38.95
78	ST075	1	Body Holder For PSP	94.95
79	ST076	1	Rotor Assy Jig For PSP	23.95
80	ST077	1	Ball Valve Assem Tool For PSP	28.95
81	ST078	1	Button Seat Remover For PSP	42.95
82	ST079	1	Water Seal 1 Insert Tool For PSP	23.95
83	ST080	1	Water Seal 2 Insert Tool For PSP	23.95
84	ST081	1	Pinion Gear Wrench For PSP	52.95

SPARE PARTS

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	3003-0001	1	Body	69.75
2	3003-0002	1	O-Ring (25x1)	1.45
3	3003-0003	1	Air Inlet (G1/4" - 19)	14.25
4	3003-0004	1	Snap Ring (ISTW-12)	0.56
5	3003-0005	1	Spring Washer (M4)	0.80
6	3003-0006	1	Socket Head Screw (M4x25L)	0.95
7	3003-0007	1	Air Valve Lever (inc. Part No. 3003-0008)	10.25
8	3003-0008	1	O-Ring (6.5x1.5)	1.55
9	3003-0009	1	End Case	60.75
10	3003-0010	1	Body Gasket	2.35
11	3003-0011	1	Spacer	11.81
12	3003-0012	1	Exhaust Cover	1.52
13	3003-0013	1	Muffler (14.2 x 24.8 x 3T)	2.25
13	3003-0070	1	Muffler (15 x 23 x 9T)	2.50
14	3003-0014	1	Rear Bearing Case	22.50
15	3003-0015	1	Rotor	37.20
16	3003-0016	1	Vane (4pc Set)	25.15
17	3003-0017	1	Water Valve (inc Part No. 3003-0039)	25.85
18	3003-0018	1	Cylinder	76.00
19	3003-0019	1	Front Bearing Case	23.75
20	3003-0020	1	Body Gasket	2.20
21	3003-0021	1	Air Ball Seat	13.25
22	3003-0022	1	Spiral Bevel Pinion Gear	25.60
23	3003-0023	1	Spiral Bevel Gear	43.45
24	3003-0024	1	Air Ball	9.90
25	3003-0025	1	Spindle (5/8-11 UNC)	46.25
25	3003-0026	1	Spindle (M14 x 2.0P)	46.25
26	3002-0025	1	Spring Pin (2.5x5)	0.76
27	3003-0027	1	Spring Pin (2.5 x 20L)	0.80
28	3003-0028	1	Water Ball Seat	14.80
29	3003-0029	1	Water Ball	10.10
30	3003-0030	1	Air Spacer	8.25
31	3003-0031	1	Water Spacer	5.05
32	3003-0032	1	Oil Felt	6.75
33	3003-0033	1	Spindle Lock Nut	39.75
34	3003-0034	1	Seal (SC 25 x 35 x 6)	19.50
35	3003-0035	1	Seal (SC 25 x 33 x 6)	19.50
36	3003-0036	1	Air Inlet Case	7.05
37	3003-0037	1	Water Push to Connect Fitting (6mm OD)	4.11
38	3003-0038	1	Socket Head Screw (M4 x 50L)	0.95
39	3003-0039	1	O-Ring (5 x 1.6)	1.45
40	3003-0040	1	O-Ring (10.5 x 2.7)	1.45
41	3003-0041	1	O-Ring (5.8 x 1.9)	1.45
42	3003-0042	1	O-Ring (3.8 x 1.9)	1.45
43	3003-0043	1	Bearing Cap	4.75
44	3003-0044	1	Ball Bearing (626ZZ)	16.39
45	3003-0045	1	Spring Pin (2.5 x 6L)	0.56
46	3003-0046	1	Rotor Spacer	4.25
47	3003-0047	1	Spindle Lock Threaded Insert	9.84
48	3003-0048	1	Stop Button Pin	8.44
49	3003-0049	1	Button Seat	8.44
50	3003-0050	1	Spring	1.69
51	3003-0051	1	Ball Bearing (6000ZZ)	19.12
52	3003-0052	1	Body Cover	17.10
53	3003-0053	1	Silicon Head Cover	19.60
54	3002-0016	1	Lubricator	1.55
55	3003-0054	1	Wave Washer (BWW608)	1.80
56	3003-0055	1	Ball Bearing (608ZZ)	11.86
57	3003-0056	1	Snap Ring (ISTW-11)	0.56
58	3003-0057	1	Ball Bearing (6302ZZ)	12.73
59	3003-0058	1	Woodruff Key	1.55
60	3003-0059	1	Spray Nozzle	8.10
61	3003-0060	1	O-Ring (40x1.5)	1.45
62	3003-0061	1	Insert Screw (M4x 6L)	0.56
63	3003-0062	1	Oil Port Screw (inc Part No. 3003-0040)	4.50
64	3002-0040	1	O-Ring (3.5x1.5)	0.58
65	3003-0063	1	Fitting W/Comp Nut 1/4"-19 BSPT	6.16
65	3003-0064	1	Fitting W/Comp Nut 1/4"-18 NPT	6.16
66	3003-0065	1	Hose Clamp SS (25-35mm)	3.02
67	3003-0066	1	Exhaust Hose 1m (PSP Only)	15.50
69	3003-0067	1	Push-In Connector 1/8"-28 BSPT	4.16
70	3003-0068	1	Quick Connector w/Shut-Off Valve Assem	33.56
71	3003-0069	1	Nitto Coupler (PSP-114N Only)	2.89
68	1030-2000	1	Twin-Hose W/Outer Tube (Spool)	CALL
72	1030-0200	1	30' Compl Twin Water/Air Hose Assem-PSP-158	131.88
73	1030-0201	1	30' Compl Twin Water/Air Hose Assem-PSP-114	131.88
74	AIR-008	1	Rust Inhibitor Oil (8oz / 237ml)	12.43
75	ST071	1	Rotor Assy Remover For Air tool	29.95
76	ST072	1	Pinion Gear Remover For AIR-680, PSP-158	29.95
77	ST074	1	Pin Wrench For Spindle Nut-PSP	38.95
78	ST075	1	Body Holder For PSP	94.95
79	ST076	1	Rotor Assy Jig For PSP	23.95
80	ST077	1	Ball Valve Assem Tool For PSP	28.95
81	ST078	1	Button Seat Remover For PSP	42.95
82	ST079	1	Water Seal 1 Insert Tool For PSP	23.95
83	ST080	1	Water Seal 2 Insert Tool For PSP	23.95
84	ST081	1	Pinion Gear Wrench For PSP	52.95

DOCUMENTATION

Manual :	PSP-158_v0323_manual.pdf
Parts-Schematic :	PSP-158_v0924_Parts-Schematic.pdf
Flyer :	PSP-158-ComparisonChart.pdf
Flyer :	NewFromAlpha2024.pdf
Flyer :	PSP-158_flyer.pdf

FAQS

Currently, there are no FAQs available for this product.....
