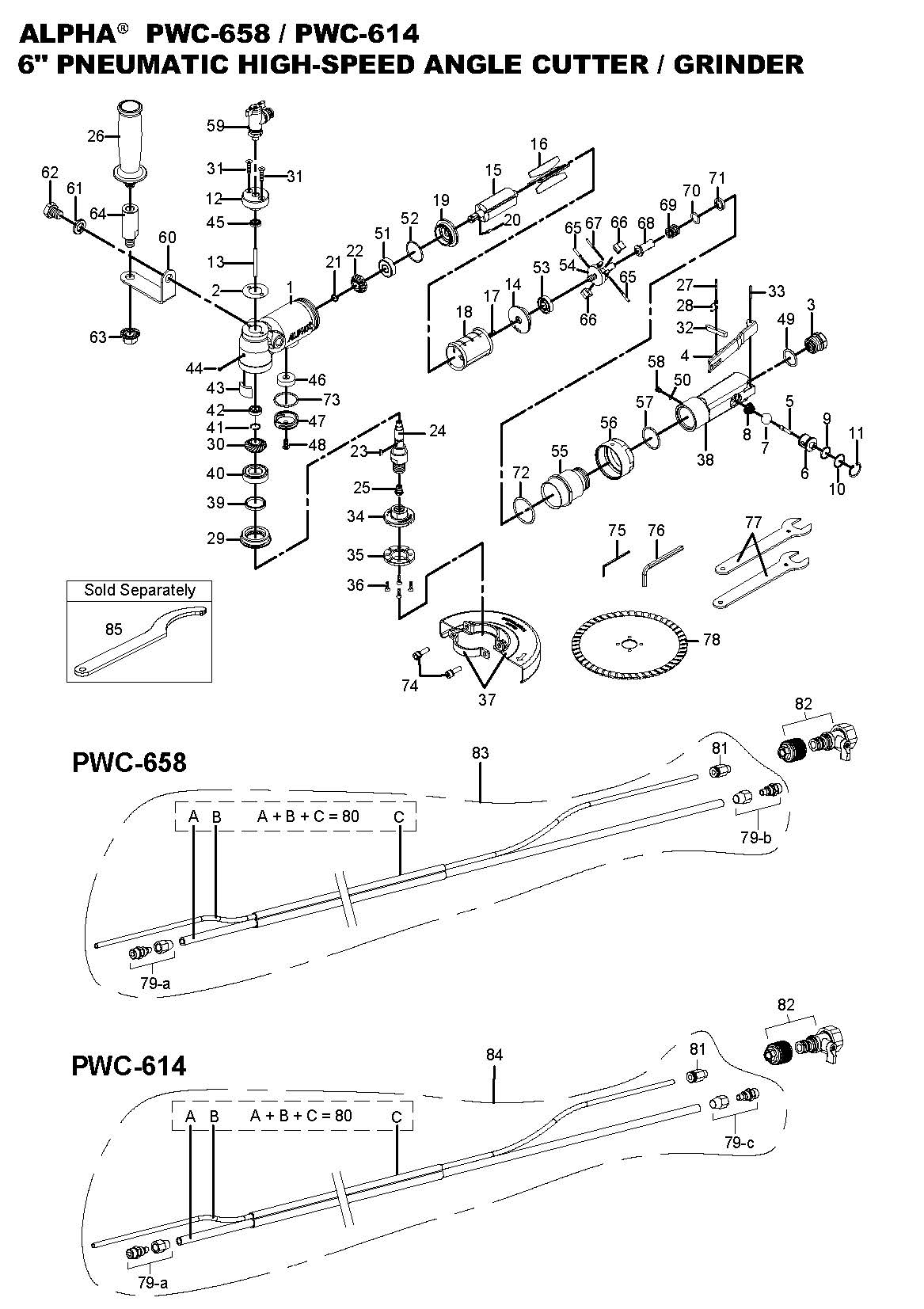

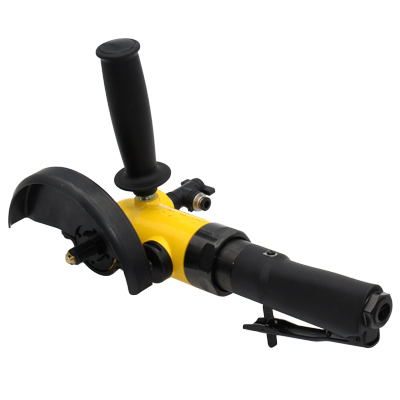

PWC-658/614/514 Spare Parts
PWC-658/614/514 Spare Parts
Back To Product Page
Spare Parts
Documentation
FAQS
DRAWING NO.
PART NO.
VERSION
DESCRIPTION
PRICE
CAProp65
BUY NOW
1
3004-0001
1
Motor Housing
122.50
2
3004-0002
1
Gasket
0.69
2
PWCGRD6
1
6" Safety Guard For PWC-658/614
7.12
3
3004-0003
1
Air Inlet
14.54
4
3004-0004
1
Throttle Lever
10.12
5
3004-0005
1
Valve Pin
2.13
6
3004-0006
1
Bushing
10.44
7
3004-0007
1
Nylon Ball
17.31
8
3004-0008
1
Spring
0.53
9
3004-0009
1
O-Ring (M13.5x1.5)
0.53
10
3001-0047
1
O-Ring (M15.5x1.5)
0.61
11
3004-0010
1
Retaining Ring
0.53
12
3004-0011
1
Cap
53.26
13
3004-0012
1
Pipe
2.66
14
3002-0030
1
Rear Bearing Case
28.72
15
3002-0029
1
Rotor
61.52
16
3002-0027
1
Vane (4pc set)
24.24
17
3003-0025
1
Spindle (5/8-11 UNC)
46.25
18
3003-0026
1
Spindle (M14 x 2.0P)
46.25
19
3004-0013
1
Front End Plate
22.37
20
3002-0028
1
Key (3x8L)
2.06
21
3002-0020
1
Retaining Ring (STW-9)
0.82
22
3002-0021
1
Bevel Pinion Gear
24.09
23
3004-0014
1
Key
1.44
24
3004-0015
1
Spindle 5/8"-11
44.21
24
3004-0047
1
Spindle (M14x2)
44.21
25
3003-0059
1
Spray Nozzle
8.10
26
3002-0065
1
Side Handle Assembly
11.71
27
3002-0043
1
Pin
2.57
28
3001-0069
1
Spring
0.53
29
3004-0016
1
Clamp Nut
21.84
30
3004-0017
1
Bevel Gear
28.23
31
3004-0018
1
Screw (M4x20l)
0.64
32
3001-0068
1
Safety Bar
3.34
33
3001-0072
1
Spring Pin (3x20L)
0.58
37
PWCGRD5
1
5" Safety Guard For PWC-514
14.83
38
3002-0036
1
Rear Body
81.01
39
3004-0019
1
Oil Seal
1.86
40
3002-0010
1
Ball Bearing (6003LLU)
14.36
41
3004-0020
1
Retaining Ring
2.82
42
3004-0021
1
Ball Bearing (689ZZ)
3.36
43
3002-0015
1
Oil Felt
3.07
44
3002-0016
1
Lubricator
1.55
45
3004-0022
1
Oil Seal
15.98
46
3004-0023
1
Muffler
1.07
47
3004-0024
1
Exhaust Deflector
1.23
48
3004-0025
1
Screw (M5x12L)
0.53
49
3004-0026
1
O-Ring (19.8x2.4)
0.53
50
3002-0040
1
O-Ring (3.5x1.5)
0.58
51
3002-0023
1
Ball Bearing (6000LLU)
11.79
52
3004-0027
1
O-Ring
0.80
53
3002-0031
1
Ball Bearing (609)
13.84
54
3004-0028
1
Governor Assembly
53.26
55
3002-0033
1
Inlet Guide
32.30
56
3004-0029
1
Nut
20.77
57
3002-0034
1
O-Ring (28.5x2)
0.76
58
3004-0030
1
Screw
9.05
59
3004-0031
1
Ball Valve
20.24
60
500165
1
Side Handle Bracket For PWC
CALL
61
3004-0032
1
Spring Washer
0.53
62
3004-0033
1
Screw
5.33
63
3004-0034
1
Locknut (M12x1.75)
2.66
64
500164
1
Extension Rod For PWC
CALL
65
3004-0035
1
Grooved Pin
0.91
66
3004-0036
1
Governor Weight
6.76
67
3004-0037
1
Pin
0.53
68
3004-0038
1
Governor Valve
6.39
69
3004-0039
1
Spring
2.93
70
3004-0040
1
Washer 0.2mm
1.33
70
3004-0041
1
Washer 0.3mm
0.69
70
3004-0042
1
Washer 0.5mm
0.69
71
3004-0043
1
Spring Holder
2.66
72
3004-0054
1
O-Ring (40x1)
0.69
73
3004-0055
1
O-Ring (27x1)
0.69
74
3004-0045
1
Allen Key (2mm)
0.80
75
3004-0046
1
Spanner (19mm)
0.53
76
3004-0044
1
Allen Key (4mm)
0.80
77
3004-0053
1
Screw
0.80
