Ecoguard W Spare Parts

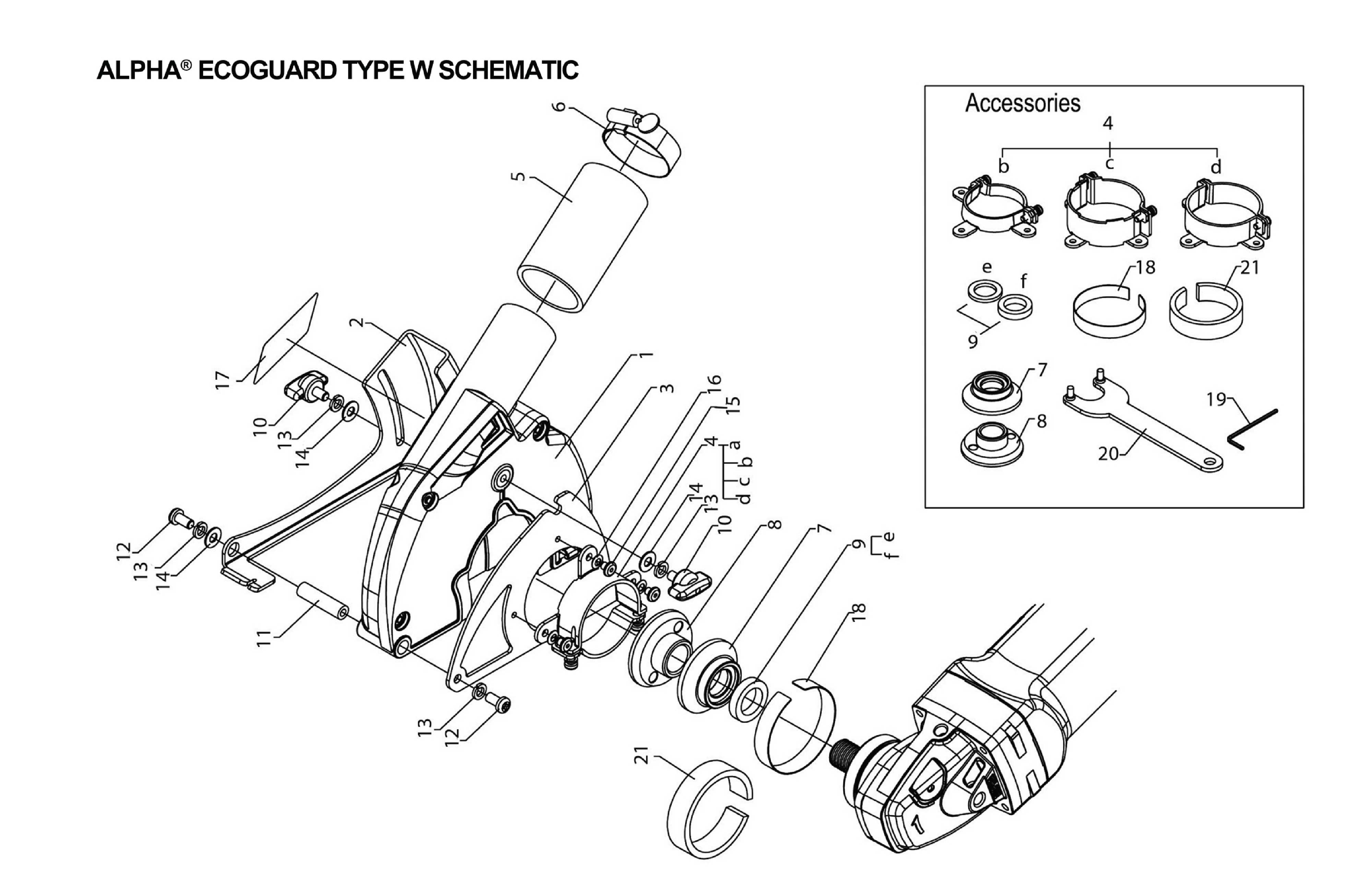

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	500001	1	Cover Assembly	CALL
2	500009	1	Base	CALL
3	500010	1	Base Plate	CALL
5	500005	1	Hose Adapter	11.96
6	500006	1	Stainless Steel Hose Clamp	CALL
7	500007	1	Inner Flange	CALL
8	500008	1	Lock Nut	CALL
10	500015	1	Knob Bolt	CALL
17	500025	1	Brand Label	CALL
18	500022	1	Collar M	CALL
19	500024	1	Hex. Wrench	CALL
11	500016	1	Shaft	CALL
20	210105	1	Pin Wrench	3.28
21	500035	1	Collar D (Dewalt®)	CALL
12	500017	1	Screw	CALL
13	500018	1	Spring Washer	CALL
22	500026	1	Flexible Connector Hose 18"	17.60
4a	500002	1	Connector Assembly (Alpha®/Makita/Milwakee)	8.37
14	500019	1	Washer	CALL
15	500020	1	Flat Head Screw	CALL
4b	500027	1	Connector Assembly (Bosch / Metabo)	CALL
4c	500003	1	Connector Assembly (Hitachi®)	8.37
16	500021	1	Taper Washer	CALL
4d	500004	1	Connector Assembly (Metabo®/Bosch®/Fein®)	CALL
9e	500011	1	Spacer (T2.5/Hitachi®)	CALL
9f	500012	1	Spacer (T5.0)	CALL

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	500001	1	Cover Assembly	CALL
2	500009	1	Base	CALL
3	500010	1	Base Plate	CALL
5	500005	1	Hose Adapter	11.96
6	500006	1	Stainless Steel Hose Clamp	CALL
7	500007	1	Inner Flange	CALL
8	500008	1	Lock Nut	CALL
10	500015	1	Knob Bolt	CALL
17	500025	1	Brand Label	CALL
18	500022	1	Collar M	CALL
19	500024	1	Hex. Wrench	CALL
11	500016	1	Shaft	CALL
20	210105	1	Pin Wrench	3.28
21	500035	1	Collar D (Dewalt®)	CALL
12	500017	1	Screw	CALL
13	500018	1	Spring Washer	CALL
22	500026	1	Flexible Connector Hose 18"	17.60
4a	500002	1	Connector Assembly (Alpha®/Makita/Milwakee)	8.37
14	500019	1	Washer	CALL
15	500020	1	Flat Head Screw	CALL
4b	500027	1	Connector Assembly (Bosch / Metabo)	CALL
4c	500003	1	Connector Assembly (Hitachi®)	8.37
16	500021	1	Taper Washer	CALL
4d	500004	1	Connector Assembly (Metabo®/Bosch®/Fein®)	CALL
9e	500011	1	Spacer (T2.5/Hitachi®)	CALL
9f	500012	1	Spacer (T5.0)	CALL
