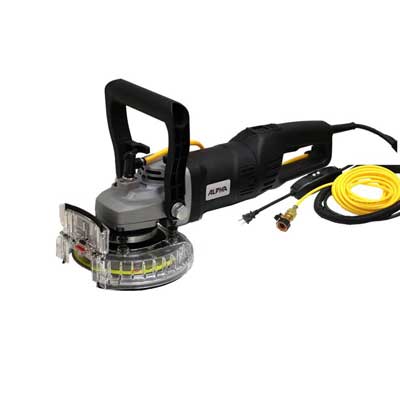

ECG Grinding Kit

Features

Videos

Currently, there are no videos available for this product...

Find a dealer

Product Details

Specification	Data
Model	ECG-900
Rating	110 Volts
Amperage	15A
Power Supply	Single-phase AC, 50,60Hz
No Load Speed (min-1)	6,200 RPM
Weight	12.3 lbs (5.6 kgs)
Spindle	5/8”-11
Max. Cutting Disc Diameter	9" (230mm)
Max. Cutting Depth	3-3/8" (87mm)
Cord	15ft (4.5m) (14 AWG)
Plug Type	A (110V)

Equipment Included

Item	Quantity
Ecoguard G7 (Part No. ECOGRDG7)	1
Spike Disc 7" #35 5/8"-11 (Part No. VCS703H)	1
Flexible Connector Hose 54" (Part No. 500073)	1
Carbon Brush (2pc Set)	1
Hex. Wrench (6mm)	1
C-Handle	1
Side Handle	1
Ground Fault Circuit Interrupter (GFCI)	1
Water Hose Assembly (15ft / 4.5m)	1
Quick Connect Shut-Off Valve	1
Memory Wrap (3ft / 1m)	1

Part No.	Description	MSRP (USD)
5480-5190	ECG Grinding Kit 7"	742.71

SPECIFICATIONS

Product Details

Specification	Data
Model	ECG-900
Rating	110 Volts
Amperage	15A
Power Supply	Single-phase AC, 50,60Hz
No Load Speed (min-1)	6,200 RPM
Weight	12.3 lbs (5.6 kgs)
Spindle	5/8”-11
Max. Cutting Disc Diameter	9" (230mm)
Max. Cutting Depth	3-3/8" (87mm)
Cord	15ft (4.5m) (14 AWG)
Plug Type	A (110V)

Equipment Included

Item	Quantity
Ecoguard G7 (Part No. ECOGRDG7)	1
Spike Disc 7" #35 5/8"-11 (Part No. VCS703H)	1
Flexible Connector Hose 54" (Part No. 500073)	1
Carbon Brush (2pc Set)	1
Hex. Wrench (6mm)	1
C-Handle	1
Side Handle	1
Ground Fault Circuit Interrupter (GFCI)	1
Water Hose Assembly (15ft / 4.5m)	1
Quick Connect Shut-Off Valve	1
Memory Wrap (3ft / 1m)	1

Part No.	Description	MSRP$
5480-5190	ECG Grinding Kit 7"	742.71

DESCRIPTION

DOCUMENTATION

Currently, there are no documents available for this product.......

FAQS

Currently, there are no FAQs available for this product.....

Additional

PartNo	Weight (Packaged)	UPS Code	Package Dimensions	Commodity Code	Country Of Origin
5480-5190		749173661860		See Individuals	See Individuals

Buy Now

PART NO.	DESCRIPTION	PRICE (USD)	WARNING	BUY NOW
5480-5190	ECG Grinding Kit 7"	742.71	WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
