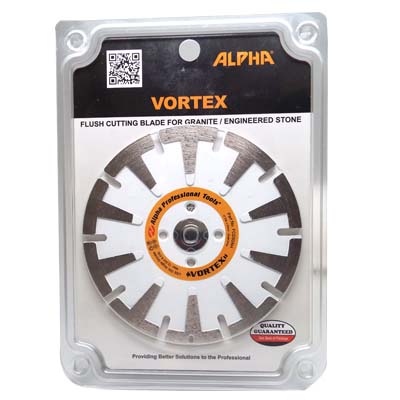

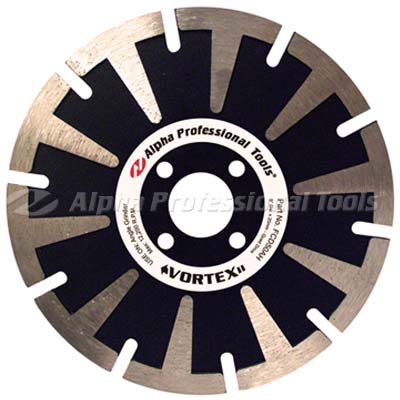

Vortex for Granite

Alpha® had created the Duo Trak Blade as a multi-purpose blade to be used in a variety of applications. Unfortunately, ANSI regulations did not recognize a blade with the ability to perform more than one function. In response to those regulations we discontinued the Duo Trak. At the same time, we improved the design by adding side protection segments on both sides of the blade and introduced the Vortex. The dual side protection segments improve the strength and durability, while creating a flush cutting blade superior to any other available in the market. Stone fabricators will love the versatility of this blade and the ease with which it can complete flush cutting operations. The unique design provides an excellent cost per cut ratio. Ideally suited for use on various materials, it may be used wet or dry. A very aggressive blade that allows the operator to perform cuts quickly and efficiently. Available in 4” and 5” sizes.

Question : What materials can be cut using the Alpha® Vortex for Granite blade?

Answer : The Alpha® Vortex blade is designed to be used on granite and engineered stone.

Question : The Alpha® Vortex for Granite is a dry cutting blade, can I use this blade for wet application?

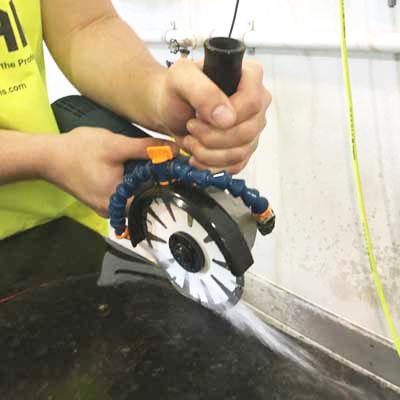

Answer : Yes. Wet cutting will generally increase blade life and will keep harmful dust (Silica) out of the air.

Question : What sizes of the Alpha® Vortex for Granite blades are available?

Answer : These blades are available in 4” and 5” diameters.

Question : What is the cutting edge rim height of the Alpha® Vortex 4” and 5” blades?

Answer : 4” Vortex (7mm) and 5” Vortex (6mm)

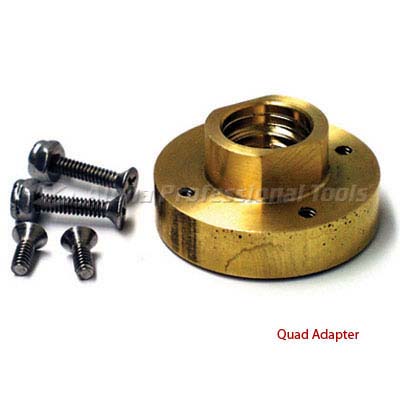

Question : What is the spindle size required for use of the BAH-5/8 adapter?

Answer : Your power tool needs to have a 5/8”-11 threaded spindle for use of this adapter.

Question : Does Alpha® offer other spindle sizes for the BAH and FAH adapters?

Answer : Yes. Other spindle sizes are available. Please contact your dealer or Alpha® directly to learn more about these other thread sizes.

Question : Can I use the Alpha® Vortex for Granite blade on my polishing tool?

Answer : No. The RPM speeds of polishers are too slow. Diamond blades are recommended for use on high-speed angle grinders rated for the blade diameter being used.

Question : What applications are the Alpha® Vortex for Granite blades designed for?

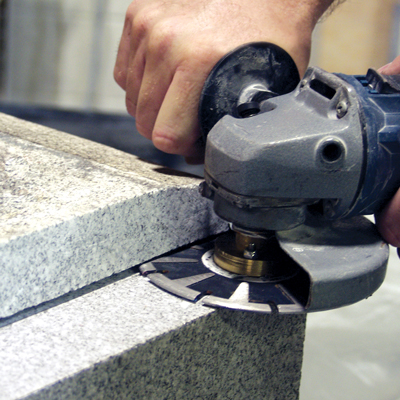

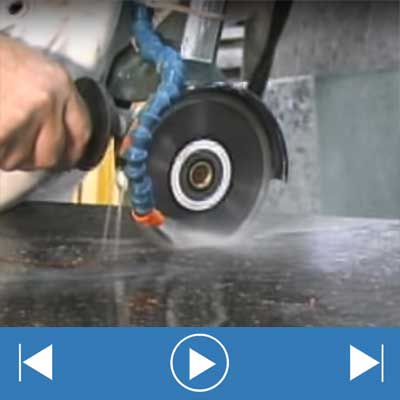

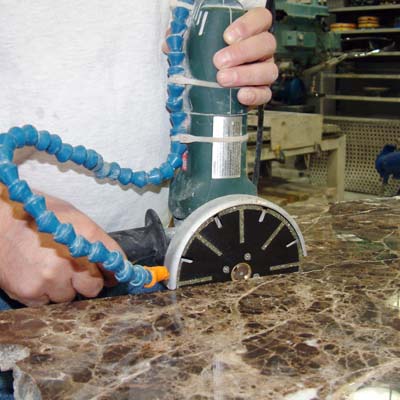

Answer : The Alpha® Vortex blades are designed for flush cutting and making 90 degree inside corners. Other cutting applications such as top mount sink bowl cut-outs when you need to cut the material between the drilled core holes are ideal for this blade.

Question : Can I use the Alpha® Vortex blade without the BAH-5/8 adapter?

Answer : No. The Alpha® Vortex blades must always be used together with the BAH adapter. Alpha® does not recommend mounting the Vortex blade directly onto the flange of a power tool without the BAH adapter due to the countersunk holes drilled within the core of the blade.
