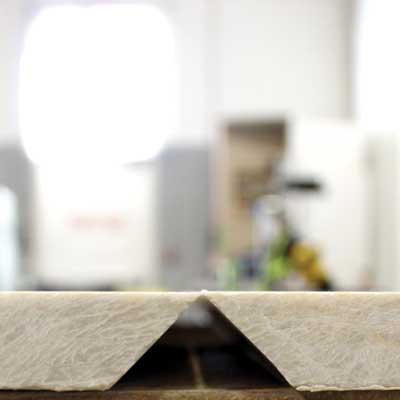

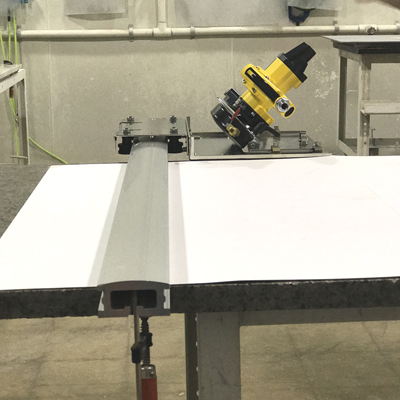

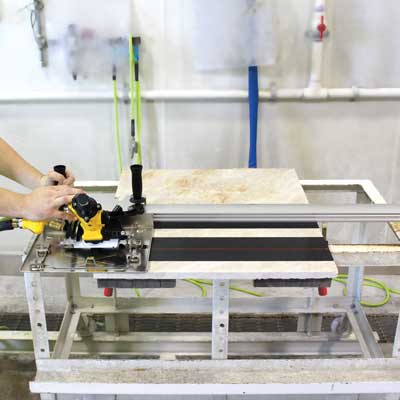

PSC-150 Miter Cutting Kit

One System for Straight, Curve and Miter Cuts

Product Details
SpecificationData
Model5480-5100 (PSC-150)
Air Pressure 90 PSI
Air Consumption Min32 CFM / 1HP*
Air Consumption Max48 CFM / 2HP
No Load Speed8,500 RPM
Air Inlet3/8” NPSM
Water Inlet1/4” BSPP
Arbor7/8” (22mm)
Max. HP2.0 HP
Cutting Disc Diameter6" (150mm)
Note:*To control the amount of CFM required, use the reduced flow air inlet fitting 3001-0084

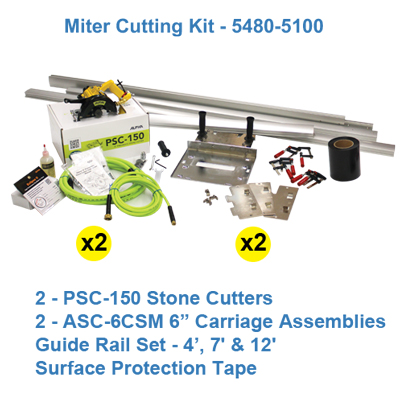

Equipment Included
ItemQuantity

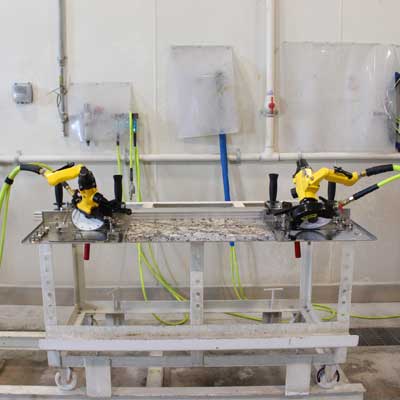

PSC-150 Wet Stone Cutter2

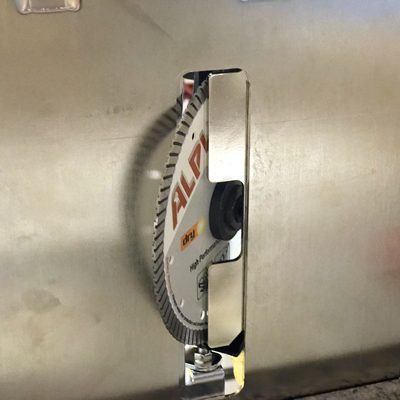

PSC-150 Standard Accessories (inc. Eclipse II Blade)2

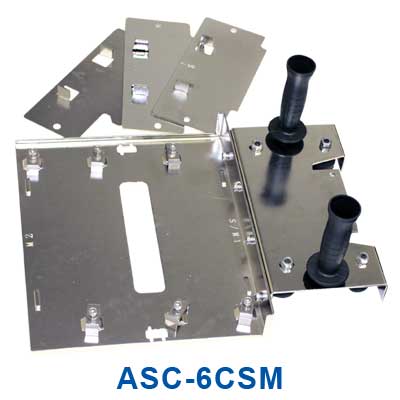

6” Carriage Assembly (ASC-6CSM)2
Guide Rail 4' (1.2m) (ASC-GR04)1
Guide Rail 7' (2.1m) (ASC-GR07)1
Guide Rail 12' (3.6m) (ASC-GR12)1
Surface Protection Tape (BAB0650)1
