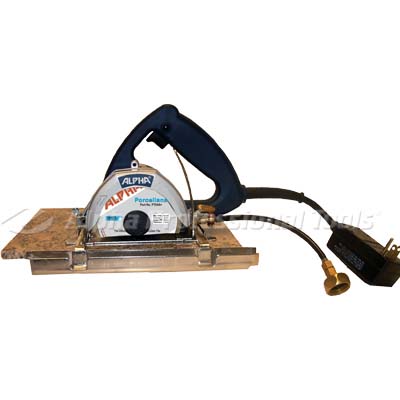

AWS-110 Spare Parts

Click here to view/print a PDF

Back To Product Page

• Spare Parts
• Documentation
• FAQS

Manual :	AWS-110-220_v1217_manual.pdf
Manual :	AWS-110-220_v0920_Manual.pdf
Manual :	AWS-110-220_v0824_Manual.pdf
Reference :	AWS-110_HelpfulHints.pdf
Reference :	AWS-110_HowToUse.pdf
Maint Card :	AWS-110_AWS-125_Maint.pdf
Parts-Schematic :	AWS-110-220_Parts-Schematic.pdf
Parts-Schematic :	AWS-110-220_v0121_Parts-Schematics.pdf
Flyer :	SicisArtGlassTooling_flyer.pdf
Flyer :	AWS-110_flyer.pdf

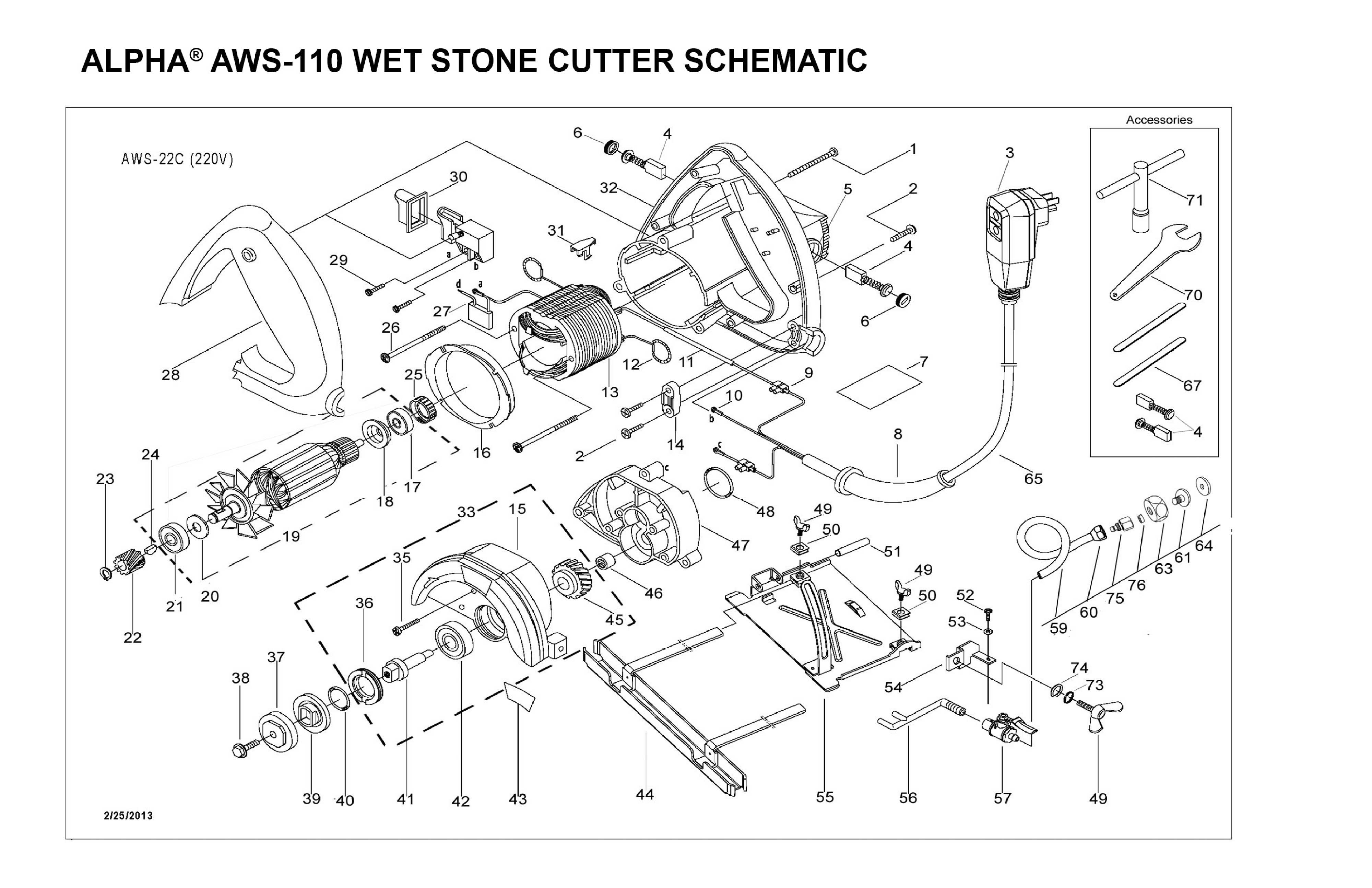

SPARE PARTS

DRAWING NO. PART NO. VERSION DESCRIPTION CAProp65 BUY NOW 1 133080 1 Screw M5x40 2 130031 1 Self-tapping Screw 3.9x19 3 133289 1 GFCI 110V 3 133292 1 GFCI 220V 4 133033 1 Carbon Brush (2 pc set) 5 133031 1 Brush Holder 6 133032 1 Brush Cap 7 133241 1 Rated Plate 110V 7 133240 1 Rated Plate 220V 8 133047 1 Cable Sleeve 9 130618 1 Block Terminal 10 133040 1 Wire Terminal 11 133042 1 Insulation Pipe 12 133034 1 Brush Terminal Assembly 13 133436 1 Field Coil 110V 13 133004 1 Field Coil 220V 14 133086 1 Cable Clamp 15 133055 1 Cover 16 133030 1 Air Bridge 17 133025 1 Bearing 608-2RZ 18 133024 1 Insulation Disc 19 133012 1 Armature 220V 19 133439 1 Armature 110V 20 133026 1 Bearing Cover 21 133027 1 Bearing 629-2RZ

1234Next »

DOCUMENTATION

Manual :	AWS-110-220_v1217_manual.pdf
Manual :	AWS-110-220_v0920_Manual.pdf
Manual :	AWS-110-220_v0824_Manual.pdf
Reference :	AWS-110_HelpfulHints.pdf
Reference :	AWS-110_HowToUse.pdf
Maint Card :	AWS-110_AWS-125_Maint.pdf
Parts-Schematic :	AWS-110-220_Parts-Schematic.pdf
Parts-Schematic :	AWS-110-220_v0121_Parts-Schematics.pdf
Flyer :	SicisArtGlassTooling_flyer.pdf
Flyer :	AWS-110_flyer.pdf

FAQS

Currently, there are no FAQs available for this product.....
