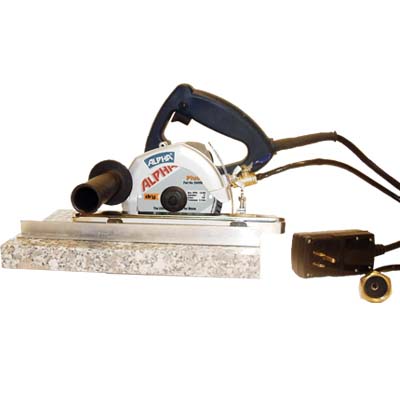

AWS-125 Spare Parts (Discontinued)

Click here to view/print a PDF

Back To Product Page

• Spare Parts
• Documentation
• FAQS

Manual :	AWS-125-225_manual.pdf
Reference :	AWS-125_HelpfulHints.pdf
Reference :	AWS-125_HowToUse.pdf
Maint Card :	AWS-110_AWS-125_Maint.pdf
Parts-Schematic :	AWS-125-225_Parts-Schematic.pdf

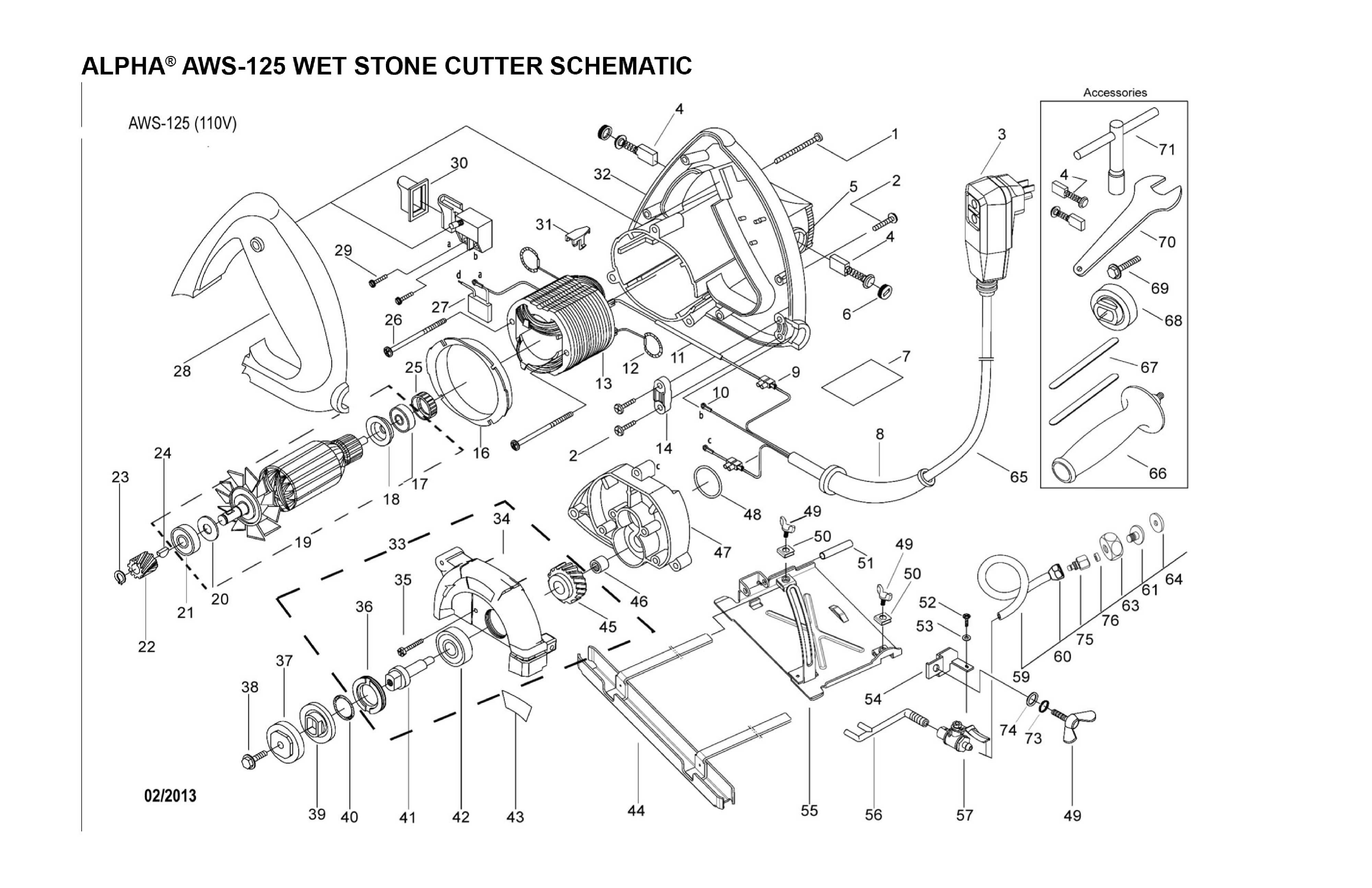

SPARE PARTS

DRAWING NO. PART NO. VERSION DESCRIPTION CAProp65 BUY NOW 1 133080 2 Screw M5x40 2 130031 2 Self-tapping Screw 3.9x19 3 133289 2 GFCI 110V 3 133292 2 GFCI 220V 4 133033 2 Carbon Brush (2 pc set) 5 133031 2 Brush Holder 6 133032 2 Brush Cap 7 133422 2 Rated Plate 110V 8 133047 2 Cable Sleeve 9 130618 2 Block Terminal 10 133040 2 Wire Terminal 11 133042 2 Insulation Pipe 12 133034 2 Brush Terminal Assembly 13 133436 2 Field Coil 110V 13 133004 2 Field Coil 220V 14 133086 2 Cable Clamp 16 133030 2 Air Bridge 17 133025 2 Bearing 608-2RZ 18 133024 2 Insulation Disc 19 133439 2 Armature 110V 19 133012 2 Armature 220V 20 133026 2 Bearing Cover 21 133027 2 Bearing 629-2RZ 22 133048 2 Gear (Small) 23 133051 2 Snap Ring (M8)

1234Next »

DOCUMENTATION

Manual :	AWS-125-225_manual.pdf
Reference :	AWS-125_HelpfulHints.pdf
Reference :	AWS-125_HowToUse.pdf
Maint Card :	AWS-110_AWS-125_Maint.pdf
Parts-Schematic :	AWS-125-225_Parts-Schematic.pdf

FAQS

Currently, there are no FAQs available for this product.....
