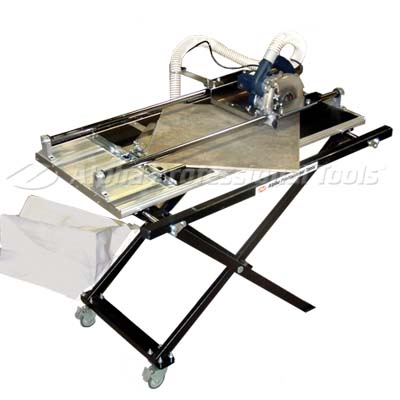

Dry Porcelain Paver Tile Cutting System Spare Parts

Click here to view/print a PDF

Back To Product Page

• Spare Parts
• Documentation
• FAQS

Manual :	ECC-KIT_manual.pdf
Reference :	ECC-KIT_HowToUse.pdf
Parts-Schematic :	ECC-KIT_Parts-Schematic.pdf
Flyer :	DryTileCuttingSystem_flyer.pdf
Flyer :	Porcelain-Paver-Tiles_flyer.pdf

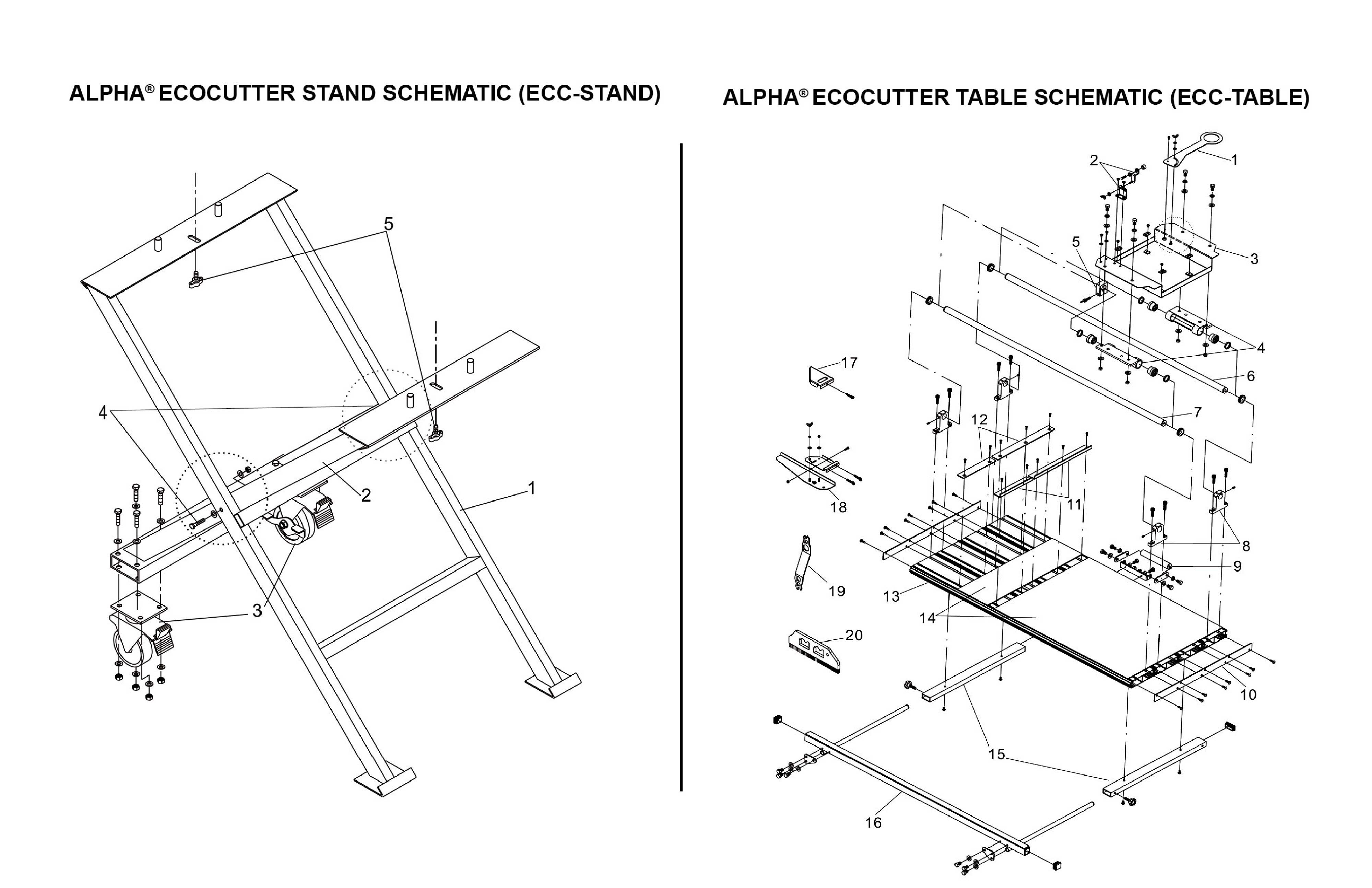

SPARE PARTS

DRAWING NO. PART NO. VERSION DESCRIPTION CAProp65 BUY NOW 1 133080 1 Screw M5x40 2 130031 1 Self-tapping Screw 3.9x19 3 133033 1 Carbon Brush (2 pc set) 4 133032 1 Brush Cap 5 130618 1 Block Terminal 6 133040 1 Wire Terminal 7 133086 1 Cable Clamp 8 133042 1 Insulation Pipe 9 133034 1 Brush Terminal Assembly 10 133436 1 Field Coil 110V 10 133004 1 Field Coil 220V 11 133551 1 Hook & Loop Straps 12 133003 1 Rear Motor Housing (Blue) 13 133041 1 Cable Clip 14 133044 1 Rubber Switch Cover 15 133043 1 Switch (with Screw) 16 133392 1 Condenser Assembly 17 133029 1 Self-tapping Screw 4.8x65 18 133028 1 Bearing Sleeve 19 133078 1 Handle (for ECC-125) 20 133050 1 Woodruff Key 21 133051 1 Snap Ring (M8) 22 133030 1 Air Bridge 23 133025 1 Bearing 608-2RZ 24 133024 1 Insulation Disc

12345Next »

DOCUMENTATION

Manual :	ECC-KIT_manual.pdf
Reference :	ECC-KIT_HowToUse.pdf
Parts-Schematic :	ECC-KIT_Parts-Schematic.pdf
Flyer :	DryTileCuttingSystem_flyer.pdf
Flyer :	Porcelain-Paver-Tiles_flyer.pdf

FAQS

Currently, there are no FAQs available for this product.....
