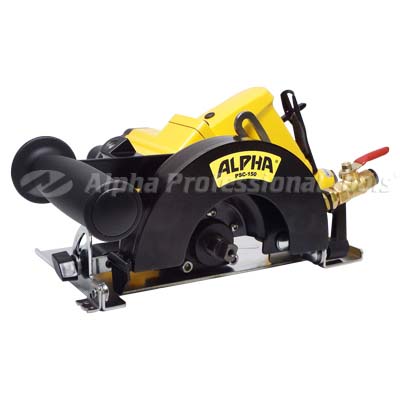

PSC-150 Spare Parts

Click here to view/print a PDF

Back To Product Page

• Spare Parts
• Documentation
• FAQS

Safety Data Sheet :	515_Mobile-Velocite-Oil-AIR-008_sds.pdf
Manual :	PSC-150_v1_0217_manual.pdf
Manual :	PSC-150_v2_1117_manual.pdf
Manual :	PSC-150_v3_1218_manual.pdf
Manual :	PSC-150_v1219_manual.pdf
Maint Card :	PSC-150_Maint.pdf
Parts-Schematic :	PSC-150-v2_Parts-Schematic.pdf
Parts-Schematic :	PSC-150-v3_Parts-Schematic.pdf
Flyer :	MiterKit-ComparisonChart.pdf
Flyer :	PSC-150_flyer.pdf
Flyer :	PSC-150-Miter-Cutting-Kit_flyer.pdf

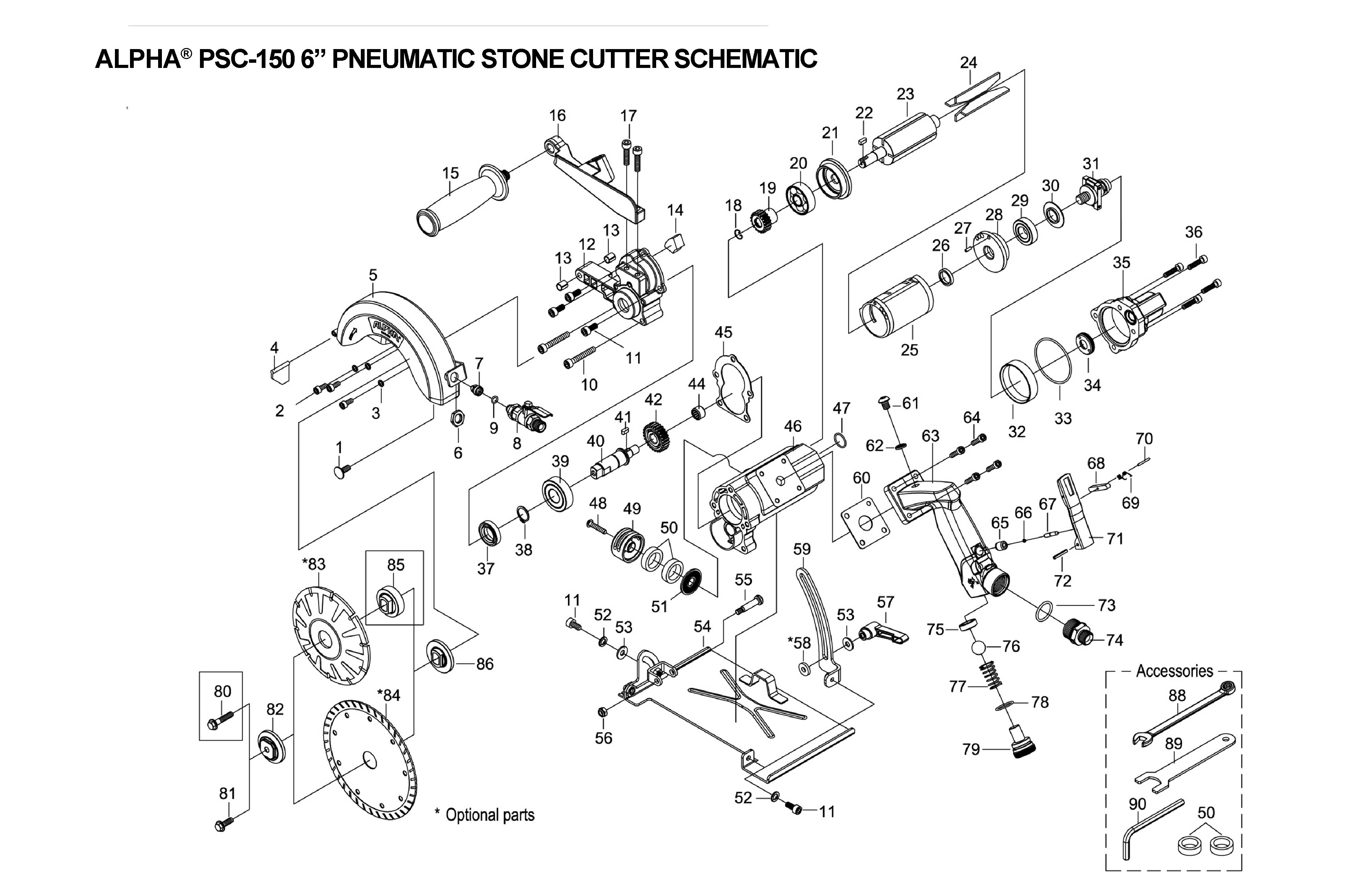

SPARE PARTS

DRAWING NO. PART NO. VERSION DESCRIPTION CAProp65 BUY NOW 1 3001-0001 1 Carriage Bolt (M6x16) 2 3001-0002 1 Screw SHC (M5x12) 3 3001-0003 1 Lock Washer (M5) 4 3001-0004 1 Splash Guard Flap 5 3001-0005 1 6" Blade Guard 6 3001-0006 1 Nut 7 3001-0007 1 Spray Nozzle 8 3001-0008 1 Ball Valve (1/4"-18 NPSM) 9 3001-0009 1 O-Ring (M6x1.5) 10 3001-0010 1 Screw SHC (M6x40) 11 3001-0011 1 Screw SHC (M6x14) 12 3001-0093 2 Gear Case 13 3001-0094 3 Flange Sleeve Bearing (2pc Set) 14 3001-0014 1 Oil Felt 15 3001-0015 1 Side Handle 16 3001-0016 1 Arm 17 3001-0017 1 Screw SHC (M6x25) 18 3001-0018 1 Snap Ring internal (11mm) 19 3001-0019 1 Pinion Gear 20 3001-0020 1 Ball Bearing (6301) 21 3001-0021 1 Front End Plate 22 3001-0022 1 Key (4x10) 23 3001-0023 1 Rotor 24 3001-0024 1 Vane (4pc set) 25 3001-0025 1 Cylinder

12345Next »

DOCUMENTATION

Safety Data Sheet :	515_Mobile-Velocite-Oil-AIR-008_sds.pdf
Manual :	PSC-150_v1_0217_manual.pdf
Manual :	PSC-150_v2_1117_manual.pdf
Manual :	PSC-150_v3_1218_manual.pdf
Manual :	PSC-150_v1219_manual.pdf
Maint Card :	PSC-150_Maint.pdf
Parts-Schematic :	PSC-150-v2_Parts-Schematic.pdf
Parts-Schematic :	PSC-150-v3_Parts-Schematic.pdf
Flyer :	MiterKit-ComparisonChart.pdf
Flyer :	PSC-150_flyer.pdf
Flyer :	PSC-150-Miter-Cutting-Kit_flyer.pdf

FAQS

Currently, there are no FAQs available for this product.....
