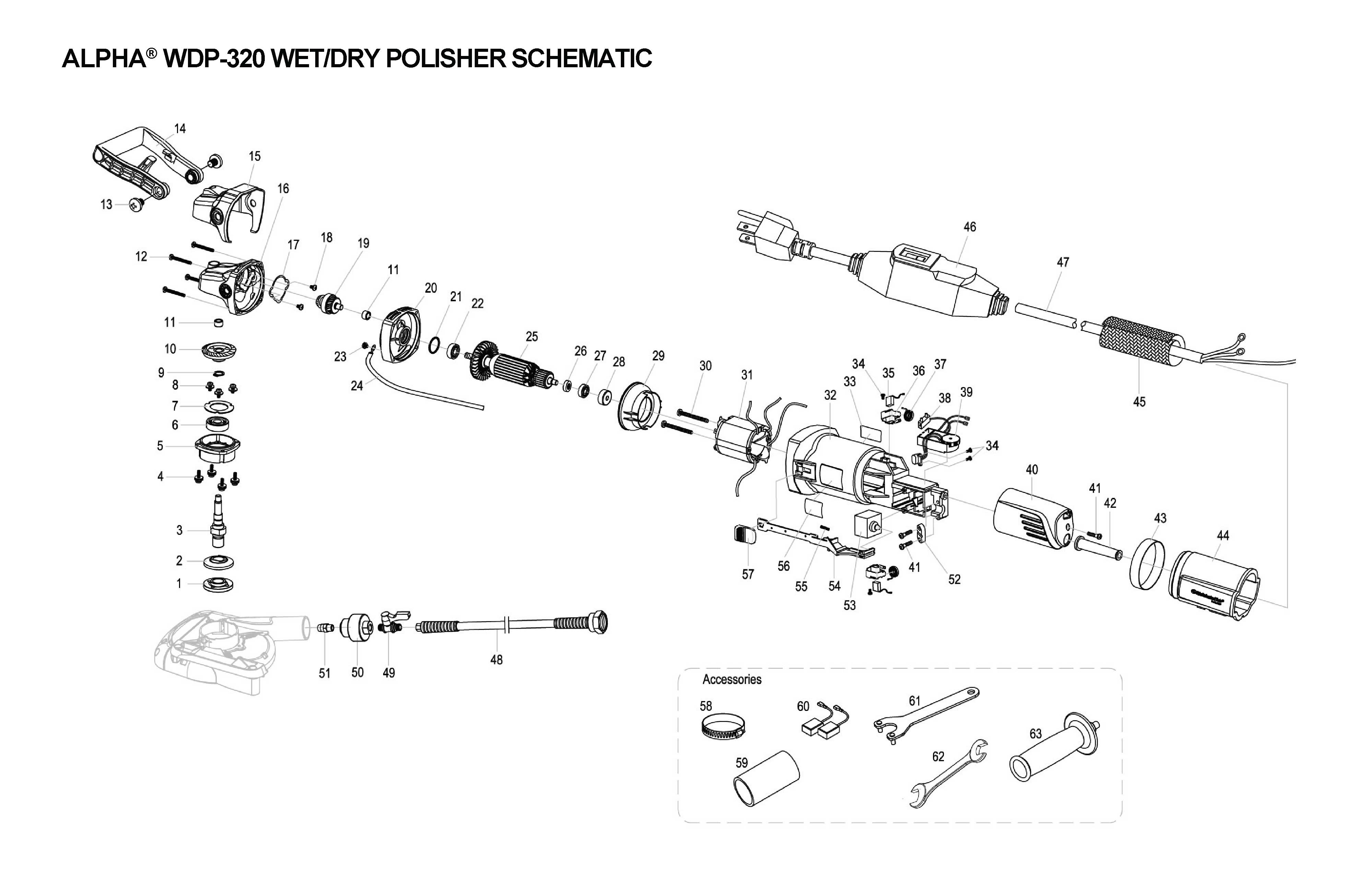

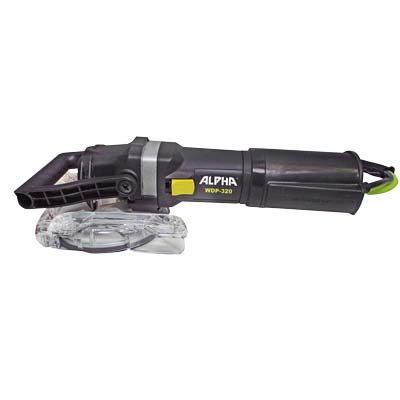

WDP-320 Spare Parts

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	210301	1	Variable Drive Lock Nut (5/8"-11)	8.95
2	110301	1	Variable Drive Flange (5/8"-11)	10.42
3	310025	1	Output Shaft 5/8"-11 UNC	CALL
4	210111	1	Combination Screw M4x14	2.56
5	310002	1	Gear Case Cover	7.84
6	210010	1	Ball Bearing 6201	20.10
7	210013	1	Bearing Clamp	5.34
7	310003	2	Bearing Cover	2.42
8	310026	1	Combination Screw M4x10 (w/spring washer & flat washer)	CALL
9	310027	1	C-clip for shaft 12	CALL
10	310037	1	Gear	CALL
11	210019	1	Oil-impregnated Bearing 8x12x8	2.66
12	210021	1	Self-tapping Screw 4.2x45	0.61
13	210023	1	Screw M10x20	0.85
14	210024	1	C-Handle	40.54
15	310038	1	Case Plastic Cover	CALL
15	210022	2	Case Plastic Cover	6.14
16	210027	1	Gear Case	13.94
17	210116	1	Sealing Ring	1.93
18	210033	1	Screw M4x8	0.29
19	310039	1	Pinion Gear Sub Assembly	CALL
19	210117	2	Pinion Gear Sub Assembly	66.66
20	210034	1	Bearing Retainer	8.52
21	210035	1	O-Ring (21.2x1.8)	0.70
22	210036	1	Ball Bearing 608	14.84
23	210119	1	Combination Screw M4x8	1.54
24	210120	1	Wire Lead (Circular lugs 4#)	2.16
25	210121	1	Armature 120V	105.96
26	210095	1	Magnetic Ring	10.43
27	210038	1	Ball Bearing 607	14.22
28	210039	1	Rubber Bearing Seat	4.50
29	210106	1	Wind Shield	3.24
30	210041	1	Self-tapping Screw 4.2x70	0.50
31	210122	1	Field Coil 120V	64.64
32	210091	1	Field Coil Case	17.48
33	310028	1	Data Label	CALL
34	210049	1	Self-tapping Screw 2.9x8	0.29
36	210046	1	Carbon Brush Holder	6.38
37	210047	1	Coil Spring	1.61
38	210094	1	Terminal Block	1.24
39	310029	1	Speed pot w/Feed-back Sensor 120V	CALL
39	210135	2	Speed Pot w/Feed-Back Sensor 120V	68.71
40	310030	1	Rear Cover	CALL
41	210054	1	Self-tapping Screw 4.2x14	0.29
42	210055	1	Cord Jacket	1.40
44	210108	1	Rubber Band	1.27
45	210107	1	Ventilation Cap	18.01
45	210124	2	Memory Wrap (3ft./1m) (18mm)	22.72
46	210125	1	GFCI 120V	110.17
47	210126	1	Power Supply Cord 120V	32.15
48	310031	1	Water Hose Assembly (15ft./5m)	CALL
48	210129	2	Water Hose Assembly (15ft./5m)	36.28
49	310034	1	Water Valve Assembly	6.61
50	310035	1	Rubber Plug Assembly	6.26
51	310036	1	Spray Nozzle	30.71
52	210066	1	Cord Clamp	0.48
53	210068	1	Switch	8.88
54	210070	1	Switch Push Lever	1.13
55	210069	1	Back Moving Spring	0.23
56	310040	1	Brand Label	CALL
57	210071	1	Switch Push Button	0.89
58	310008	1	Stainless Steel Hose Band	6.62
59	500005	1	Hose Adapter	14.35
60	210048	1	Carbon Brush 120V Set	15.97
61	210105	1	Pin Wrench	3.94
62	310041	1	Open End Wrench (19mm) for WDP-320	CALL
62	210110	2	Double Open End Wrench (17mm-19mm)	17.12
63	210074	1	Side Handle	15.36
66	500032	1	Main Cover	67.75
67	500033	1	Sub Cover	57.26
68	500034	1	Half Cover	49.58
69	500037	1	Combination Screw M4x10 (w/spring washer )	0.12
70	310020	1	Combination Screw M4x12 (w/spring washer)	0.22
71	310017	1	Set Plate	32.60
72	310016	1	Holder Spring	5.23
73	310021	1	Flat Head Screw M4x6	0.23
74	310018	1	Connector-A01	4.01
75	310019	1	Connector-A02	2.03
76	500041	1	Brush-A	46.86
77	500042	1	Brush-B	46.86
78	310014	1	Seal	31.31
79	310105	1	Brand Label (Guard)	2.52
80	500026	1	Flexible Connector Hose 18"	17.60

SPARE PARTS

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	210301	1	Variable Drive Lock Nut (5/8"-11)	8.95
2	110301	1	Variable Drive Flange (5/8"-11)	10.42
3	310025	1	Output Shaft 5/8"-11 UNC	CALL
4	210111	1	Combination Screw M4x14	2.56
5	310002	1	Gear Case Cover	7.84
6	210010	1	Ball Bearing 6201	20.10
7	210013	1	Bearing Clamp	5.34
7	310003	2	Bearing Cover	2.42
8	310026	1	Combination Screw M4x10 (w/spring washer & flat washer)	CALL
9	310027	1	C-clip for shaft 12	CALL
10	310037	1	Gear	CALL
11	210019	1	Oil-impregnated Bearing 8x12x8	2.66
12	210021	1	Self-tapping Screw 4.2x45	0.61
13	210023	1	Screw M10x20	0.85
14	210024	1	C-Handle	40.54
15	310038	1	Case Plastic Cover	CALL
15	210022	2	Case Plastic Cover	6.14
16	210027	1	Gear Case	13.94
17	210116	1	Sealing Ring	1.93
18	210033	1	Screw M4x8	0.29
19	310039	1	Pinion Gear Sub Assembly	CALL
19	210117	2	Pinion Gear Sub Assembly	66.66
20	210034	1	Bearing Retainer	8.52
21	210035	1	O-Ring (21.2x1.8)	0.70
22	210036	1	Ball Bearing 608	14.84
23	210119	1	Combination Screw M4x8	1.54
24	210120	1	Wire Lead (Circular lugs 4#)	2.16
25	210121	1	Armature 120V	105.96
26	210095	1	Magnetic Ring	10.43
27	210038	1	Ball Bearing 607	14.22
28	210039	1	Rubber Bearing Seat	4.50
29	210106	1	Wind Shield	3.24
30	210041	1	Self-tapping Screw 4.2x70	0.50
31	210122	1	Field Coil 120V	64.64
32	210091	1	Field Coil Case	17.48
33	310028	1	Data Label	CALL
34	210049	1	Self-tapping Screw 2.9x8	0.29
36	210046	1	Carbon Brush Holder	6.38
37	210047	1	Coil Spring	1.61
38	210094	1	Terminal Block	1.24
39	310029	1	Speed pot w/Feed-back Sensor 120V	CALL
39	210135	2	Speed Pot w/Feed-Back Sensor 120V	68.71
40	310030	1	Rear Cover	CALL
41	210054	1	Self-tapping Screw 4.2x14	0.29
42	210055	1	Cord Jacket	1.40
44	210108	1	Rubber Band	1.27
45	210107	1	Ventilation Cap	18.01
45	210124	2	Memory Wrap (3ft./1m) (18mm)	22.72
46	210125	1	GFCI 120V	110.17
47	210126	1	Power Supply Cord 120V	32.15
48	310031	1	Water Hose Assembly (15ft./5m)	CALL
48	210129	2	Water Hose Assembly (15ft./5m)	36.28
49	310034	1	Water Valve Assembly	6.61
50	310035	1	Rubber Plug Assembly	6.26
51	310036	1	Spray Nozzle	30.71
52	210066	1	Cord Clamp	0.48
53	210068	1	Switch	8.88
54	210070	1	Switch Push Lever	1.13
55	210069	1	Back Moving Spring	0.23
56	310040	1	Brand Label	CALL
57	210071	1	Switch Push Button	0.89
58	310008	1	Stainless Steel Hose Band	6.62
59	500005	1	Hose Adapter	14.35
60	210048	1	Carbon Brush 120V Set	15.97
61	210105	1	Pin Wrench	3.94
62	310041	1	Open End Wrench (19mm) for WDP-320	CALL
62	210110	2	Double Open End Wrench (17mm-19mm)	17.12
63	210074	1	Side Handle	15.36
66	500032	1	Main Cover	67.75
67	500033	1	Sub Cover	57.26
68	500034	1	Half Cover	49.58
69	500037	1	Combination Screw M4x10 (w/spring washer )	0.12
70	310020	1	Combination Screw M4x12 (w/spring washer)	0.22
71	310017	1	Set Plate	32.60
72	310016	1	Holder Spring	5.23
73	310021	1	Flat Head Screw M4x6	0.23
74	310018	1	Connector-A01	4.01
75	310019	1	Connector-A02	2.03
76	500041	1	Brush-A	46.86
77	500042	1	Brush-B	46.86
78	310014	1	Seal	31.31
79	310105	1	Brand Label (Guard)	2.52
80	500026	1	Flexible Connector Hose 18"	17.60
