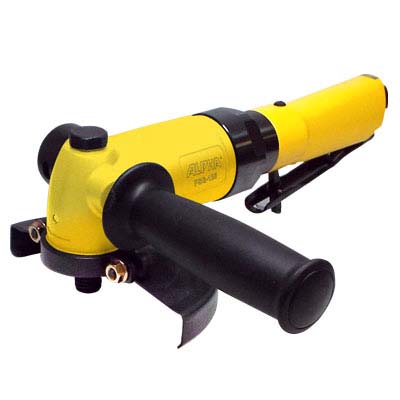

PSG-125 Spare Parts

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	3002-0001	1	5" Safety Guard	44.09
2	3002-0002	1	Retainer	11.53
3	3002-0003	1	Nut (M6)	0.54
4	3002-0004	1	Screw (M6x20)	0.82
5	3002-0005	1	Flange Nut (5/8"-11)	15.38
6	3002-0006	1	Flange	11.79
7	3002-0007	1	Spacer Nut	9.22
8	3002-0008	1	Lock Nut	16.92
9	3002-0009	1	Oil Felt	3.07
10	3002-0010	1	Ball Bearing (6003LLU)	14.36
11	3002-0011	1	Spindle 5/8"-11	35.88
12	3002-0012	1	Bevel Gear	24.09
13	3002-0013	1	Ball Bearing (606ZZ)	12.31
14	3002-0014	1	Bearing Holder	1.55
15	3002-0015	1	Oil Felt	3.07
16	3002-0016	1	Lubricator	1.55
17	3002-0017	1	Housing	109.71
18	3002-0018	1	O-Ring (9.5x1.5)	1.25
19	3002-0019	1	Screw (M12x3T)	9.22
20	3002-0020	1	Retaining Ring (STW-9)	0.82
21	3002-0021	1	Bevel Pinion Gear	24.09
22	3002-0022	1	O-Ring (21.5x1.5)	0.76
23	3002-0023	1	Ball Bearing (6000LLU)	11.79
24	3002-0024	1	Front Bearing Case	34.35
25	3002-0025	1	Spring Pin (2.5x5)	0.76
26	3002-0026	1	Cylinder	68.70
27	3002-0027	1	Vane (4pc set)	24.24
28	3002-0028	1	Key (3x8L)	2.06
29	3002-0029	1	Rotor	61.52
30	3002-0030	1	Rear Bearing Case	28.72
31	3002-0031	1	Ball Bearing (609)	13.84
32	3002-0032	1	Governor Assembly	74.34
33	3002-0033	1	Inlet Guide	32.30
34	3002-0034	1	O-Ring (28.5x2)	0.76
35	3002-0035	1	Nut	27.17
36	3002-0036	1	Rear Body	81.01
37	3002-0037	1	O-Ring (19.8x2.4)	0.76
38	3002-0038	1	Air Inlet	9.22
39	3002-0039	1	Screw	1.55
40	3002-0040	1	O-Ring (3.5x1.5)	0.58
41	3002-0041	1	Throttle Lever	11.79
42	3001-0072	1	Spring Pin (3x20L)	0.58
43	3002-0043	1	Pin	2.57
44	3001-0069	1	Spring	0.53
45	3001-0068	1	Safety Bar	3.34
46	3002-0046	1	Spring	0.82
47	3002-0047	1	Nylon Ball	8.71
48	3002-0048	1	O-Ring (13.5x1.5)	0.83
49	3002-0049	1	Bushing	13.84
50	3002-0050	1	O-Ring (15.5x1.5)	0.51
51	3002-0051	1	Retaining Ring (RTW-20)	0.82
52	3002-0052	1	Pin (4x22.8)	0.82
53	3002-0053	1	O-Ring (27x2)	0.82
54	3002-0054	1	Muffler	7.05
55	3002-0055	1	Exhaust Vent	14.36
56	3002-0056	1	Spring	1.55
57	3002-0057	1	Exhaust Cover	4.62
58	3002-0058	1	Spacer Screw	14.36
59	3002-0059	1	Washer (5.3x10x0.3)	0.83
60	3002-0060	1	Screw (M5x8L)	0.83
61	3001-0015	1	Side Handle	13.44
62	3002-0062	1	Pin Wrench (P:32mm)	14.36
63	3002-0063	1	Double Open End Wrench (32mm / 1")	12.31
64	3002-0064	1	Hex. Wrench (1/4")	1.10
65	AIR-008	1	Rust Inhibitor Oil (8oz / 237ml)	12.43
99	AT005	1	Large Bearing Puller	29.25
99	AT009	1	50-55mm Pin Spanner Wrench (PSP)	35.00
99	AT010	1	Removal Wrench For 3001-0079	86.00
99	AT011	1	Removal Wrench For 3002-0008	138.00

SPARE PARTS

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	3002-0001	1	5" Safety Guard	44.09
2	3002-0002	1	Retainer	11.53
3	3002-0003	1	Nut (M6)	0.54
4	3002-0004	1	Screw (M6x20)	0.82
5	3002-0005	1	Flange Nut (5/8"-11)	15.38
6	3002-0006	1	Flange	11.79
7	3002-0007	1	Spacer Nut	9.22
8	3002-0008	1	Lock Nut	16.92
9	3002-0009	1	Oil Felt	3.07
10	3002-0010	1	Ball Bearing (6003LLU)	14.36
11	3002-0011	1	Spindle 5/8"-11	35.88
12	3002-0012	1	Bevel Gear	24.09
13	3002-0013	1	Ball Bearing (606ZZ)	12.31
14	3002-0014	1	Bearing Holder	1.55
15	3002-0015	1	Oil Felt	3.07
16	3002-0016	1	Lubricator	1.55
17	3002-0017	1	Housing	109.71
18	3002-0018	1	O-Ring (9.5x1.5)	1.25
19	3002-0019	1	Screw (M12x3T)	9.22
20	3002-0020	1	Retaining Ring (STW-9)	0.82
21	3002-0021	1	Bevel Pinion Gear	24.09
22	3002-0022	1	O-Ring (21.5x1.5)	0.76
23	3002-0023	1	Ball Bearing (6000LLU)	11.79
24	3002-0024	1	Front Bearing Case	34.35
25	3002-0025	1	Spring Pin (2.5x5)	0.76
26	3002-0026	1	Cylinder	68.70
27	3002-0027	1	Vane (4pc set)	24.24
28	3002-0028	1	Key (3x8L)	2.06
29	3002-0029	1	Rotor	61.52
30	3002-0030	1	Rear Bearing Case	28.72
31	3002-0031	1	Ball Bearing (609)	13.84
32	3002-0032	1	Governor Assembly	74.34
33	3002-0033	1	Inlet Guide	32.30
34	3002-0034	1	O-Ring (28.5x2)	0.76
35	3002-0035	1	Nut	27.17
36	3002-0036	1	Rear Body	81.01
37	3002-0037	1	O-Ring (19.8x2.4)	0.76
38	3002-0038	1	Air Inlet	9.22
39	3002-0039	1	Screw	1.55
40	3002-0040	1	O-Ring (3.5x1.5)	0.58
41	3002-0041	1	Throttle Lever	11.79
42	3001-0072	1	Spring Pin (3x20L)	0.58
43	3002-0043	1	Pin	2.57
44	3001-0069	1	Spring	0.53
45	3001-0068	1	Safety Bar	3.34
46	3002-0046	1	Spring	0.82
47	3002-0047	1	Nylon Ball	8.71
48	3002-0048	1	O-Ring (13.5x1.5)	0.83
49	3002-0049	1	Bushing	13.84
50	3002-0050	1	O-Ring (15.5x1.5)	0.51
51	3002-0051	1	Retaining Ring (RTW-20)	0.82
52	3002-0052	1	Pin (4x22.8)	0.82
53	3002-0053	1	O-Ring (27x2)	0.82
54	3002-0054	1	Muffler	7.05
55	3002-0055	1	Exhaust Vent	14.36
56	3002-0056	1	Spring	1.55
57	3002-0057	1	Exhaust Cover	4.62
58	3002-0058	1	Spacer Screw	14.36
59	3002-0059	1	Washer (5.3x10x0.3)	0.83
60	3002-0060	1	Screw (M5x8L)	0.83
61	3001-0015	1	Side Handle	13.44
62	3002-0062	1	Pin Wrench (P:32mm)	14.36
63	3002-0063	1	Double Open End Wrench (32mm / 1")	12.31
64	3002-0064	1	Hex. Wrench (1/4")	1.10
65	AIR-008	1	Rust Inhibitor Oil (8oz / 237ml)	12.43
99	AT005	1	Large Bearing Puller	29.25
99	AT009	1	50-55mm Pin Spanner Wrench (PSP)	35.00
99	AT010	1	Removal Wrench For 3001-0079	86.00
99	AT011	1	Removal Wrench For 3002-0008	138.00

DOCUMENTATION

Safety Data Sheet :	515_Mobile-Velocite-Oil-AIR-008_sds.pdf
Manual :	PSG-125_v1_manual.pdf
Manual :	PSG-125_v2_manual.pdf
Manual :	PSG-125_v3_manual.pdf
Manual :	PSG-125-WCK_manual.pdf
Parts-Schematic :	PSG-125-v1_Parts-Schematic.pdf
Flyer :	PSG-125_flyer.pdf
Flyer :	PSG-125_WetCuttingKit_flyer.pdf
