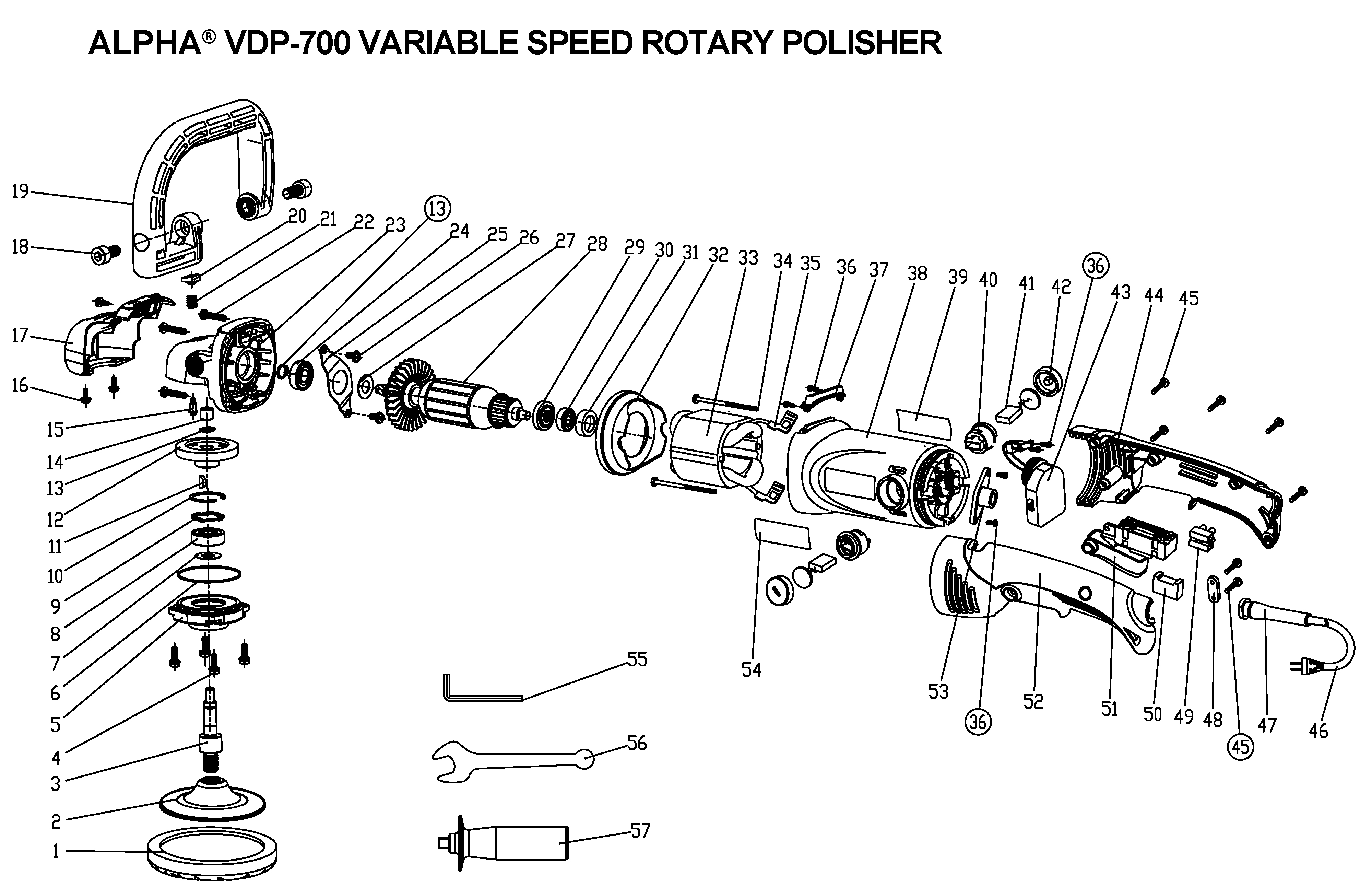

VDP-700 Spare Parts

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
3	210145	1	Output Shaft	13.76
3	210200	1	Output Shaft	12.98
4	210146	1	Screw Combo M5x16	0.08
5	210147	1	Gear Case Cover	20.45
6	210148	1	O-Ring	0.60
7	210149	1	Dust-Proof Washer 12x25x0.5	1.69
8	210150	1	Ball Bearing 6201-2RS	19.96
9	210151	1	Wave Spring Washer	1.69
10	210152	1	Circlips For Holes 32	1.73
11	210153	1	Key 4x13	0.08
12	210154	1	Gear	30.61
13	210155	1	Circlip For Shaft 12	0.20
14	210156	1	Bush	6.59
15	210157	1	Spindle-Lock Pin	1.91
16	210158	1	Screw M5x10	0.08
17	210159	1	Gear Case Plastic Cover	10.76
18	210160	1	Hexagon Screw M10x20	0.49
19	210161	1	C-Handle	13.37
20	210162	1	Spindle-Lock Cap	1.98
21	210163	1	Spindle-Lock Spring	0.70
22	210164	1	Self-Tapping Screw St4.8x20	0.08
23	210165	1	Gear Case	42.48
24	210166	1	Ball Bearing 6001-2RS	21.74
25	210167	1	Bearing Clamp	3.38
26	210168	1	Screw M5x10	0.08
27	210169	1	Bearing Retainer 12x21x1	3.38
28	210170	1	Armature	128.63
28	210201	1	Armature	121.34
29	210171	1	Magnetic Ring 8x28x7	4.60
30	210172	1	Ball Bearing 608-2RZ	21.35
31	210173	1	Rubber Bearing Seat 608	5.28
32	210174	1	Wind Baffle	4.28
33	210175	1	Field Coil	102.40
34	210176	1	Self-Tapping Screw St4.8x65	0.20
35	210178	1	Flag Slot 4.8	CALL
36	210177	1	Self-Tapping Screw St4.9x10	0.08

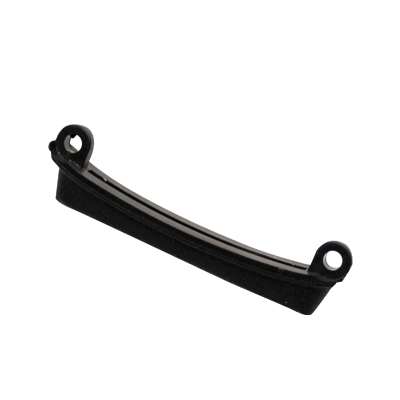

37	210198	1	Support Pad	1.69
38	210199	1	Field Coil Case	22.73
39	210179	1	Data Label	CALL
39	210207	1	Data Label	CALL
40	210180	1	Brush Holder 6.2x13	10.16
41	210181	1	Carbon Brush 6.2x13x15 Set	16.75
41	210205	1	Carbon Brush 2pc	15.80
42	210182	1	Brush Holder Cap	3.38
43	210183	1	Controller Assembly	117.25
43	210203	1	Controller Assembly	110.62
44	210184	1	Rear Hand (Right)	15.14
45	210185	1	Self-Tapping Screw St4.2x16	0.08
46	210186	1	Power Supply Cord	120.16
46	210204	1	Power Supply Cord	113.35
47	210208	1	Cord Jacket	CALL
47	210187	1	Cord Jacket	1.98
48	210188	1	Cord Clamp	0.70
49	210189	1	Wiring Terminal Pa7	0.41
49	210209	1	Capacitor	CALL
50	210190	1	Capacitor	10.16
51	210191	1	Switch	27.32
52	210192	1	Rear Hand (Left)	15.14
53	210193	1	Cord Clamp	1.69
53	210210	1	Builder's Plate	CALL
54	210211	1	Brand Label	CALL
54	210194	1	Brand Label	CALL
55	210195	1	Allen Wrench 8	1.79
56	210196	1	Wrench 17mm	2.40
57	210197	1	Side Handle	5.28

SPARE PARTS

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
3	210145	1	Output Shaft	13.76
3	210200	1	Output Shaft	12.98
4	210146	1	Screw Combo M5x16	0.08
5	210147	1	Gear Case Cover	20.45
6	210148	1	O-Ring	0.60
7	210149	1	Dust-Proof Washer 12x25x0.5	1.69
8	210150	1	Ball Bearing 6201-2RS	19.96
9	210151	1	Wave Spring Washer	1.69
10	210152	1	Circlips For Holes 32	1.73
11	210153	1	Key 4x13	0.08
12	210154	1	Gear	30.61
13	210155	1	Circlip For Shaft 12	0.20
14	210156	1	Bush	6.59
15	210157	1	Spindle-Lock Pin	1.91
16	210158	1	Screw M5x10	0.08
17	210159	1	Gear Case Plastic Cover	10.76
18	210160	1	Hexagon Screw M10x20	0.49
19	210161	1	C-Handle	13.37
20	210162	1	Spindle-Lock Cap	1.98
21	210163	1	Spindle-Lock Spring	0.70
22	210164	1	Self-Tapping Screw St4.8x20	0.08
23	210165	1	Gear Case	42.48
24	210166	1	Ball Bearing 6001-2RS	21.74
25	210167	1	Bearing Clamp	3.38
26	210168	1	Screw M5x10	0.08
27	210169	1	Bearing Retainer 12x21x1	3.38
28	210170	1	Armature	128.63
28	210201	1	Armature	121.34
29	210171	1	Magnetic Ring 8x28x7	4.60
30	210172	1	Ball Bearing 608-2RZ	21.35
31	210173	1	Rubber Bearing Seat 608	5.28
32	210174	1	Wind Baffle	4.28
33	210175	1	Field Coil	102.40
34	210176	1	Self-Tapping Screw St4.8x65	0.20
35	210178	1	Flag Slot 4.8	CALL
36	210177	1	Self-Tapping Screw St4.9x10	0.08
37	210198	1	Support Pad	1.69
38	210199	1	Field Coil Case	22.73
39	210179	1	Data Label	CALL
39	210207	1	Data Label	CALL
40	210180	1	Brush Holder 6.2x13	10.16
41	210181	1	Carbon Brush 6.2x13x15 Set	16.75
41	210205	1	Carbon Brush 2pc	15.80
42	210182	1	Brush Holder Cap	3.38
43	210183	1	Controller Assembly	117.25
43	210203	1	Controller Assembly	110.62
44	210184	1	Rear Hand (Right)	15.14
45	210185	1	Self-Tapping Screw St4.2x16	0.08
46	210186	1	Power Supply Cord	120.16
46	210204	1	Power Supply Cord	113.35
47	210208	1	Cord Jacket	CALL
47	210187	1	Cord Jacket	1.98
48	210188	1	Cord Clamp	0.70
49	210189	1	Wiring Terminal Pa7	0.41
49	210209	1	Capacitor	CALL
50	210190	1	Capacitor	10.16
51	210191	1	Switch	27.32
52	210192	1	Rear Hand (Left)	15.14
53	210193	1	Cord Clamp	1.69
53	210210	1	Builder's Plate	CALL
54	210211	1	Brand Label	CALL
54	210194	1	Brand Label	CALL
55	210195	1	Allen Wrench 8	1.79
56	210196	1	Wrench 17mm	2.40
57	210197	1	Side Handle	5.28
