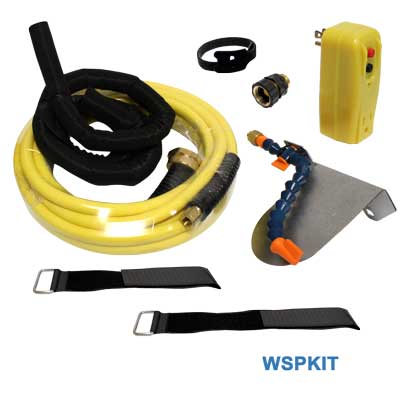

WSPKIT Spare Parts

Click here to view/print a PDF

Back To Product Page

• Spare Parts
• Documentation
• FAQS

Manual :	WSPKIT_v1_manual.pdf
Manual :	WSPKIT_v1220_manual.pdf
Manual :	WSPKIT_v0523_manual.pdf
Parts-Schematic :	WSPKIT_v0523_Parts-Schematic.pdf
Flyer :	WSPKIT_flyer.pdf

SPARE PARTS

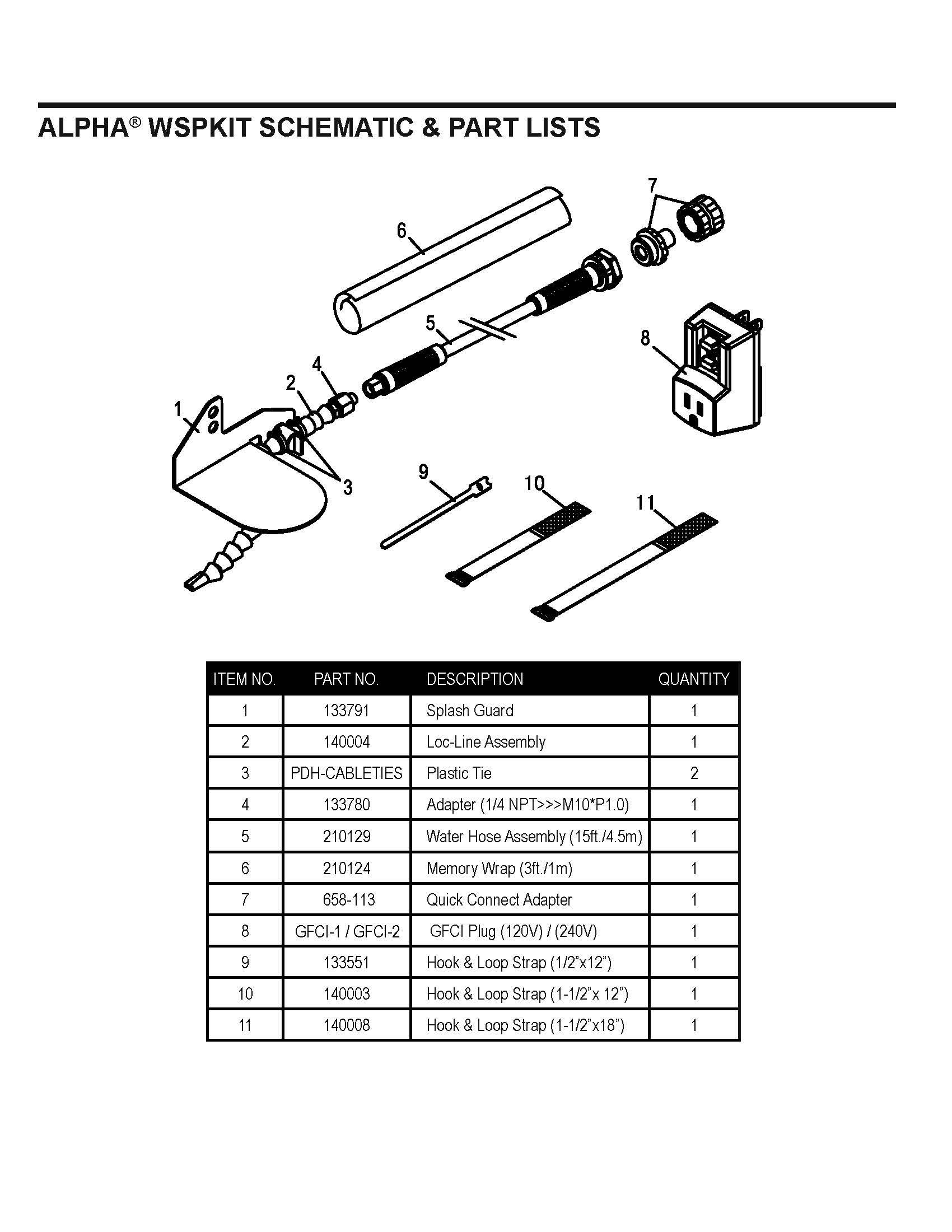

DRAWING NO. PART NO. VERSION DESCRIPTION CAProp65 BUY NOW 1 133791 1 Splash Guard 2 133785 1 Loc-Line Assembly 3 PDH-CABLETIES 1 Plastic Ties 4 133780 1 Adapter (1/4 NPT>>>M10*P1.0) 5 210129 1 Water Hose Assembly (15ft./5m) 6 210124 1 Memory Wrap (3ft./1m) (18mm) 7 658-113 1 Water Quick Coupler with Shut off Valve 8 GFCI-1 1 Ground Fault Circuit Interrupter (15amps) 8 GFCI-2 1 Ground Fault Circuit Interrupter (20amps) 9 133551 1 Hook & Loop Straps 10 140003 1 Hook & Loop Strap 11 140008 1 Hook & Loop Strap (1-1/2”x18”)

DOCUMENTATION

Manual :	WSPKIT_v1_manual.pdf
Manual :	WSPKIT_v1220_manual.pdf
Manual :	WSPKIT_v0523_manual.pdf
Parts-Schematic :	WSPKIT_v0523_Parts-Schematic.pdf
Flyer :	WSPKIT_flyer.pdf
