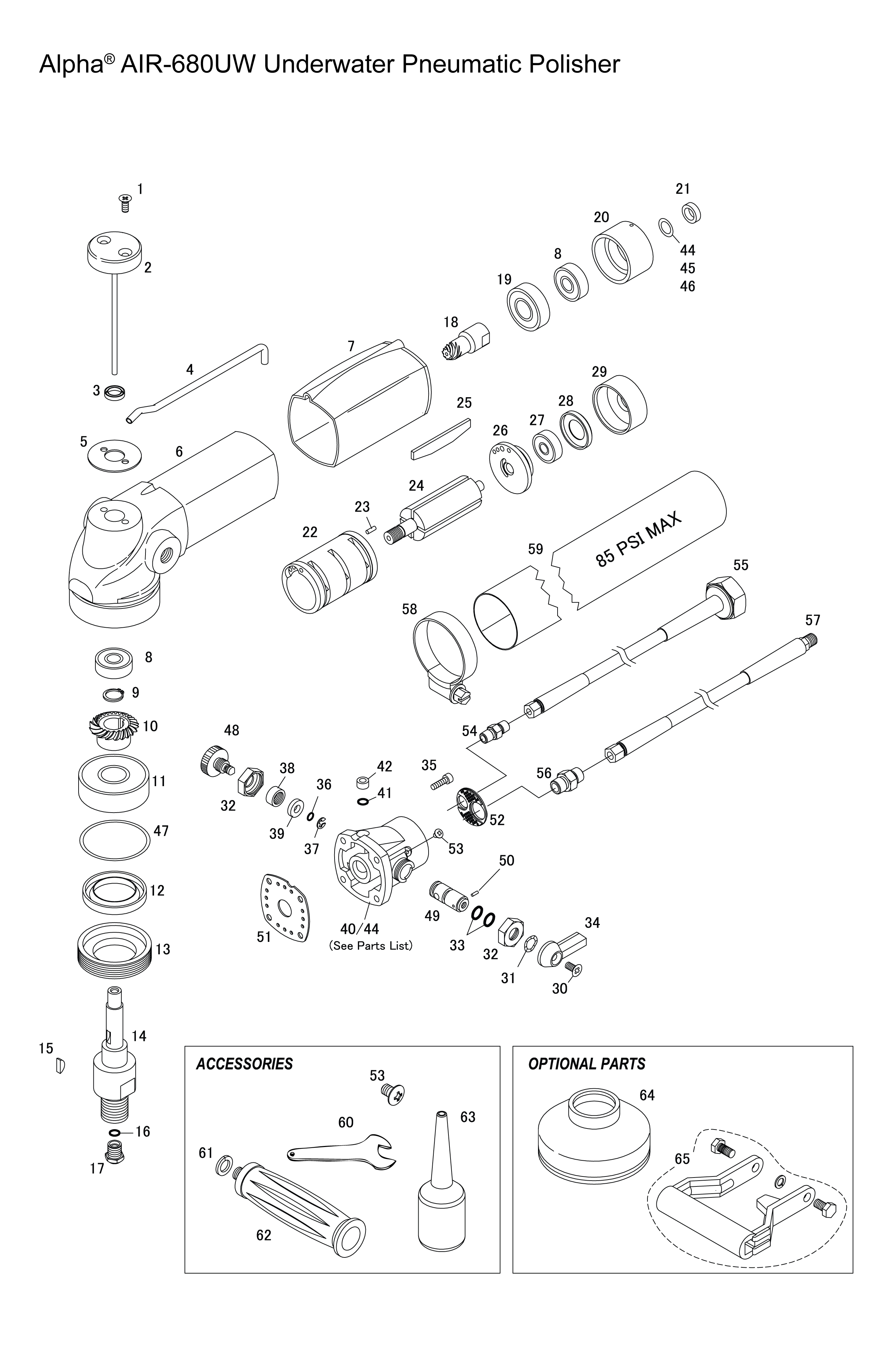

AIR-680UW Spare Parts

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE
1	658-01	2	Screw M4x10	1.81
2	658-92	2	Pipe-Joint Assembly	32.21
3	516-44	2	Oil Seal	6.99
4	658-09	2	W-pipe	7.63
5	658-10	2	Head Packing	1.91
6	658-11	2	Body	87.46
7	658-12	2	Body Cover	19.07
8	516-20	2	Ball Bearing 608ZZ	8.73
9	658-16	2	Snap Ring	1.91
10	658-17	2	Spiral Bevel Gear	45.79
11	516-48	2	Bearing 6302ZZ	12.73
12	516-49	2	Oil Seal	6.99
13	516-50	2	44 Nut	17.52
14	658-93	2	Spindle 5/8"-11 Thread	71.62
15	658-22	2	Woodruff Key	2.28
16	658-23	2	O-Ring (1.7mm x 2.75mm)	1.91
17	658-24	2	Spray Nozzle	9.55
18	658-25	2	Spiral Bevel Pinion	22.87
19	516-18	2	Ball Bearing 6001ZZ	8.73
20	658-28	2	F-Bearing Case	22.87
21	658-29	2	Rotor Spacer	3.81
22	658-30	2	Cylinder (inc. Part No. 658-31)	114.44
23	658-31	2	Spring Pin	1.91
24	658-32	2	Rotor	45.79
25	516-25	2	Vane (4pc set)	27.96
26	516-26	2	R-Bearing Case	35.00
27	516-27	2	Bearing 626ZZ	8.73
28	516-28	2	Bearing Cap	5.26
29	658-37	2	Air Inlet Case	5.72
30	658-43	2	Screw M4x12	1.81
31	658-45	2	Wave Washer	2.30
32	658-46	2	Nut M14	9.02
33	658-47	2	O-Ring (1.7mm x 6.75mm)	2.82
34	658-50	2	Valve Lever	22.87
35	658-51	2	Screw M4x15	2.10
36	658-64	2	O-Ring (1.0mm x 3.0mm)	1.88
37	658-65	2	Retaining Ring E-Style	2.27
38	658-107	2	M8 Nut	9.32
39	658-67	2	Washer 05	3.78
40	658-94	2	Endcase Assembly (inc. Part No. 658-72, 73, 91)	85.86
41	658-72	2	O-Ring (1.9mm x 3.8mm)	1.76
42	658-73	2	Bushing 07	2.71
43	658-96	2	Complete Endcase Assembly	155.18
44	658-80	2	Shim (0.10mm)	1.01
45	658-81	2	Shim (0.03mm)	1.01
46	658-82	2	Shim (0.05mm)	1.01
47	658-84	2	Shim (0.20mm)	2.49
48	658-106	1	Water Valve (inc. Part No. 658-108)	29.84
49	658-87	2	A-Valve 4.0mm (inc. Part No. 658-88)	26.36
50	658-88	2	Needle Pin	2.05
51	658-89	2	Body Gasket (req. Part No. 658-90)	5.73
52	658-90	2	Silencer (req. Part No. 658-89)	11.50
53	658-91	2	Screw (w/O-Ring Seal (1pc in tool + 1 spare))	2.27
54	1030-1020	2	Male Union for Water Hose Fitting	4.62
55	1030-0003	2	Water Hose Assembly (15ft / 4.5m)	42.50
56	1030-1021	2	Male Union for Air Hose Fitting	4.94
57	1030-0002	2	Air Hose Assembly (15ft / 4.5m)	34.50
58	1030-1104	2	Hose Clamp	2.67
59	658-95	2	Exhaust Hose	16.23
60	1030-1103	2	Double Open End Wrench (19mm/22mm)	13.96
61	658-13	2	Spring Washer M10	1.91
62	658-14	2	Side Handle	19.07
64	658-112	2	Splash Guard	6.97
65	1030-0004	3	C-Shaped Handle	41.39
997	ST055	1	M44-Nut Wrench	61.60
99	114027	1	27' Flexible Vacuum Hose 1-1/4"	36.55
99	658-113	1	Water Quick Coupler with Shut off Valve	20.12
99	AIR-008	1	Rust Inhibitor Oil (8oz / 237ml)	12.43
100	1030-0010	1	20' Air Hose for AIR-680/830/850	37.75
100	1030-0011	1	20' Water Hose for AIR-680/830/850	45.90
100	1030-0012	1	25' Air Hose for AIR-680/830/850	41.00
100	1030-0013	1	25' Water Hose for AIR-680/830/850	49.30
100	1030-0014	1	30' Air Hose for AIR-680/830/850	44.50
100	1030-0015	1	30' Water Hose for AIR-680/830/850	52.70
100	1030-0016	1	35' Air Hose for AIR-680/830/850	47.80
100	1030-0017	1	35' Water Hose for AIR-680/830/850	52.70
100	1030-0018	1	40' Air Hose for AIR-680/830/850	51.25
100	1030-0019	1	40' Water Hose for AIR-680/830/850	59.50

SPARE PARTS

DRAWING NO.	PART NO.	VERSION	DESCRIPTION	PRICE$
1	658-01	2	Screw M4x10	1.81
2	658-92	2	Pipe-Joint Assembly	32.21
3	516-44	2	Oil Seal	6.99
4	658-09	2	W-pipe	7.63
5	658-10	2	Head Packing	1.91
6	658-11	2	Body	87.46
7	658-12	2	Body Cover	19.07
8	516-20	2	Ball Bearing 608ZZ	8.73
9	658-16	2	Snap Ring	1.91
10	658-17	2	Spiral Bevel Gear	45.79
11	516-48	2	Bearing 6302ZZ	12.73
12	516-49	2	Oil Seal	6.99
13	516-50	2	44 Nut	17.52
14	658-93	2	Spindle 5/8"-11 Thread	71.62
15	658-22	2	Woodruff Key	2.28
16	658-23	2	O-Ring (1.7mm x 2.75mm)	1.91
17	658-24	2	Spray Nozzle	9.55
18	658-25	2	Spiral Bevel Pinion	22.87
19	516-18	2	Ball Bearing 6001ZZ	8.73
20	658-28	2	F-Bearing Case	22.87
21	658-29	2	Rotor Spacer	3.81
22	658-30	2	Cylinder (inc. Part No. 658-31)	114.44
23	658-31	2	Spring Pin	1.91
24	658-32	2	Rotor	45.79
25	516-25	2	Vane (4pc set)	27.96
26	516-26	2	R-Bearing Case	35.00
27	516-27	2	Bearing 626ZZ	8.73
28	516-28	2	Bearing Cap	5.26
29	658-37	2	Air Inlet Case	5.72
30	658-43	2	Screw M4x12	1.81
31	658-45	2	Wave Washer	2.30
32	658-46	2	Nut M14	9.02
33	658-47	2	O-Ring (1.7mm x 6.75mm)	2.82
34	658-50	2	Valve Lever	22.87
35	658-51	2	Screw M4x15	2.10
36	658-64	2	O-Ring (1.0mm x 3.0mm)	1.88
37	658-65	2	Retaining Ring E-Style	2.27
38	658-107	2	M8 Nut	9.32
39	658-67	2	Washer 05	3.78
40	658-94	2	Endcase Assembly (inc. Part No. 658-72, 73, 91)	85.86
41	658-72	2	O-Ring (1.9mm x 3.8mm)	1.76
42	658-73	2	Bushing 07	2.71
43	658-96	2	Complete Endcase Assembly	155.18
44	658-80	2	Shim (0.10mm)	1.01
45	658-81	2	Shim (0.03mm)	1.01
46	658-82	2	Shim (0.05mm)	1.01
47	658-84	2	Shim (0.20mm)	2.49
48	658-106	1	Water Valve (inc. Part No. 658-108)	29.84
49	658-87	2	A-Valve 4.0mm (inc. Part No. 658-88)	26.36
50	658-88	2	Needle Pin	2.05
51	658-89	2	Body Gasket (req. Part No. 658-90)	5.73
52	658-90	2	Silencer (req. Part No. 658-89)	11.50
53	658-91	2	Screw (w/O-Ring Seal (1pc in tool + 1 spare))	2.27
54	1030-1020	2	Male Union for Water Hose Fitting	4.62
55	1030-0003	2	Water Hose Assembly (15ft / 4.5m)	42.50
56	1030-1021	2	Male Union for Air Hose Fitting	4.94
57	1030-0002	2	Air Hose Assembly (15ft / 4.5m)	34.50
58	1030-1104	2	Hose Clamp	2.67
59	658-95	2	Exhaust Hose	16.23
60	1030-1103	2	Double Open End Wrench (19mm/22mm)	13.96
61	658-13	2	Spring Washer M10	1.91
62	658-14	2	Side Handle	19.07
64	658-112	2	Splash Guard	6.97
65	1030-0004	3	C-Shaped Handle	41.39
997	ST055	1	M44-Nut Wrench	61.60
99	114027	1	27' Flexible Vacuum Hose 1-1/4"	36.55
99	658-113	1	Water Quick Coupler with Shut off Valve	20.12
99	AIR-008	1	Rust Inhibitor Oil (8oz / 237ml)	12.43
100	1030-0010	1	20' Air Hose for AIR-680/830/850	37.75
100	1030-0011	1	20' Water Hose for AIR-680/830/850	45.90
100	1030-0012	1	25' Air Hose for AIR-680/830/850	41.00
100	1030-0013	1	25' Water Hose for AIR-680/830/850	49.30
100	1030-0014	1	30' Air Hose for AIR-680/830/850	44.50
100	1030-0015	1	30' Water Hose for AIR-680/830/850	52.70
100	1030-0016	1	35' Air Hose for AIR-680/830/850	47.80
100	1030-0017	1	35' Water Hose for AIR-680/830/850	52.70
100	1030-0018	1	40' Air Hose for AIR-680/830/850	51.25
100	1030-0019	1	40' Water Hose for AIR-680/830/850	59.50
