BMP-700 Spare Parts

Click here to view/print a PDF

Back To Product Page

• Spare Parts
• Documentation
• FAQS

Manual :	BMP-700_v0725_manual.pdf

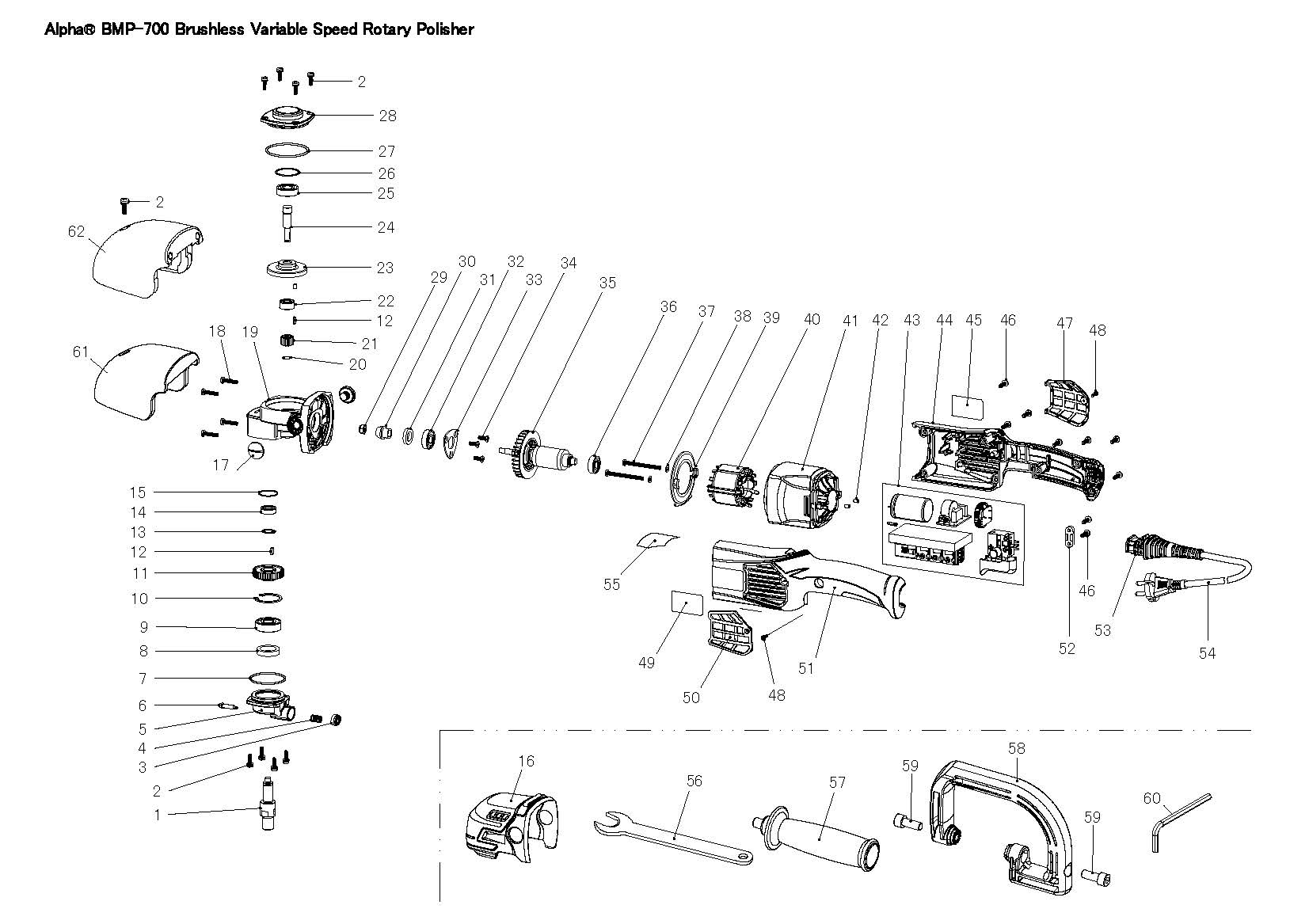

Parts-Schematic :	BMP-700_v0526_Parts-Schematic.pdf
Flyer :	BMP-700_flyer.pdf

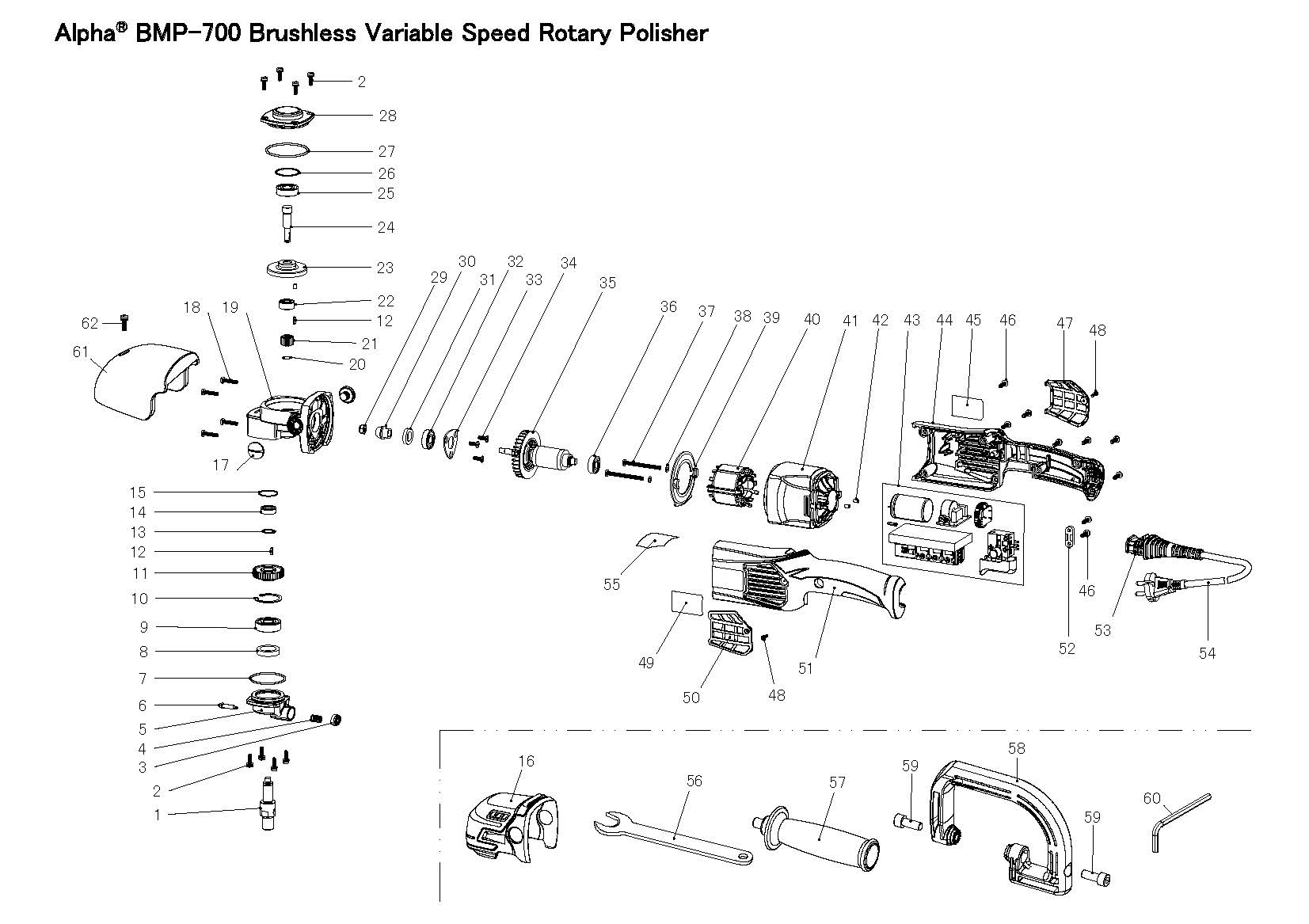

SPARE PARTS

DRAWING NO. PART NO. VERSION DESCRIPTION CAProp65 BUY NOW 1 220000 1 Output Shaft (5/8"-11 Unc) 2 220001 1 Screw M4x14 3 220002 1 Lock Pin Cap 4 220003 1 Return Spring 5 220004 1 Gear Case Cover 6 220005 1 Spindle Lock Pin 7 220006 1 O-Ring 42x1.5 8 220007 1 Oil Lip Seal 20x28x6 9 220008 1 Ball Bearing 6201-2RS 10 210152 1 Circlips For Holes 32 11 220009 1 Gear 12 220010 1 Flat Key 3x3x8 13 210155 1 Circlip For Shaft 12 14 220011 1 Ball Bearing 607-2Z 15 220012 1 O-Ring 21x1.2 16 220013 1 Plastic Case Cover 17 220014 1 Plastic Screw M10x8 18 220015 1 Screw ST4.2x30 19 220016 1 Gear Case 20 220017 1 Wire Retaining Ring For Shaft 7 21 220018 1 Gear 22 220019 1 Ball Bearing 7x19x10 23 220020 1 Gear 24 220021 1 Output Shaft 25 220022 1 Ball Bearing 6001-2Z

123Next »

DOCUMENTATION

Manual :	BMP-700_v0725_manual.pdf
Parts-Schematic :	BMP-700_v0526_Parts-Schematic.pdf
Flyer :	BMP-700_flyer.pdf

FAQS

Currently, there are no FAQs available for this product.....
