    • Features
    • Produces Straight and True Cuts Everytime
    • Most Powerful Motor in Its Class
    • Powers Through Hard Dense Materials, Such As, Porcelain, Hard Red Granites and Engineered Stone
    • Water-Feed Supply Eliminates The Harmful Dust Particles
    • Base Plate Allows Guides To Be Used in Multiple Ways
    • The Perfect Tile Cutter
    • Included Self-Stick Felt Strips Protects The Work Surface From Scratches
    • Built-In GFCI (Ground Fault Circuit Interrupter)
    • Great for Use with Curve Cutting Blades
    • One Year Tool Warranty*
    Videos

    Features

    • Produces Straight and True Cuts Everytime
    • Most Powerful Motor in Its Class
    • Powers Through Hard Dense Materials, Such As, Porcelain, Hard Red Granites and Engineered Stone
    • Water-Feed Supply Eliminates The Harmful Dust Particles
    • Base Plate Allows Guides To Be Used in Multiple Ways
    • The Perfect Tile Cutter
    • Included Self-Stick Felt Strips Protects The Work Surface From Scratches
    • Built-In GFCI (Ground Fault Circuit Interrupter)
    • Great for Use with Curve Cutting Blades
    • One Year Tool Warranty*

    Videos

    Find a dealer
    • Specifications
    • Description
    • Documentation
    • FAQS
    • Additional
    • Buy Now

    SPECIFICATIONS

    DESCRIPTION

    DOCUMENTATION

    Manual : AWS-125/225
    Reference : AWS-125_HelpfulHints
    Reference : AWS-125 How to Use
    Maint Card : AWS-110/AWS-125 Maintenance Card
    Parts-Schematic : AWS-125/225 Parts/Schematic

    FAQS

    Question : How can I get the parts list and schematic for the AWS-125/225?

    Answer : Visit our website at www.alpha-tools.com or call at 800-648-7229.

    Question : What is the ideal material I can cut using the AWS-125/225 Wet Stone Cutter?

    Answer : The Alpha® AWS-125/225 Wet Stone cutter is ideal for those working with granite, marble, engineered stone, crystallized glass, concrete, masonry and glass.

    Question : What blade arbor size is required for use of the Alpha® AWS-125/225 Wet Stone Cutter?

    Answer : The arbor size required is 7/8”.

    Question : Can I use the Alpha® Wet Stone Cutter for dry applications?

    Answer : Yes. This saw was specially designed for wet cutting applications since it has insulated electrical parts and an in-line GFCI; however; it can also be used for dry applications.

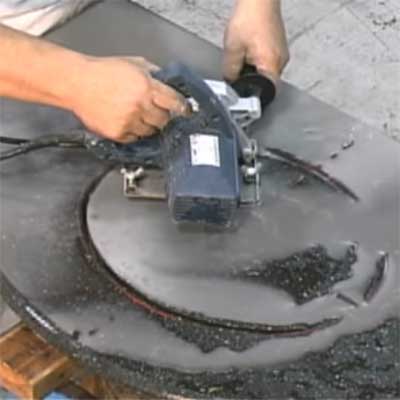

    Question : Can I use the AWS-125/225 Wet Stone Cutter for cutting sink bowls for 3cm material?

    Answer : Yes. We recommend using our 5” Alpha® Contour Blade Series for this application. Step-cutting is recommended for this application.

    Question : What is the warranty for the AWS-125/225?

    Answer : Alpha® warrants the AWS-125/225 for a period of 180 days from the date of original retail purchase (proof of purchase is required) and is limited to the repair or replacement of parts without charge.

    Question : If my AWS-125/225 breaks down, whom should I contact for repair?

    Answer : You can contact the dealer where you purchased the tool or you can send it directly to Alpha® for repair.

    Question : What can I do if my AWS-125/225 breaks down and I need to complete the job immediately?

    Answer : First check the carbon brushes, if they appear worn out, replace them with genuine Alpha® brushes. Test the AWS-125/225 before attempting to resume cutting. If the problem still persists, contact the Tool Repair Department at Alpha® for further assistance.

    Question : Is there a maintenance program for the AWS-125/225?

    Answer : No. Replacement of the carbon brushes on a periodic basis is the first step to any type of maintenance. If complications begin to arise during cutting, or if unusual noises occur, then we recommend that you send your tool for maintenance. Our Tool Repair Department will evaluate the tool and provide an estimate for your approval before performing any work. The sooner a tool is checked after noticing an abnormal noise, the less likely there will be a significant amount of damage.

    Question : What kind of blades can I use on my AWS-125/225?

    Answer : Concrete Profiling Wheel: CPE445 o Contour for Granite: CCB005, CCB045 o Contour for Marble: CCM005 o Contour for Porcelain: CCP005 o Crack Chasing Wheel: DCC478 o Eclipse: DEE005, DEE045 o Hot-Rod (Granite) HR03A+, HT03A+, HQ03A+, HW03A+ o Hot-Rod (Marble) HM03A+, HS03A+ o Katana: DPT125, DPT115 o Libero: DL05S, DL05A+ o Numero Uno: GM05S, GM05A+ o Plus: DA05S, DA05A+ o Porcellana: PT05S, PT04A+ o Sonic: TS05AL, TS05S o Tuck Point: TP04AP o Vetro: WG0438

    Question : What is the metal attachment that comes with the saw used for?

    Answer : This item is called the Guide Ruler or TT Ruler Guide. It is designed to enhance the cutting performance of the AWS-125/225 by providing a guide that will work against the straight edge of the stone or a rail of some type clamped to the stone surface.

    Question : Why does the TT Ruler Guide have two extension arms?

    Answer : Most other manufacturers on the market only have one extension arm. While one extension provides the ability for the saw to cut in a straight line, some harder applications tend to make the saw pull sideways. The second extension prevents this sideways movement and provides the operator with a sturdier means to accomplish a straight cut.

    Question : During cutting, I noticed that the blade wants to pull away from the cut. How can I prevent this?

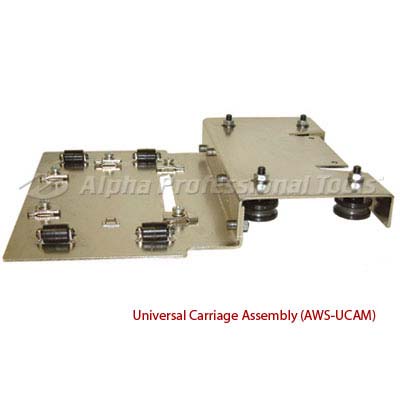

    Answer : First use either the TT Guide Ruler provided with the AWS-125/225 Wet Stone Cutter or you can use the Alpha® Guide Rail System with your AWS-125/225 Wet Stone Cutter attached. Secondly, before you begin to cut, check the condition of the blade. If the diamonds are glazed, the blade will not perform regardless of the equipment you use it on. Lastly, don't force the blade to cut. Apply slow even pressure to allow the diamonds in the blade time to cut for the best cut. For 1-1/4 " stone, step-cutting is a better method than a single pass.

    Question : What is the RPM of the AWS-125/225 Wet Stone Cutter?

    Answer : RPM of the AWS-125/225 is 12,000.

    Question : The GFCI is tripping frequently. What I can I do?

    Answer : If the GFCI is tripping frequently, there could be several problems. 1. Water is getting inside the stone cutter. Dry the tool with compressed air. 2. The voltage drops due to sharing the same power source in a work area. 3. You are applying too much force to the tool. Back off on the pressure. 4. Contact Alpha® - tool repair for further advice. 5. You may have a loose outlet. Make sure the power cord plug is tightly inserted in the power outlet.

    Question : There are two felt strips supplied with my AWS-125/225 Wet Stone Cutter, what are they used for?

    Answer : You can attach these two felt strips to the bottom of the base plate to prevent any possible scratching of the material. With out these felt strips, the base plate would slide directly on the surface of the material. Felt strips are highly recommended for glass cutting applications.

    Additional

    PartNoWeight (Packaged)UPS CodePackage DimensionsCommodity CodeCountry Of Origin
    AWS-12514.2074917362003413.5in x 9.5in x 13in8467.22.0020China
    AWS-22514.2074917362004113.5in x 9.5in x 13in8464.10.0100China

    Buy Now

    PART NO.DESCRIPTIONPRICE (USD)WARNINGBUY NOW
    AWS-125AWS-125 Wet Stone Cutter 5" 110VCALL
    WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
    AWS-225AWS-225 Wet Stone Cutter 5" 220VCALL
    WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
